NovOSC

reinauer·novOSC

NovOSC PCB layout, top view — open source board by reinauer

About the NovOSC PCB

NovOSC is an open source PCB design by reinauer, published on GitHub. It is a 2-layer board measuring 21.2 × 13.2 mm, with 2 components from 2 distinct parts.

It belongs with the retro computing designs in this gallery.

From the project

DIP14/DIP8 adapter for SMD oscillators in retro computer systems

This project lets you use SMD ocillators on old iron like Amiga computers.

Check out the Amiga Technology blog for more information.

You can order this project on PCBWay or on OSHPARK

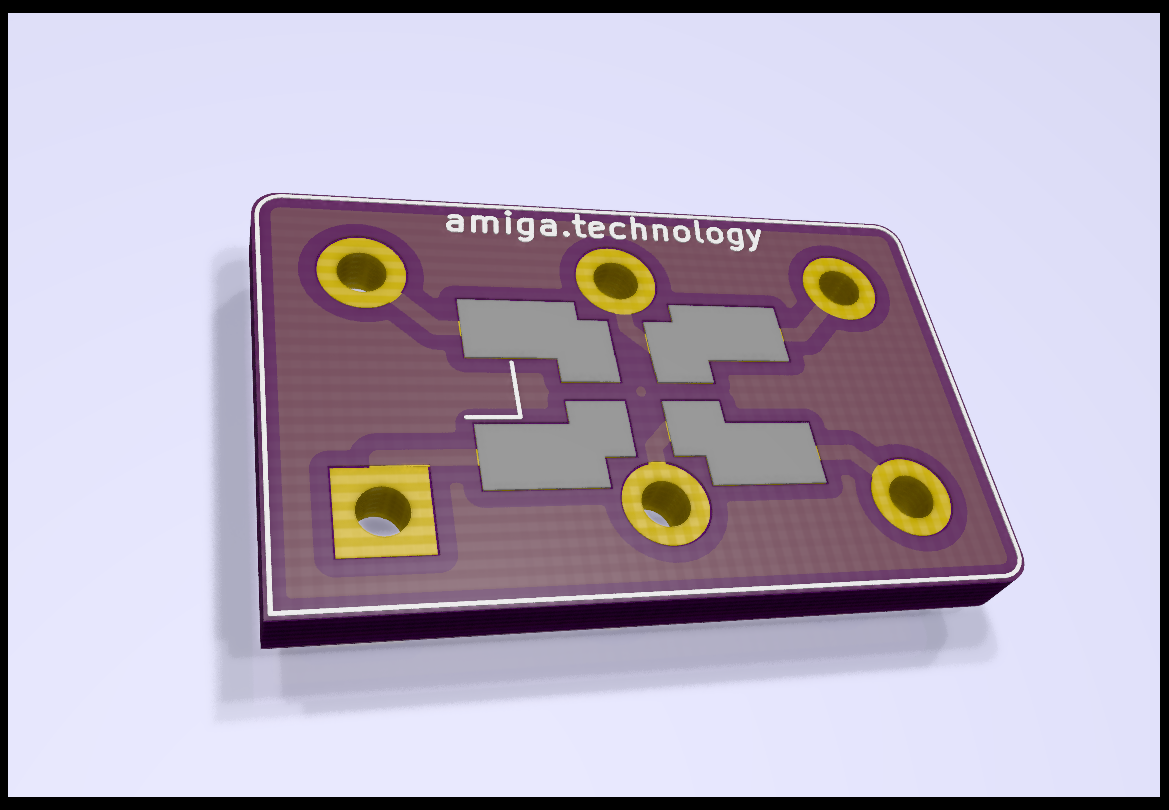

NovOSC, from the project README
From the project README

NovOSC bill of materials (BOM)

2 components, 2 distinct parts.

QtyPartRefs
1
Oscillator-DIP14
X1
1
Oscillator_SMD_4Pin_7.0x5.0mm
X2

NovOSC design files

The KiCad project lives in the reinauer/novOSC repository on GitHub; these links point at the commit this page was built from.

NovOSC: common questions

How big is the NovOSC PCB?

The NovOSC measures 21.2 × 13.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the NovOSC?

2 components, from 2 distinct parts. The full bill of materials is listed on this page.

Where can I download the NovOSC design files?

From the reinauer/novOSC repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the NovOSC design in my own project?

The repository has no license, so all rights stay with reinauer. Use it as a reference, and ask the author before reusing the design.
