USB-LiDAR-VL53L9 PCB layout, top view — open source STM32 board by RemiFM
Simulate this board

About the USB-LiDAR-VL53L9 PCB

USB-LiDAR-VL53L9 is an open source STM32 PCB design by RemiFM, published on GitHub under the MIT license. It is a 6-layer board measuring 34 × 30.2 mm, with 68 components from 35 distinct parts.

Its main chip is the STM32C552KEU6, from the STM32 family. Other key parts include the VL53L9CX, LSM6DSV, TLV73312PDBV, TLV73318PDBV and TLV73328PDBV. By type, the board carries 33 capacitors, 16 resistors, 12 ICs, 3 diodes, 2 inductors and 1 crystal.

It belongs with the sensors and robotics & motion designs in this gallery.

From the project

USB accessory device with VL53L9 Time of Flight sensor (dToF 3D LiDAR) & 6-axis IMU

A compact and low-cost USB device with integrated LiDAR sensor and IMU. This hardware node packages STMicroelectronics' VL53L9 advanced direct Time-of-Flight (dToF) matrix LiDAR with a 6-axis IMU into a plug-and-play USB-C device. Designed for mobile robotics, micro-UAVs, and academic SLAM research. The hardware is designed in KiCad 10.

Per the VL53L9CX datasheet (DS14879, Table 2), the I3C interface is specified for a 12.5 MHz bus clock and a 12.5 Mbps output data rate. Full resolution is hard-limited to 30 Hz. Two pre-configured profiles are available:

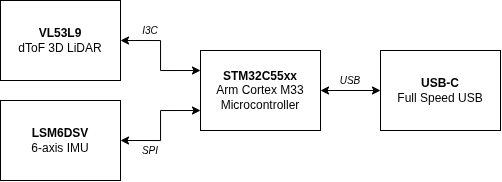

USB-LiDAR-VL53L9, from the project README
From the project README

Main components on the USB-LiDAR-VL53L9

USB-LiDAR-VL53L9 bill of materials (BOM)

68 components, 35 distinct parts.

QtyPartRefs
1
VL53L9CX
STMicroelectronics
U1
1
STM32C552KEU6
STMicroelectronics
U2
1
LSM6DSV
STMicroelectronics
U3
1
TLV73312PDBV
Texas Instruments
U4
1
TLV73318PDBV
Texas Instruments
U5
1
TLV73328PDBV
Texas Instruments
U6
1
LM3670MF-3.3
Texas Instruments
U7
1
LSF0102
Texas Instruments
U8
1
USBLC6-2SC6
STMicroelectronics
U10
1
SN74AXC1T45DCKR
Texas Instruments
U12
2
74LVC1T45
Diodes Incorporated
U13, U14
1
16MHz
EPSON
Y1
1
USB4106
GCT
J1
1
DF2B7AE,H3F
Toshiba Semiconductor and Storage
D2
1
LED RED
Lite-On Inc.
D3
1
LED GREEN
Lite-On Inc.
D4
1
1k@100MHz
Murata Electronics
FB1
1
4.7µH
Murata Electronics
L1
8
1µF
YAGEO
C1, C2, C3, C4, C5, C6, C9, C25
5
4.7µF
YAGEO
C7, C10, C11, C16, C24
Show 15 more
QtyPartRefs
1
47µF
YAGEO
C8
13
100nF
YAGEO
C12, C15, C21, C22, C23, C26, C27, C30 +5
2
10µF
YAGEO
C13, C14
2
10pF
YAGEO
C18, C19
1
2.2µF
YAGEO
C20
1
4.7nF
KEMET
C36
1
200k
YAGEO
R1
2
2k2
YAGEO
R2, R3
2
1k
YAGEO
R4, R5
1
100k
YAGEO
R6
4
10k
YAGEO
R8, R11, R16, R17
2
5k1
YAGEO
R9, R10
2
100R
YAGEO
R12, R13
1
22R
YAGEO
R15
1
1M
YAGEO
R23

USB-LiDAR-VL53L9 design files

The KiCad project lives in the RemiFM/USB-LiDAR-VL53L9 repository on GitHub; these links point at the commit this page was built from.

USB-LiDAR-VL53L9: common questions

What microcontroller does the USB-LiDAR-VL53L9 use?

The USB-LiDAR-VL53L9 is built around the STM32C552KEU6, from the STM32 family.

How big is the USB-LiDAR-VL53L9 PCB?

The USB-LiDAR-VL53L9 measures 34 × 30.2 mm, has 6 copper layers and is 1.6 mm thick.

How many components are on the USB-LiDAR-VL53L9?

68 components, from 35 distinct parts. The full bill of materials is listed on this page.

Where can I download the USB-LiDAR-VL53L9 design files?

From the RemiFM/USB-LiDAR-VL53L9 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the USB-LiDAR-VL53L9 design in my own project?

Yes, under the terms of its MIT license, which RemiFM chose for the repository.

Can I test firmware for the USB-LiDAR-VL53L9 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
