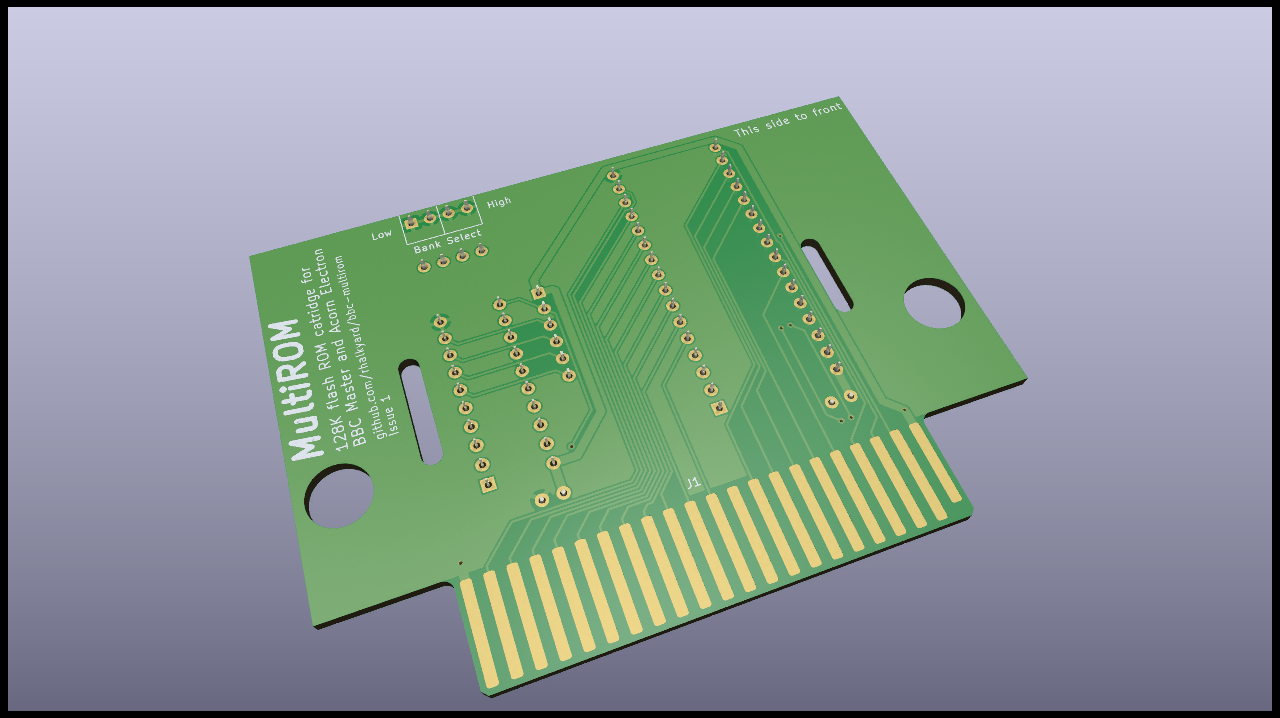

Bbc multirom
About the Bbc multirom PCB
Bbc multirom is an open source PCB design by rhalkyard, published on GitHub. It is a 2-layer board measuring 85.1 × 62.9 mm, with 7 components from 6 distinct parts.
Other key parts include the SST39SF010 and GAL16V8. By type, the board carries 2 ICs, 2 capacitors, 1 connector, 1 switch and 1 resistor.
From the project
A low-cost BBC Master / Electron ROM cartridge
There are plenty of perfectly-good options for building ROM cartridges for the BBC Master and Acorn Electron Plus One. However, I am a stubborn git and enjoy reinventing the wheel for fun, so I decided to come up with my own take on the concept.
Rather than use the 27x and 28x series (E)EPROMS that were used Back In The Day, MultiROM uses a NOR Flash IC, the SST39SF010A. This part is much cheaper and more readily available than EEPROMs, but can still be obtained as a through-hole part for easy DIY assembly. Additionally, it offers more capacity (a whopping one megabit!), which MultiROM uses…
Main components on the Bbc multirom
Bbc multirom bill of materials (BOM)
7 components, 6 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SST39SF010 | DIP-32_W15.24mm | U1 |
| 1 | GAL16V8 | DIP-20_W7.62mm | U2 |
| 1 | Conn_02x22_Row_Letter_First | bbc-master-acorn-electron-cartridge | J1 |
| 1 | SW_DIP_x04 | SW_DIP_SPSTx04_Piano_10.8x11.72mm_W7.62mm_P2.54mm | SW1 |
| 2 | 0.1uF | C_Disc_D3.0mm_W1.6mm_P2.50mm | C1, C2 |
| 1 | 10K | R_Array_SIP6 | RN1 |
Bbc multirom design files
The KiCad project lives in the rhalkyard/bbc-multirom repository on GitHub; these links point at the commit this page was built from.
- Layoutpcb/MultiROM.kicad_pcb
- Schematicpcb/MultiROM.kicad_sch
Bbc multirom: common questions
How big is the Bbc multirom PCB?
The Bbc multirom measures 85.1 × 62.9 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Bbc multirom?
7 components, from 6 distinct parts. The full bill of materials is listed on this page.
Where can I download the Bbc multirom design files?
From the rhalkyard/bbc-multirom repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Bbc multirom design in my own project?
The repository has no license, so all rights stay with rhalkyard. Use it as a reference, and ask the author before reusing the design.
