PL18-ELRS-Module
About the PL18-ELRS-Module
PL18-ELRS-Module is an open source PCB design by richardclli, published on GitHub under the MIT license. It is a 2-layer board measuring 26.2 × 45.5 mm, with 8 components from 6 distinct parts.
Other key parts include the WS_ESP32S3_Tiny and HF200. By type, the board carries 2 ICs, 2 diodes, 2 resistors, 1 connector and 1 switch.
It belongs with the rf & radio designs in this gallery.
From the project

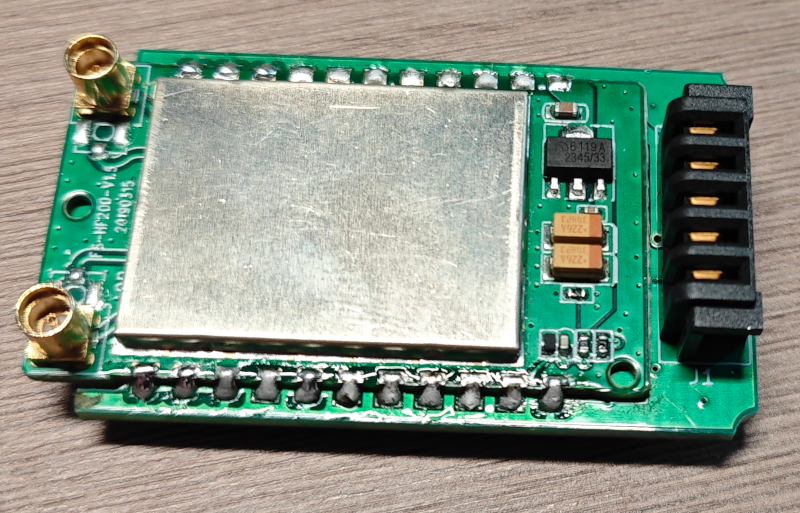

A DIY internal ExpressLRS transmitter module for the Flysky Paladin PL18 radio, repurposing the stock FRM301 module's casing and RF module.
A DIY internal ExpressLRS transmitter module for the Flysky Paladin PL18 radio, repurposing the stock FRM301 module's casing and RF module.
The Flysky PL18 ships with the FRM301 external TX module. This project replaces the FRM301's internal PCB with a custom carrier board that combines a Waveshare ESP32-S3-Tiny as the protocol bridge and the FRM301's HF200 RF module as the 2.4GHz ExpressLRS frontend. The result is a fully-featured, drop-in ExpressLRS transmitter module that fits the existing module bay and communicates with the radio over its 5-pin SPORT port.
Main components on the PL18-ELRS-Module
PL18-ELRS-Module bill of materials (BOM)
8 components, 6 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | WS_ESP32S3_Tiny | WS_ESP32S3_Tiny | U1 |
| 1 | HF200 | HF200-SMT | U2 |
| 1 | PL18 | DS-B01F-A-S2 | J1 |
| 1 | SW_Push | SW_Push_3.2x4.2 | SW1 |
| 2 | WS2812B-2020 | LED_WS2812B-2020_PLCC4_2.0x2.0mm | D1, D2 |
| 2 | 10k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R1, R2 |
PL18-ELRS-Module design files
The KiCad project lives in the richardclli/PL18-ELRS-Module repository on GitHub; these links point at the commit this page was built from.
- LayoutPL18_ELRS.kicad_pcb
- SchematicPL18_ELRS.kicad_sch
PL18-ELRS-Module: common questions
How big is the PL18-ELRS-Module?
The PL18-ELRS-Module measures 26.2 × 45.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the PL18-ELRS-Module?
8 components, from 6 distinct parts. The full bill of materials is listed on this page.
Where can I download the PL18-ELRS-Module design files?
From the richardclli/PL18-ELRS-Module repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the PL18-ELRS-Module design in my own project?
Yes, under the terms of its MIT license, which richardclli chose for the repository.
