Arduino nano clone

riteshh27·arduino-nano-clone·hardware/nano.kicad_pcb

Arduino nano clone PCB layout, top view — open source AVR/Arduino board by riteshh27

About the Arduino nano clone PCB

Arduino nano clone is an open source AVR/Arduino PCB design by riteshh27, published on GitHub. It is a 2-layer board measuring 54 × 24.6 mm, with 33 components from 18 distinct parts.

Its main chip is the ATmega328P-A, from the AVR/Arduino family. Other key parts include the LM1117MP-5.0 and FT232RL. By type, the board carries 11 capacitors, 7 resistors, 4 LEDs, 3 ICs, 3 connectors and 1 crystal.

It belongs with the usb & debug tools designs in this gallery.

From the project

KiCad project for an Arduino Nano clone (ATmega328P + FT232RL USB-serial)

An open-source hardware clone of the Arduino Nano, designed in KiCad 10. Based on the ATmega328P microcontroller with an FTDI FT232RL for USB-to-serial, in the standard Nano form factor with a Mini-USB connector.

- MCU: ATmega328P-A (TQFP-32) - USB-Serial: FTDI FT232RL - USB connector: USB-B Mini - Power: LM1117MP-5.0 regulator, VIN/5V/VUSB power paths with power-good LED - Programming: ICSP header, auto-reset via DTR - I/O: Full Nano-compatible pinout (D0–D13, A0–A7, VIN, 5V, 3V3, GND, RESET, AREF) - Indicators: Power LED (green) and RX/TX activity LEDs

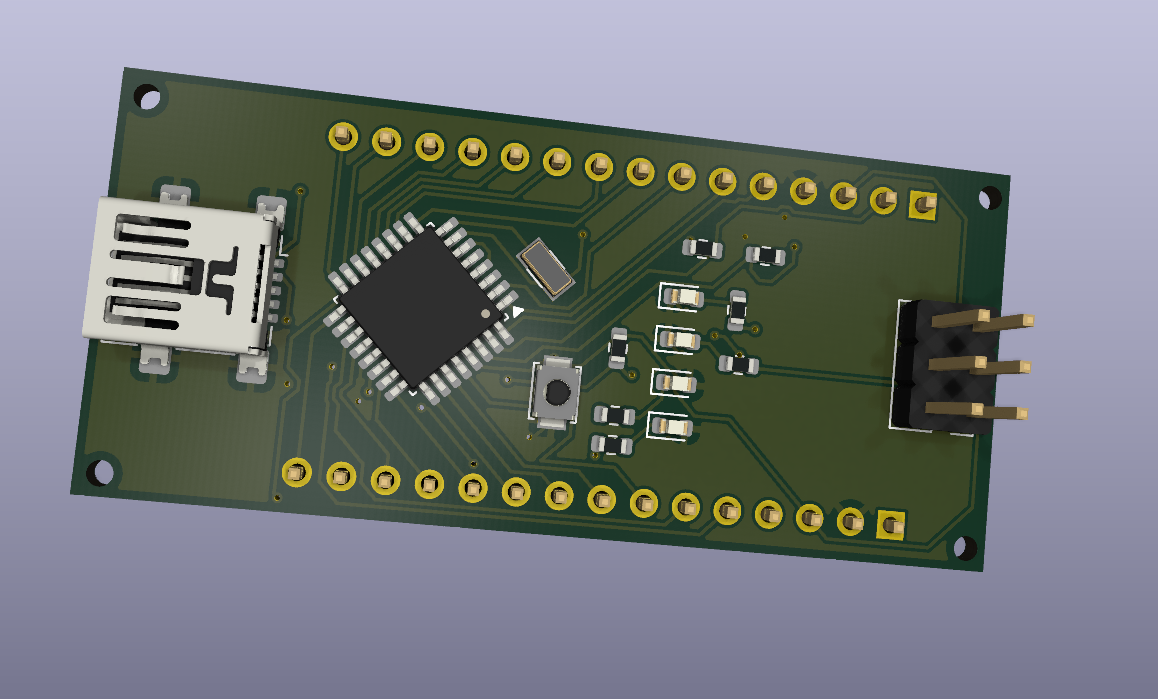

Arduino nano clone, from the project README
From the project README

Main components on the Arduino nano clone

ATmega328P-ALM1117MP-5.0FT232RL

Arduino nano clone bill of materials (BOM)

33 components, 18 distinct parts.

QtyPartRefs
1
ATmega328P-A
U1
1
LM1117MP-5.0
U2
1
FT232RL
U3
1
Crystal_16MHz
Y2
1
USB_B_Mini
J3
2
Conn_01x15
J4, J5
1
Conn_02x03_Odd_Even
ICSP1
1
SW_Push
SW1
1
Thermistor
TH2
2
green
LED1, Tx1
1
yellow
LED2
1
red
Rx1
1
1SS81
D1
2
22pF
C1, C2
3
1uF
C3, C4, C7
2
4.7uF
C5, C8
4
100nF
C6, C9, C10, C11
7
1K
R1, R2, R3, R4, R5, R6, R7

Arduino nano clone design files

The KiCad project lives in the riteshh27/arduino-nano-clone repository on GitHub; these links point at the commit this page was built from.

Arduino nano clone: common questions

What microcontroller does the Arduino nano clone use?

The Arduino nano clone is built around the ATmega328P-A, from the AVR/Arduino family.

How big is the Arduino nano clone PCB?

The Arduino nano clone measures 54 × 24.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Arduino nano clone?

33 components, from 18 distinct parts. The full bill of materials is listed on this page.

Where can I download the Arduino nano clone design files?

From the riteshh27/arduino-nano-clone repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Arduino nano clone design in my own project?

The repository has no license, so all rights stay with riteshh27. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Arduino nano clone without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
