CPU09BP7
About the CPU09BP7 PCB
CPU09BP7 is an open source PCB design by roberto314, published on GitHub. It is a 2-layer board measuring 206 × 132.5 mm, with 80 components from 79 distinct parts.
By type, the board carries 78 connectors, 1 fuse and 1 diode.
From the project

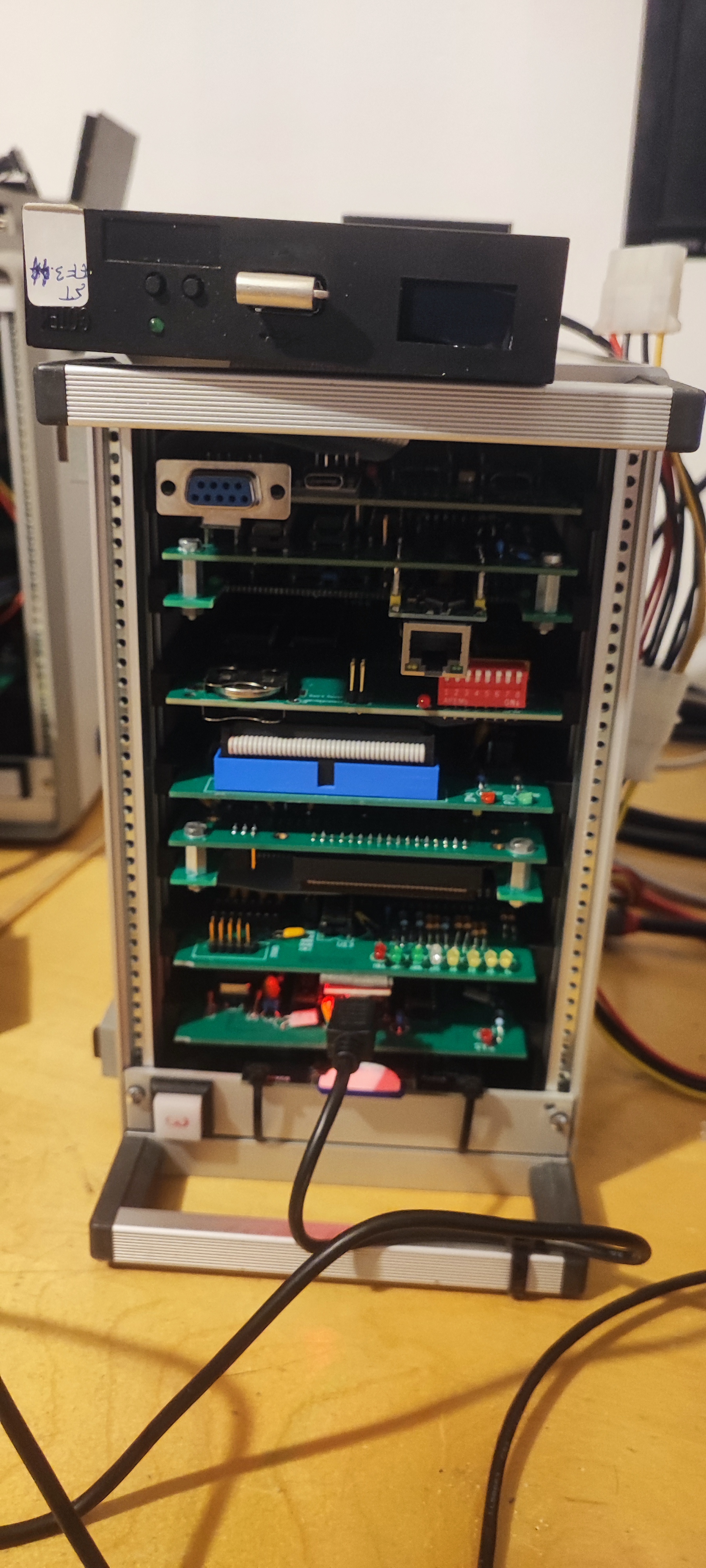

kees 1948 Uniflex Remake
This Repository is for my Remake of the PCBs from kees1948 FLEX and UniFLEX Project. I like SMD Components and started with a new Version of the CPU09RAM Board with Battery Backup.
I also started some modifications to the CPUXXCMI Board to run the Exorciser Firmware (Exbug) and in the near future i will make a Exordisk Hardware to read real floppies. See the Exorciser Subdirectory.
CPU09BP7 bill of materials (BOM)
80 components, 79 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ATX-24 | Molex_Mini-Fit_Jr_5566-24A_2x12_P4.20mm_Vertical | J1 |
| 1 | +12V | PinHeader_1x01_P2.54mm_Vertical | J2 |
| 1 | -12V | PinHeader_1x01_P2.54mm_Vertical | J3 |
| 1 | 3.3V | PinHeader_1x01_P2.54mm_Vertical | J4 |
| 1 | PSON | PinHeader_1x01_P2.54mm_Vertical | J5 |
| 2 | GND | PinHeader_1x01_P2.54mm_Vertical | J6, J7 |
| 1 | ~{RES} | PinHeader_1x01_P2.54mm_Vertical | J8 |
| 1 | ~{RES0} | PinHeader_1x01_P2.54mm_Vertical | J9 |
| 1 | C_23 | PinHeader_1x01_P2.54mm_Vertical | J10 |
| 1 | C_23A | PinHeader_1x01_P2.54mm_Vertical | J11 |
| 1 | C_1A | PinHeader_1x01_P2.54mm_Vertical | J12 |
| 1 | C_2A | PinHeader_1x01_P2.54mm_Vertical | J13 |
| 1 | C_29A | PinHeader_1x01_P2.54mm_Vertical | J14 |
| 1 | C_28A | PinHeader_1x01_P2.54mm_Vertical | J15 |
| 1 | ACCA | PinHeader_1x01_P2.54mm_Vertical | J16 |
| 1 | ACCB | PinHeader_1x01_P2.54mm_Vertical | J17 |
| 1 | A29 | PinHeader_1x01_P2.54mm_Vertical | J18 |
| 1 | A30 | PinHeader_1x01_P2.54mm_Vertical | J19 |
| 1 | C_1B | PinHeader_1x01_P2.54mm_Vertical | J20 |
| 1 | C_28B | PinHeader_1x01_P2.54mm_Vertical | J21 |
Show 59 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | BCCA | PinHeader_1x01_P2.54mm_Vertical | J22 |
| 1 | BCCB | PinHeader_1x01_P2.54mm_Vertical | J23 |
| 1 | BUS-B | DIN41612_C_2x32_Female_Vertical_THT | J24 |
| 1 | C_2B | PinHeader_1x01_P2.54mm_Vertical | J25 |
| 1 | C_23B | PinHeader_1x01_P2.54mm_Vertical | J26 |
| 1 | C_29B | PinHeader_1x01_P2.54mm_Vertical | J27 |
| 1 | B29 | PinHeader_1x01_P2.54mm_Vertical | J28 |
| 1 | B30 | PinHeader_1x01_P2.54mm_Vertical | J29 |
| 1 | C_1C | PinHeader_1x01_P2.54mm_Vertical | J30 |
| 1 | C_28C | PinHeader_1x01_P2.54mm_Vertical | J31 |
| 1 | CCCA | PinHeader_1x01_P2.54mm_Vertical | J32 |
| 1 | CCCB | PinHeader_1x01_P2.54mm_Vertical | J33 |
| 1 | BUS-C | DIN41612_C_2x32_Female_Vertical_THT | J34 |
| 1 | C_2C | PinHeader_1x01_P2.54mm_Vertical | J35 |
| 1 | C_23C | PinHeader_1x01_P2.54mm_Vertical | J36 |
| 1 | C_29C | PinHeader_1x01_P2.54mm_Vertical | J37 |
| 1 | C29 | PinHeader_1x01_P2.54mm_Vertical | J38 |
| 1 | C30 | PinHeader_1x01_P2.54mm_Vertical | J39 |
| 1 | C_1D | PinHeader_1x01_P2.54mm_Vertical | J40 |
| 1 | C_28D | PinHeader_1x01_P2.54mm_Vertical | J41 |
| 1 | DCCA | PinHeader_1x01_P2.54mm_Vertical | J42 |
| 1 | DCCB | PinHeader_1x01_P2.54mm_Vertical | J43 |
| 1 | BUS-D | DIN41612_C_2x32_Female_Vertical_THT | J44 |
| 1 | C_2D | PinHeader_1x01_P2.54mm_Vertical | J45 |
| 1 | C_23D | PinHeader_1x01_P2.54mm_Vertical | J46 |
| 1 | C_29D | PinHeader_1x01_P2.54mm_Vertical | J47 |
| 1 | D29 | PinHeader_1x01_P2.54mm_Vertical | J48 |
| 1 | D30 | PinHeader_1x01_P2.54mm_Vertical | J49 |
| 1 | C_1E | PinHeader_1x01_P2.54mm_Vertical | J50 |
| 1 | C_28E | PinHeader_1x01_P2.54mm_Vertical | J51 |
| 1 | ECCA | PinHeader_1x01_P2.54mm_Vertical | J52 |
| 1 | ECCB | PinHeader_1x01_P2.54mm_Vertical | J53 |
| 1 | BUS-E | DIN41612_C_2x32_Female_Vertical_THT | J54 |
| 1 | C_2E | PinHeader_1x01_P2.54mm_Vertical | J55 |
| 1 | C_23E | PinHeader_1x01_P2.54mm_Vertical | J56 |
| 1 | C_29E | PinHeader_1x01_P2.54mm_Vertical | J57 |
| 1 | E29 | PinHeader_1x01_P2.54mm_Vertical | J58 |
| 1 | E30 | PinHeader_1x01_P2.54mm_Vertical | J59 |
| 1 | C_1F | PinHeader_1x01_P2.54mm_Vertical | J60 |
| 1 | C_28F | PinHeader_1x01_P2.54mm_Vertical | J61 |
| 1 | FCCA | PinHeader_1x01_P2.54mm_Vertical | J62 |
| 1 | FCCB | PinHeader_1x01_P2.54mm_Vertical | J63 |
| 1 | BUS-F | DIN41612_C_2x32_Female_Vertical_THT | J64 |
| 1 | C_2F | PinHeader_1x01_P2.54mm_Vertical | J65 |
| 1 | C_23F | PinHeader_1x01_P2.54mm_Vertical | J66 |
| 1 | C_29F | PinHeader_1x01_P2.54mm_Vertical | J67 |
| 1 | F29 | PinHeader_1x01_P2.54mm_Vertical | J68 |
| 1 | F30 | PinHeader_1x01_P2.54mm_Vertical | J69 |
| 1 | C_1G | PinHeader_1x01_P2.54mm_Vertical | J70 |
| 1 | C_28G | PinHeader_1x01_P2.54mm_Vertical | J71 |
| 1 | GCCA | PinHeader_1x01_P2.54mm_Vertical | J72 |
| 1 | GCCB | PinHeader_1x01_P2.54mm_Vertical | J73 |
| 1 | BUS-G | DIN41612_C_2x32_Female_Vertical_THT | J74 |
| 1 | C_2G | PinHeader_1x01_P2.54mm_Vertical | J75 |
| 1 | C_23G | PinHeader_1x01_P2.54mm_Vertical | J76 |
| 1 | C_29G | PinHeader_1x01_P2.54mm_Vertical | J77 |
| 1 | BUS-A | DIN41612_C_2x32_Female_Vertical_THT | J80 |
| 1 | 1A | Fuseholder_TR5_Littelfuse_No560_No460 | F1 |
| 1 | D_Small_Filled | D_DO-201AE_P15.24mm_Horizontal | D1 |
CPU09BP7 design files
The KiCad project lives in the roberto314/kees1948_Boards repository on GitHub; these links point at the commit this page was built from.
CPU09BP7: common questions
How big is the CPU09BP7 PCB?
The CPU09BP7 measures 206 × 132.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the CPU09BP7?
80 components, from 79 distinct parts. The full bill of materials is listed on this page.
Where can I download the CPU09BP7 design files?
From the roberto314/kees1948_Boards repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the CPU09BP7 design in my own project?
The repository has no license, so all rights stay with roberto314. Use it as a reference, and ask the author before reusing the design.
