Exordisk v1
About the Exordisk v1 PCB
Exordisk v1 is an open source PCB design by roberto314, published on GitHub. It is a 2-layer board measuring 160 × 100 mm, with 110 components from 48 distinct parts.
Other key parts include the GAL22V10, 74HCT74, 74HC245, MC8506_new and 74F163. By type, the board carries 42 connectors, 28 ICs, 17 resistors, 15 capacitors, 6 diodes and 1 transistor.
From the project
kees 1948 Uniflex Remake

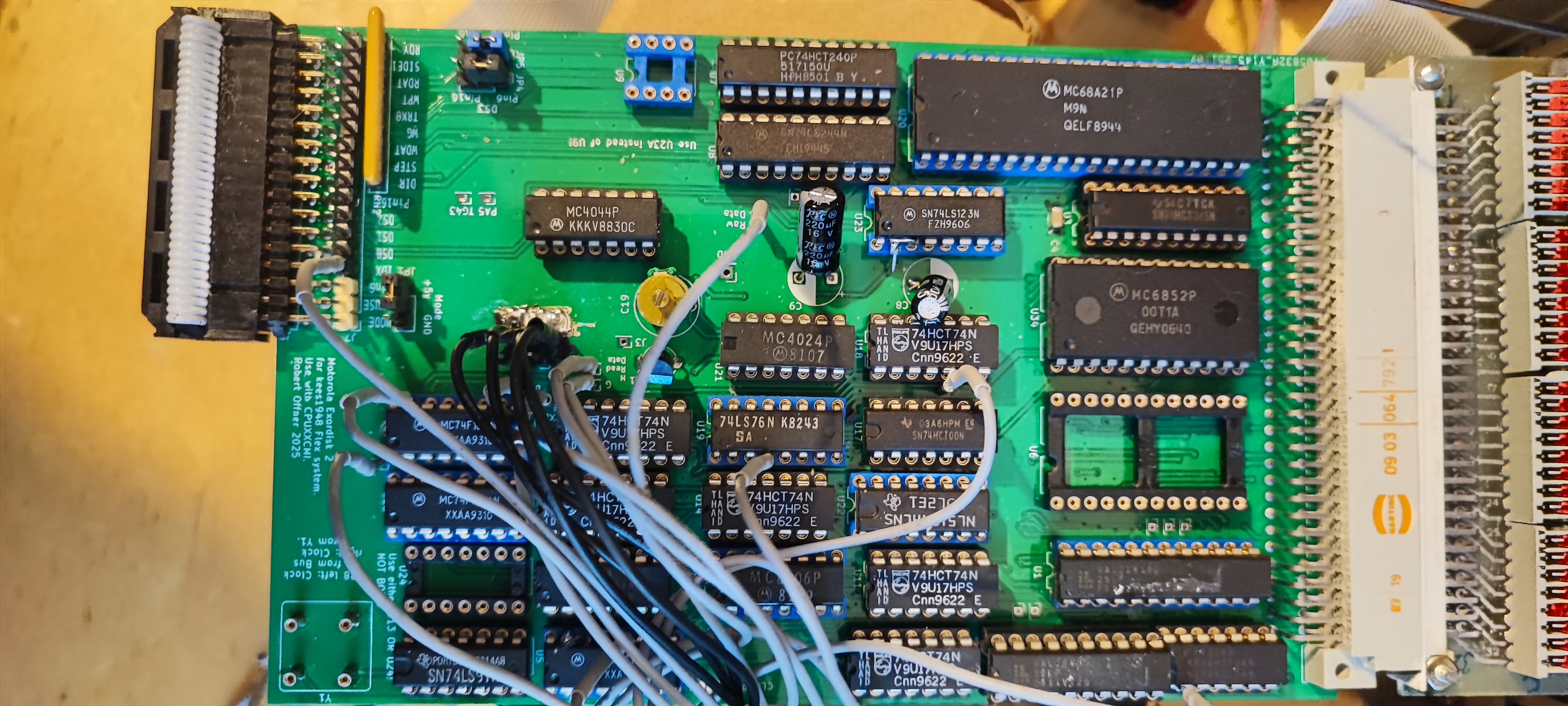

This is a Remake of the Motorola Exordisk Board for kees1948 FLEX and UniFLEX Project. Use it with a CPUXXCMI Board with a 6802 CPU @ 1MHz and the modifications on the Exorciser page.
Exordisk_v1 is the second revision of the Exordisk Board. Use this to build.
Exorset Floppy is the first version of the Exordisk board. It has a lot of problems!
In the GAL subdir. are the equations and .jed files for the exordisk remake board.
Main components on the Exordisk v1
Exordisk v1 bill of materials (BOM)
110 components, 48 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | GAL22V10 | DIP-24_W7.62mm | U1 |
| 5 | 74HCT74 | DIP-14_W7.62mm | U2, U11, U12, U16, U18 |
| 1 | 74HC245 | DIP-20_W7.62mm | U3 |
| 1 | MC8506_new | DIP-16_W7.62mm | U4 |
| 3 | 74F163 | DIP-16_W7.62mm | U5, U28, U29 |
| 1 | 74LS139 | DIP-16_W7.62mm | U6 |
| 1 | 74HCT240 | DIP-20_W7.62mm | U7 |
| 1 | 74HCT244 | DIP-20_W7.62mm | U8 |
| 1 | 74LS32 | DIP-14_W7.62mm | U9 |
| 1 | GAL16V8 | DIP-20_W7.62mm | U10 |
| 1 | 27C64 | DIP-28_W15.24mm | U14 |
| 1 | 74HCT04 | DIP-14_W7.62mm | U15 |
| 1 | 74HCT00 | DIP-14_W7.62mm | U17 |
| 1 | 74LS112 | DIP-16_W7.62mm | U19 |
| 1 | 68B21 | DIP-40_W15.24mm | U20 |
| 1 | MC4024 | DIP-14_W7.62mm | U21 |
| 1 | 74LS157 | DIP-16_W7.62mm | U22 |
| 1 | 74LS123 | DIP-16_W7.62mm | U23 |
| 1 | 74HCT164 | DIP-14_W7.62mm | U24 |
| 1 | 74LS04 | DIP-14_W7.62mm | U25 |
Show 28 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MC4044 | DIP-14_W7.62mm | U27 |
| 1 | 6852_DIL24 | DIP-24_W15.24mm | U34 |
| 1 | BC337 | TO-92L_Wide | Q1 |
| 1 | 1M | Oscillator_DIP-8 | Y1 |
| 1 | BUS | DIN41612_C_2x32_Male_Horizontal_THT | J1 |
| 1 | Floppy | PinHeader_2x17_P2.54mm_Horizontal | J2 |
| 37 | Conn_01x01 | PinHeader_1x01_P2.54mm_Vertical | J3, J4, J5, J6, J8, J9, J10, J11 +29 |
| 1 | Conn_01x17 | PinHeader_1x17_P2.54mm_Vertical | J7 |
| 1 | Conn_02x02_Odd_Even | PinHeader_2x02_P2.54mm_Vertical | J19 |
| 1 | SS/DS | PinHeader_2x04_P2.54mm_Vertical | J42 |
| 6 | 1N4148 | D_1206_3216Metric_Pad1.42x1.75mm_HandSolder | D1, D2, D3, D4, D5, D6 |
| 1 | 10u | CP_EIA-7343-31_Kemet-D_HandSolder | C1 |
| 6 | 100n | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C2, C3, C4, C5, C6, C15 |
| 2 | 100u | CP_EIA-7343-31_Kemet-D_HandSolder | C7, C16 |
| 2 | 100u | CP_Radial_D8.0mm_P5.00mm | C8, C9 |
| 1 | 10n | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C18 |
| 1 | 8-25p | Capacitor_Trim | C19 |
| 1 | 10p | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C38 |
| 1 | 56p | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C39 |
| 8 | 1k | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R1, R5, R6, R7, R8, R9, R10, R16 |
| 1 | 10k | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R2 |
| 1 | 47k | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R3 |
| 1 | 100k | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R4 |
| 1 | 200E | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R13 |
| 1 | 820E | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R14 |
| 2 | 2k2 | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R17, R18 |
| 1 | 720E | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R19 |
| 1 | 1k | R_Array_SIP9 | RN2 |
Exordisk v1 design files
The KiCad project lives in the roberto314/kees1948_Boards repository on GitHub; these links point at the commit this page was built from.
Exordisk v1: common questions
How big is the Exordisk v1 PCB?
The Exordisk v1 measures 160 × 100 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Exordisk v1?
110 components, from 48 distinct parts. The full bill of materials is listed on this page.
Where can I download the Exordisk v1 design files?
From the roberto314/kees1948_Boards repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Exordisk v1 design in my own project?
The repository has no license, so all rights stay with roberto314. Use it as a reference, and ask the author before reusing the design.
