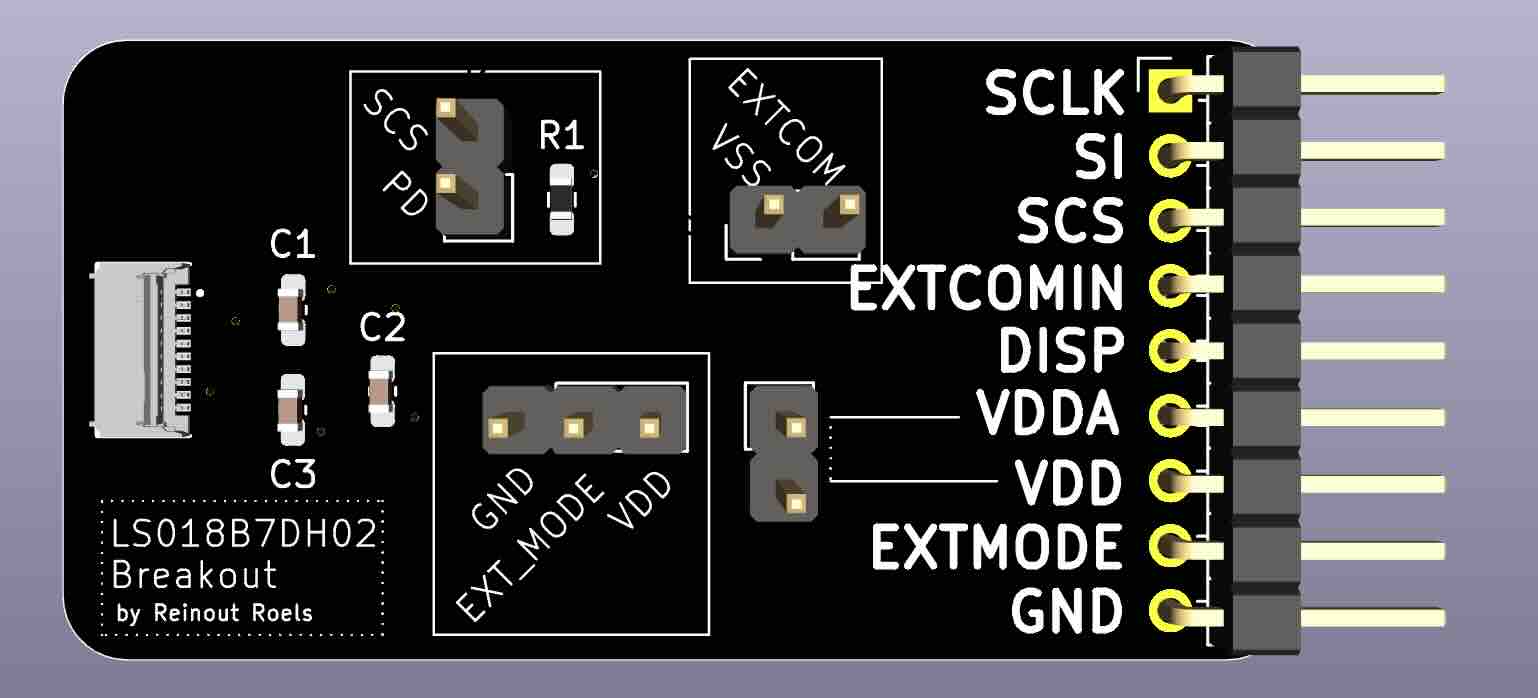

LS018B7DH02-breakout layout, top view — open source board by rroels

About the LS018B7DH02-breakout

LS018B7DH02-breakout is an open source PCB design by rroels, published on GitHub under the MIT license. It is a 2-layer board measuring 48 × 24.3 mm, with 10 components from 7 distinct parts.

By type, the board carries 6 connectors, 3 capacitors and 1 resistor.

It belongs with the displays & leds and dev boards & breakouts designs in this gallery.

From the project

Small breakout board for the Sharp LS018B7DH02 display

This repository contains a small breakout board for the Sharp LS018B7DH02 Memory LCD.

Also see this repository for an Arduino driver for this display: https://github.com/rroels/Sharp\LS018B7DH02\Arduino

To explain in layman's terms, this type of display needs a periodic "refresh signal" (even if you don't intend to change the displayed image), otherwise pixels start to get stuck (until the display is reset).

LS018B7DH02-breakout, from the project README
From the project README

LS018B7DH02-breakout bill of materials (BOM)

10 components, 7 distinct parts.

QtyPartRefs
1
Conn_01x09
J1
1
Conn_01x10
J2
1
Conn_01x03
J3
3
Conn_01x02
J4, J5, J6
1
0.1uF
C1
2
1uF
C2, C3
1
10K
R1

LS018B7DH02-breakout design files

The KiCad project lives in the rroels/LS018B7DH02-breakout repository on GitHub; these links point at the commit this page was built from.

LS018B7DH02-breakout: common questions

How big is the LS018B7DH02-breakout?

The LS018B7DH02-breakout measures 48 × 24.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the LS018B7DH02-breakout?

10 components, from 7 distinct parts. The full bill of materials is listed on this page.

Where can I download the LS018B7DH02-breakout design files?

From the rroels/LS018B7DH02-breakout repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the LS018B7DH02-breakout design in my own project?

Yes, under the terms of its MIT license, which rroels chose for the repository.
