Shield-A V2.0

rsedak·Shield-A_V2.0·design_files/shield_a.kicad_pcb

Shield-A V2.0 layout, top view — open source board by rsedak
Simulate this board

About the Shield-A V2.0

Shield-A V2.0 is an open source PCB design by rsedak, published on GitHub under the Custom license license. It is a 2-layer board measuring 68.8 × 53.6 mm, with 36 components from 13 distinct parts.

By type, the board carries 18 resistors, 12 diodes, 4 switches and 2 transistors.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

Shield-A v2.0 is Arduino Uno based shield for student education compatible with BASCOM-AVR(C) and Arduino IDE.

Contributors ------------ - Vladimir Mitrović — features, BASCOM-AVR expertise - Robert Sedak — features, Arduino expertise, schematic design, CAD design.

Application ----------- Robert Sedak made a video with examples programmed in Arduino IDE:

You can download examples for Arduino IDE from here. Examples which name ends with '_R' are solution with register maniputalion.

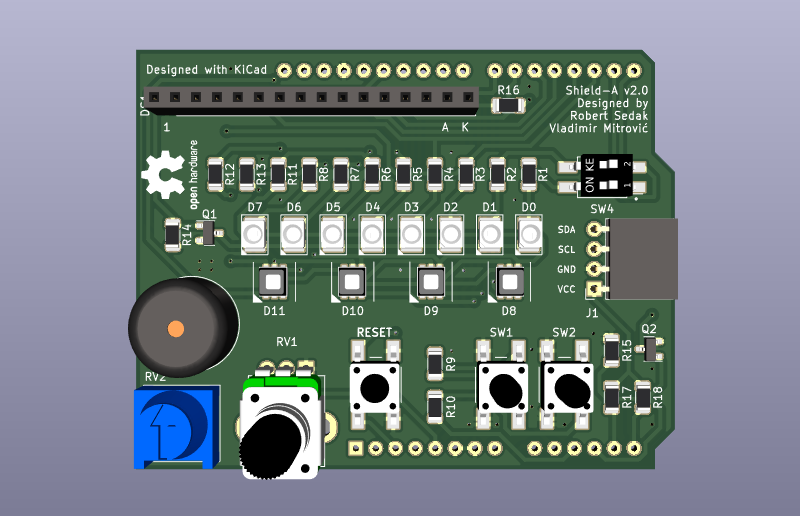

Shield-A V2.0, from the project README
From the project README

Shield-A V2.0 bill of materials (BOM)

36 components, 13 distinct parts — part numbers from the project's BOM.

QtyPartRefs
2
MMBF170
Q1, Q2
2
SW_Push
SW1, SW2
1
SW_Push
SW3
1
SW_DIP_X02
SW_DIP_x02
SW4
8
LED_3528
D0, D1, D2, D3, D4, D5, D6, D7
4
LED-6_3535
D8, D9, D10, D11
8
8.2K
R1, R2, R3, R4, R5, R6, R7, R8
2
100R
R9, R10
1
2.7K
R11
1
1.8K
R12
1
3.9K
R13
4
10K
R14, R15, R17, R18
1
18R
R16

Shield-A V2.0 design files

The KiCad project lives in the rsedak/Shield-A_V2.0 repository on GitHub; these links point at the commit this page was built from.

Shield-A V2.0: common questions

How big is the Shield-A V2.0?

The Shield-A V2.0 measures 68.8 × 53.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Shield-A V2.0?

36 components, from 13 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Shield-A V2.0 design files?

From the rsedak/Shield-A_V2.0 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Shield-A V2.0 design in my own project?

It is published under Custom license, which limits how it may be reused; read the license before building on it.
