Traffic lights pedestrian

rsedak·traffic_lights_pedestrian·design_files/traffic_lights_pedestrian.kicad_pcb

Traffic lights pedestrian PCB layout, top view — open source board by rsedak

About the Traffic lights pedestrian PCB

Traffic lights pedestrian is an open source PCB design by rsedak, published on GitHub under the Custom license license. It is a 2-layer board measuring 21 × 45.3 mm, with 5 components from 3 distinct parts.

By type, the board carries 2 diodes, 2 resistors and 1 connector.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

Traffic lights for pedestrian shield is version of Arduino Uno based shield for student education. It is published under Attribution-ShareAlike 4.0 International (CC BY-SA 4.0) license. I hope you will enjoy it.

Traffic lights for pedestrian shield is version of Arduino Uno based shield for student education.

Contributor ------------ - Robert Sedak — features, Arduino programming, schematic design, CAD design.

Application ----------- Robert Sedak made a video with example programmed in Arduino IDE:

You can download example for Arduino IDE from here.

Bill Of Materials ----------------- - 1 ea., PCB - 2 ea., 330 ohm 1/4W 1% Resistor (R1, R2) - 1 ea., LED 3mm - Red (D1) - 1 ea., LED 3mm - Green (D2) - 1 ea., 1x3Pin 2.54mm Right Angle Pin Header - Black

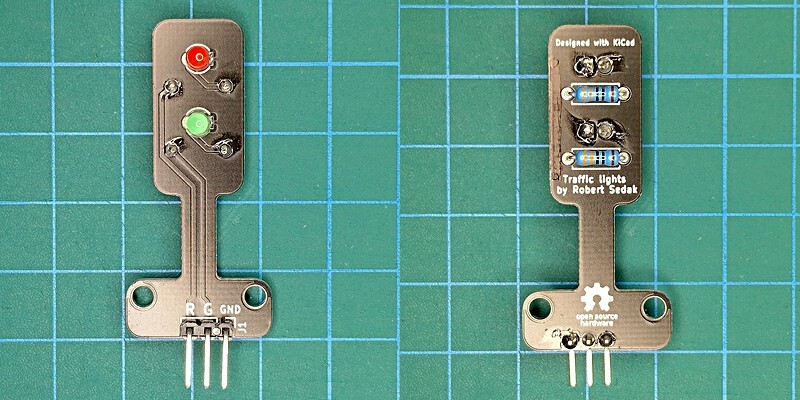

Traffic lights pedestrian, from the project README
From the project README

Traffic lights pedestrian bill of materials (BOM)

5 components, 3 distinct parts.

QtyPartRefs
1
Conn_01x03_Male
J1
2
LED
D1, D2
2
220R
R1, R2

Traffic lights pedestrian design files

The KiCad project lives in the rsedak/traffic_lights_pedestrian repository on GitHub; these links point at the commit this page was built from.

Traffic lights pedestrian: common questions

How big is the Traffic lights pedestrian PCB?

The Traffic lights pedestrian measures 21 × 45.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Traffic lights pedestrian?

5 components, from 3 distinct parts. The full bill of materials is listed on this page.

Where can I download the Traffic lights pedestrian design files?

From the rsedak/traffic_lights_pedestrian repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Traffic lights pedestrian design in my own project?

It is published under Custom license, which limits how it may be reused; read the license before building on it.
