Flipper-Zero-CC1101-Ext-Board
About the Flipper-Zero-CC1101-Ext-Board
Flipper-Zero-CC1101-Ext-Board is an open source PCB design by saereya, published on GitHub. It is a 2-layer board measuring 61.3 × 32.8 mm, with 15 components from 11 distinct parts.
By type, the board carries 5 diodes, 4 connectors, 4 capacitors, 1 inductor and 1 resistor.
It belongs with the rf & radio designs in this gallery, and the repository also holds 1 earlier revision of it.
From the project

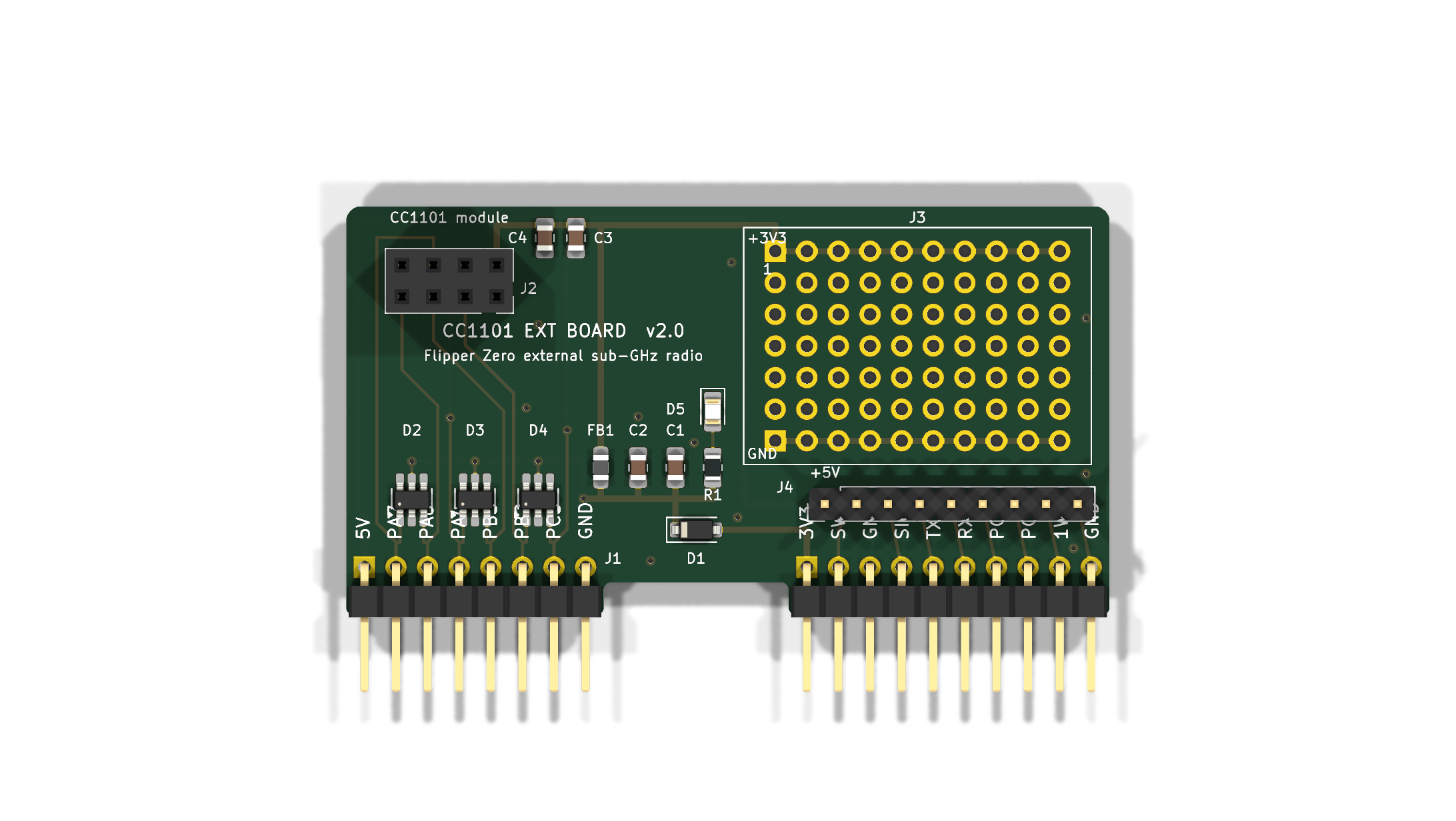

A Flipper Zero GPIO carrier for the common 8-pin CC1101 sub-GHz module, with a prototyping area and a breakout for the Flipper signals the radio does not use.
A Flipper Zero GPIO carrier for the common 8-pin CC1101 sub-GHz module, with a prototyping area and a breakout for the Flipper signals the radio does not use.
61.34 × 32.84 mm, two layers, hand-solderable throughout (0805 passives, SOT-23-6, SOD-123). ERC and DRC are clean; the only remaining DRC entries are silkscreen overlap warnings where a connector's own pin labels sit close to its pads.
Flipper-Zero-CC1101-Ext-Board bill of materials (BOM)
15 components, 11 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Flipper Zero GPIO | FLIPPER-GPIO-18-RA | J1 |
| 1 | CC1101 Module | PinSocket_2x04_P2.54mm_Vertical | J2 |
| 1 | 50 pads, 2.54 mm | ProtoGrid_10x5_P2.54mm | J3 |
| 1 | Spare pins | PinHeader_1x09_P2.54mm_Vertical | J4 |
| 1 | PMEG2010EH | D_SOD-123 | D1 |
| 3 | SRV05-4 | SOT-23-6_Handsoldering | D2, D3, D4 |
| 1 | LED | LED_0805_2012Metric_Pad1.15x1.40mm_HandSolder | D5 |
| 1 | 600R@100MHz | L_0805_2012Metric_Pad1.05x1.20mm_HandSolder | FB1 |
| 2 | 10uF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C1, C3 |
| 2 | 100nF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C2, C4 |
| 1 | 1kR | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R1 |
Flipper-Zero-CC1101-Ext-Board design files
The KiCad project lives in the saereya/Flipper-Zero-CC1101-Ext-Board repository on GitHub; these links point at the commit this page was built from.
Flipper-Zero-CC1101-Ext-Board: common questions
How big is the Flipper-Zero-CC1101-Ext-Board?
The Flipper-Zero-CC1101-Ext-Board measures 61.3 × 32.8 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Flipper-Zero-CC1101-Ext-Board?
15 components, from 11 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Flipper-Zero-CC1101-Ext-Board design files?
From the saereya/Flipper-Zero-CC1101-Ext-Board repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Flipper-Zero-CC1101-Ext-Board design in my own project?
The repository has no license, so all rights stay with saereya. Use it as a reference, and ask the author before reusing the design.
Earlier revisions in the repo: CC1101ExtBoard
