Stereo Amplifier TDA2822

salindersidhu·pcb-projects·stereo-amplifier-tda2822/stereo-amplifier-tda2822.kicad_pcb

Stereo Amplifier TDA2822 PCB layout, top view — open source board by salindersidhu

About the Stereo Amplifier TDA2822 PCB

Stereo Amplifier TDA2822 is an open source PCB design by salindersidhu, published on GitHub under the Apache-2.0 license. It is a 2-layer board measuring 50.6 × 54.6 mm, with 22 components from 14 distinct parts.

Other key parts include the TDA2822. By type, the board carries 10 capacitors, 6 resistors, 4 connectors and 1 IC.

It belongs with the audio designs in this gallery.

From the project

Personal electronics and PCB projects created in KiCad with full documentation.

This project is a compact stereo audio amplifier PCB based on the TDA2822 audio power amplifier IC. The amplifier is configured in the standard stereo (single-ended) configuration, providing clean, low-noise audio for small speakers. The design includes an onboard analog volume control, a standard 3.5 mm auxiliary input, and AC-coupled speaker outputs suitable for general-purpose audio applications.

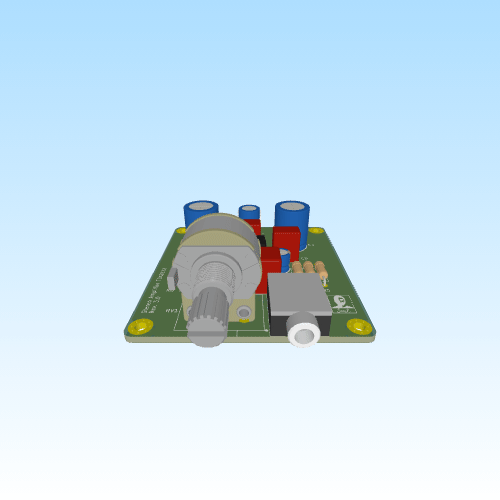

Stereo Amplifier TDA2822, from the project README — From the project README

Main components on the Stereo Amplifier TDA2822

Stereo Amplifier TDA2822 bill of materials (BOM)

22 components, 14 distinct parts.

Qty	Part	Footprint	Refs
1	TDA2822	DIP762W45P254L1092H508Q8	U1
1	AUX IN	CUI_SJ1-3513N	J1
1	SPK 1	JST_B2B-XH-A	J2
1	SPK 2	JST_B2B-XH-A	J3
1	PWR IN	JST_B2B-XH-A	J4
1	50k	Potentiometer_Alps_RK163_Dual_Horizontal	RV1
2	2.2u	C_Rect_L7.2mm_W7.2mm_P5.00mm_FKS2_FKP2_MKS2_MKP2	C1, C2
2	2200u	CP_Radial_D10.0mm_P5.00mm	C3, C4
3	0.1u	CAPRR500W50L730T450H950	C5, C6, C10
2	100u	CP_Radial_D5.0mm_P2.50mm	C7, C8
1	470u	CP_Radial_D6.3mm_P2.50mm	C9
2	47k	R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal	R1, R2
2	18k	R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal	R3, R4
2	4.7	R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal	R5, R6

Stereo Amplifier TDA2822 design files

The KiCad project lives in the salindersidhu/pcb-projects repository on GitHub; these links point at the commit this page was built from.

Stereo Amplifier TDA2822: common questions

How big is the Stereo Amplifier TDA2822 PCB?

The Stereo Amplifier TDA2822 measures 50.6 × 54.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Stereo Amplifier TDA2822?

22 components, from 14 distinct parts. The full bill of materials is listed on this page.

Where can I download the Stereo Amplifier TDA2822 design files?

From the salindersidhu/pcb-projects repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Stereo Amplifier TDA2822 design in my own project?

Yes, under the terms of its Apache-2.0 license, which salindersidhu chose for the repository.
