About the Dac PCB
Dac is an open source STM32 PCB design by sambazley, published on GitHub. It is a 2-layer board measuring 100 × 64.9 mm, with 86 components from 36 distinct parts.
Its main chip is the STM32F042F4Px, from the STM32 family. Other key parts include the AP7335, CS4350, LTC1983, LM4562 and PLR135. By type, the board carries 28 capacitors, 23 resistors, 10 ICs, 4 connectors, 3 transistors and 3 switches.
It belongs with the audio designs in this gallery.
From the project

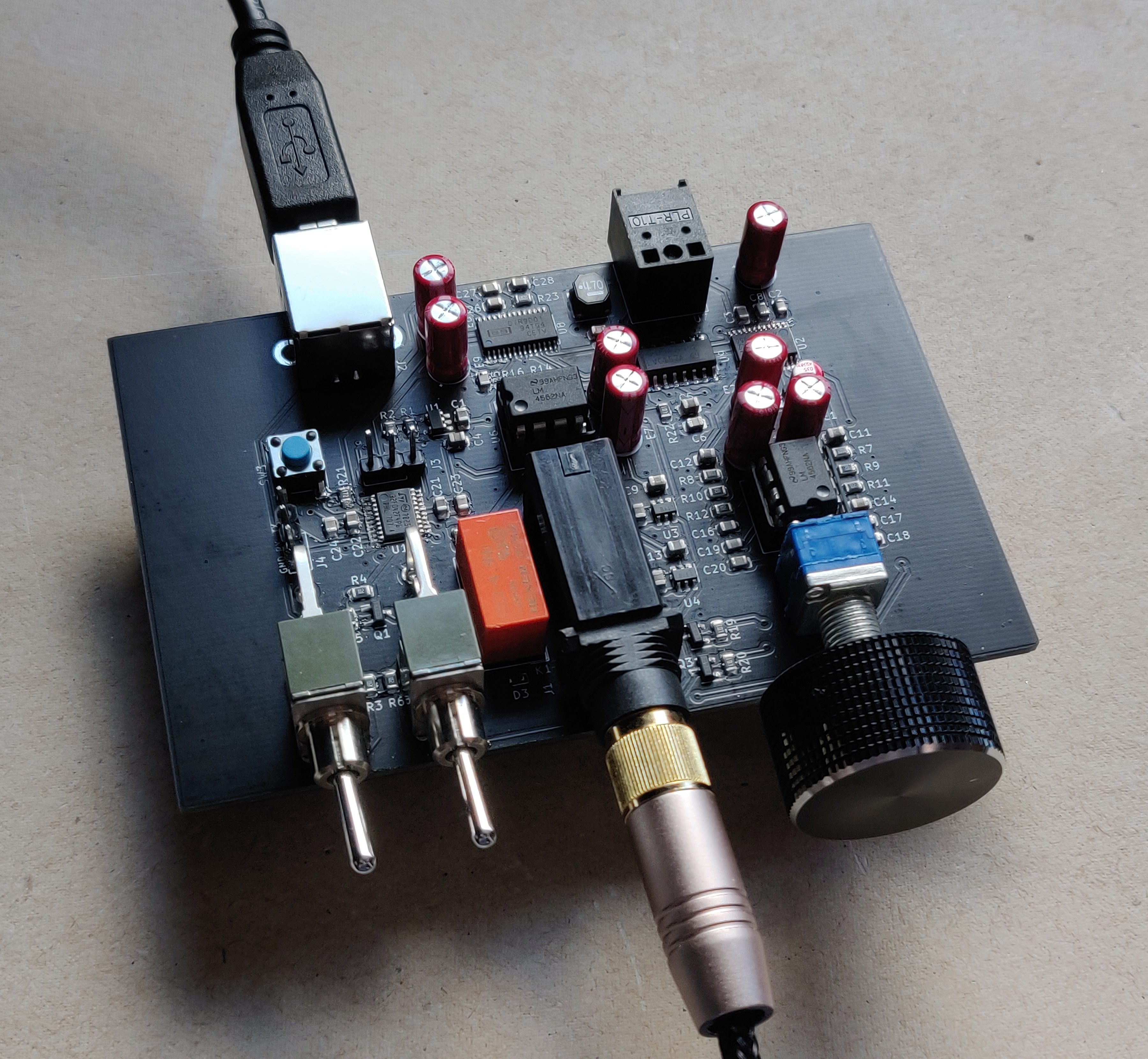

STM32 USB headphone DAC

Main components on the Dac
Dac bill of materials (BOM)
86 components, 36 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | AP7335 | SOT-23-5 | U1 |
| 1 | CS4350 | TSSOP-24_4.4x7.8mm_P0.65mm | U2 |
| 2 | LTC1983 | SOT-23-6 | U3, U4 |
| 2 | LM4562 | DIP-8_W7.62mm_Socket | U5, U6 |
| 1 | PLR135 | PLR135 | U7 |
| 1 | DIR9001 | TSSOP-28_4.4x9.7mm_P0.65mm | U8 |
| 1 | SN74LVC157ADR | SOIC-16_3.9x9.9mm_P1.27mm | U9 |
| 1 | STM32F042F4Px | TSSOP-20_4.4x6.5mm_P0.65mm | U10 |
| 3 | MMBTA06 | SOT-23 | Q1, Q2, Q3 |
| 1 | AudioJack3 | SJ-63053A | J1 |
| 1 | USB_B | UJ2-BH-TH | J2 |
| 2 | Conn_01x03 | PinHeader_1x03_P2.54mm_Vertical | J3, J4 |
| 1 | 3u3 | CP_Elec_4x4.5 | E1 |
| 8 | 10u | CP_Radial_D5.0mm_P2.00mm | E2, E3, E4, E5, E6, E7, E8, E9 |
| 1 | EC2-4.5NU | Relay_DPDT_Kemet_EC2 | K1 |
| 1 | R_POT_Dual 10k | PTD902-2020K-A103 | RV1 |
| 2 | SW_SPDT | M2012SA2W40 | SW1, SW2 |
| 1 | SW_Push | SW_SPST_PTS645 | SW3 |
| 2 | LED | LED_0805_2012Metric_Pad1.15x1.40mm_HandSolder | D1, D2 |
| 1 | D | D_SOD-523 | D3 |
Show 16 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 47u | L_Taiyo-Yuden_NR-50xx | L1 |
| 5 | 1u | C_0805_2012Metric | C1, C4, C7, C10, C22 |
| 8 | 100n | C_0805_2012Metric | C2, C3, C6, C8, C15, C23, C25, C26 |
| 5 | 10u | C_0805_2012Metric | C5, C9, C11, C12, C13 |
| 6 | 1n | C_0805_2012Metric | C14, C16, C17, C18, C19, C20 |
| 1 | 4u7 | C_0805_2012Metric | C21 |
| 1 | 10n | C_0805_2012Metric | C24 |
| 1 | 4n7 | C_0805_2012Metric | C27 |
| 1 | 68n | C_0805_2012Metric | C28 |
| 1 | 15k | R_0805_2012Metric | R1 |
| 2 | 4k7 | R_0805_2012Metric | R2, R21 |
| 11 | 1k | R_0805_2012Metric | R3, R4, R6, R9, R10, R11, R12, R13 +3 |
| 4 | 10k | R_0805_2012Metric | R5, R19, R20, R22 |
| 2 | 100k | R_0805_2012Metric | R7, R8 |
| 2 | 68 | R_0805_2012Metric | R17, R18 |
| 1 | 680 | R_0805_2012Metric | R23 |
Dac design files
The KiCad project lives in the sambazley/dac repository on GitHub; these links point at the commit this page was built from.
- Layoutpcb/project.kicad_pcb
- Schematicpcb/project.kicad_sch
Dac: common questions
What microcontroller does the Dac use?
The Dac is built around the STM32F042F4Px, from the STM32 family.
How big is the Dac PCB?
The Dac measures 100 × 64.9 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Dac?
86 components, from 36 distinct parts. The full bill of materials is listed on this page.
Where can I download the Dac design files?
From the sambazley/dac repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Dac design in my own project?
The repository has no license, so all rights stay with sambazley. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Dac without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
