About the Moonlight PCB
Moonlight is an open source PCB design by SamyIOoOI, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 65.5 × 57 mm, with 16 components from 13 distinct parts.
Other key parts include the NE555D and 4017. By type, the board carries 6 resistors, 4 diodes, 3 capacitors, 2 ICs and 1 connector.
From the project
A night lamp with stars and a crescent. Includes LED running animation controlled via the PCB. #3AM YSWS Project (and actually built around that time too)
- Cozy light night light made up of an LED Strip behind dark brown, dark purple or black(ish) crescent - Running LED lights with red, purple, orange and pink for aesthetics. ------------------------------------------

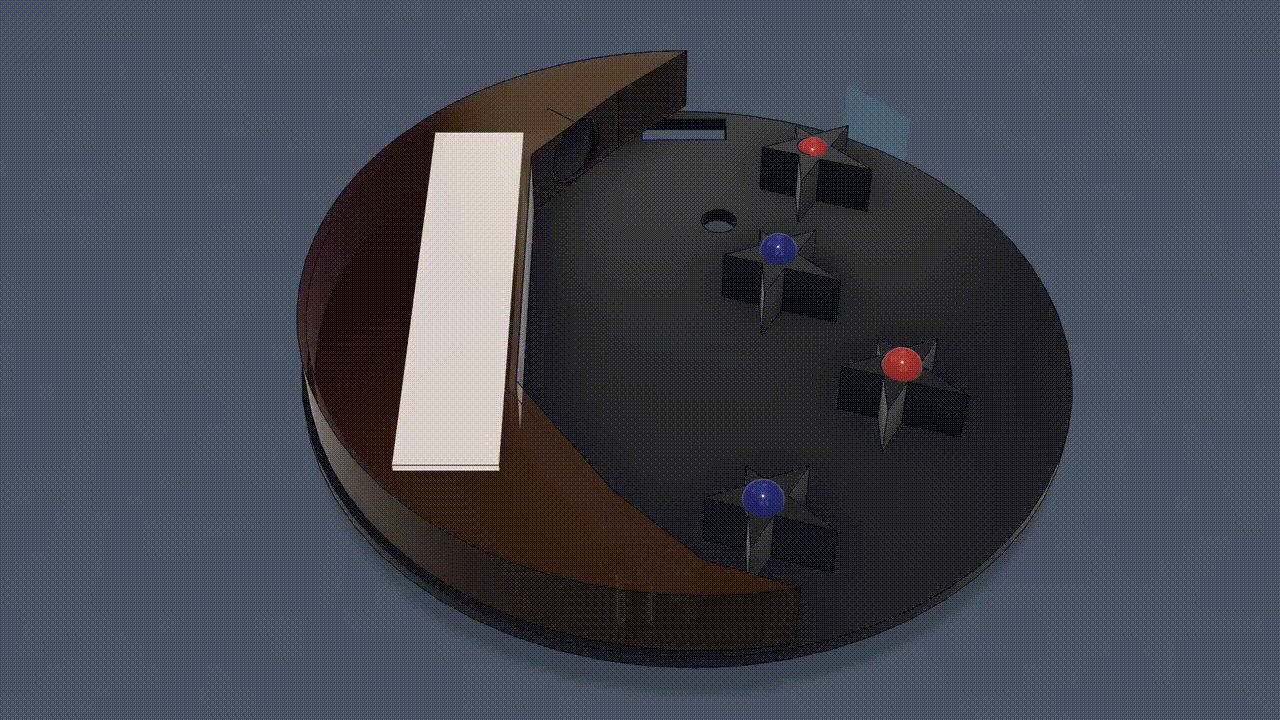

Ignore the white rectangle it's supposed to represent an LED Strip + The colors in the star LEDs are purple, red, orange and pink
- Prepare the PCB via ordering or hand-solder, follow the schematic & use the pcb design as a reference. - Stick an LED strip of your choice within the crescent and run the wires out. 5V LED Strips are recommended. - Connect the LED Strip wires to…
Main components on the Moonlight
Moonlight bill of materials (BOM)
16 components, 13 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | NE555D | DIP-8_W7.62mm_Socket | U1 |
| 1 | 4017 | DIP-16_W7.62mm_Socket | U2 |
| 1 | USB_A | USB_A_Molex_67643_Horizontal | J1 |
| 1 | RED LED | PinHeader_1x02_P2.54mm_Vertical | D1 |
| 1 | PURPLE LED | PinHeader_1x02_P2.54mm_Vertical | D2 |
| 1 | ORANGE LED | PinHeader_1x02_P2.54mm_Vertical | D3 |
| 1 | PINK LED | PinHeader_1x02_P2.54mm_Vertical | D4 |
| 1 | 47uF | CP_Radial_D6.3mm_P2.50mm | C1 |
| 1 | 0.1 uF | C_Disc_D3.8mm_W2.6mm_P2.50mm | C2 |
| 1 | 10 uF | CP_Radial_D5.0mm_P2.50mm | C3 |
| 4 | 470 | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1, R2, R3, R4 |
| 1 | 1K | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R5 |
| 1 | 68K | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R6 |
Moonlight design files
The KiCad project lives in the SamyIOoOI/Moonlight repository on GitHub; these links point at the commit this page was built from.
Moonlight: common questions
How big is the Moonlight PCB?
The Moonlight measures 65.5 × 57 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Moonlight?
16 components, from 13 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Moonlight design files?
From the SamyIOoOI/Moonlight repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Moonlight design in my own project?
Yes, under the terms of its GPL-3.0 license, which SamyIOoOI chose for the repository.
