About the Delta PCB
Delta is an open source STM32 PCB design by Scottapotamas, published on GitHub. It is a 4-layer board measuring 199.9 × 69.3 mm, with 231 components from 84 distinct parts.
Its main chip is the STM32F429VET6, from the STM32 family. Other key parts include the ISL85410FRZ, LM5116, ADUM3160, ACS711KEXLT_15AB and ULN2003A. By type, the board carries 80 capacitors, 70 resistors, 24 diodes, 16 connectors, 12 ICs and 6 transistors.
It belongs with the robotics & motion designs in this gallery.
From the project
A DIY high performance delta-bot for fun, and lightpainting...

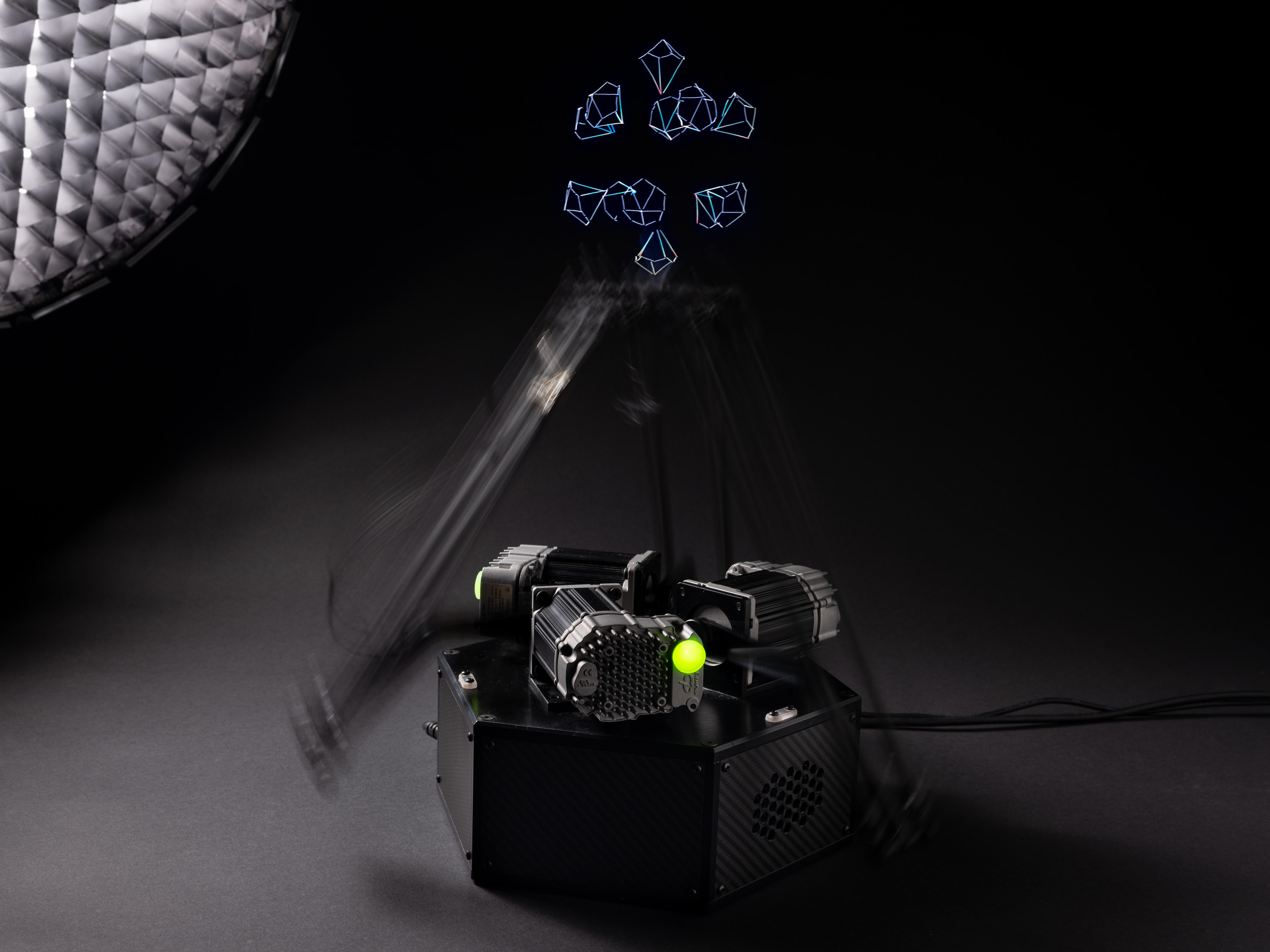

ZaphodBot is a DIY, 'high-end' rotary delta robot designed primarily for high-fidelity light painting.
It's served as a personal project where the majority of mechanics, electronics, firmware and higher level software has been designed from scratch (because why not).
I've detailed the design motivation and build in a more longform post here.
CAD files for the robot are in Solidworks 2015 format, and can be found in /mechanical/design/.

Main components on the Delta
Delta bill of materials (BOM)
231 components, 84 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | ISL85410FRZ | QFN50P400X300X100-13T170X330N | U1, U3 |
| 1 | LM5116 | SOP21P65_720X780X200L75X30N | U2 |
| 1 | STM32F429VET6 | QFP50P1600X1600X160-100L25N | U4 |
| 1 | ADUM3160 | SOIC127P1032X265-16L87N | U5 |
| 4 | ACS711KEXLT_15AB | ACS-EX-12 | U6, U7, U8, U9 |
| 2 | ULN2003A | SOIC127P1030X265-18L87N | U10, U11 |
| 1 | ADUM5412 | SOP65P780X200-24L40N | U12 |
| 2 | SI7852DP Si7852DP | SON127P490X575X90-9T313X381N | Q1, Q2 |
| 2 | 2N7002P | SOT95P240X110-3L16N | Q3, Q6 |
| 1 | NTR1P02T1G | SOT95P240X110-3L16N | Q4 |
| 1 | BC847B | SOT95P240X110-3L16N | Q5 |
| 1 | CSTCE8M00G55Z | OSCSC-CSCTE-CERALOCK | X1 |
| 1 | SWD_SMT_SOCKET | CNCTECH_3220-10-0300-00 | X2 |
| 1 | ABS06-107-32.768KHZ | XTALDFN200X120X60-2N | X3 |
| 1 | MOLEX_43160-0102 | Molex_Sabre_43160-0102_VERT | P1 |
| 4 | MOLEX_MINIFIT_JR_2X2_WAY MOLEX_MINIFIT_JR_2x2_WAY | Molex_Mini-Fit_Jr_5566-04A_2x02_P4.20mm_Vertical | P2, P3, P4, P5 |
| 4 | MOLEX_MINIFIT_JR_2X4_WAY MOLEX_MINIFIT_JR_2x4_WAY | Molex_Mini-Fit_Jr_5566-08A_2x04_P4.20mm_Vertical | P11, P12, P13, P14 |
| 1 | MOLEX_NANOFIT_2X4_WAY MOLEX_NANOFIT_2x4_WAY | Molex_Nano-Fit_105310-xx08_2x04_VERT | P15 |
| 1 | MOLEX_NANOFIT_1X6_WAY MOLEX_NANOFIT_1x6_WAY | Molex_Nano-Fit_105309-xx06_1x06_VERT | P16 |
| 1 | MOLEX_NANOFIT_2X3_WAY MOLEX_NANOFIT_2x3_WAY | Molex_Nano-Fit_105310-xx06_2x03_VERT | P17 |
Show 64 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | CONN_01X02 | 61300211121 | P18 |
| 1 | MOLEX_KK2.54_1X4_WAY_FAN MOLEX_KK2.54_1x4_WAY_FAN | MOLEX_47053-1000 | P19 |
| 1 | CONN_01X06 | 61300611121 | P20 |
| 1 | MOLEX_NANOFIT_2X5_WAY MOLEX_NANOFIT_2x5_WAY | Molex_Nano-Fit_105310-xx10_2x05_VERT | P21 |
| 2 | 0.5A_1210L_PTC | FUSC3225X85L50N | F1, F2 |
| 1 | PKMCS0909E4000-R1 | MURATA_PKMCS0909E4000 | LS1 |
| 3 | B3U-1000P_SPST-NO_SMD | B3U-1000P | SW1, SW2, SW3 |
| 1 | CLIP_HOOK_BROWN | KEYSTONE_5115 | TEST1 |
| 1 | CLIP_HOOK_YELLOW | KEYSTONE_5004 | TEST2 |
| 1 | CLIP_HOOK_RED | KEYSTONE_5000 | TEST3 |
| 1 | CLIP_HOOK_ORANGE | KEYSTONE_5003 | TEST4 |
| 1 | CLIP_HOOK_BLACK | KEYSTONE_5001 | TEST5 |
| 2 | PROBE_PAD | TP200 | TEST6, TEST8 |
| 2 | NTC_10K_1608M | RESC1608X50N | TH1, TH2 |
| 15 | BAV99 | SOT95P240X110-3L16N | D1, D6, D7, D8, D9, D14, D15, D16 +7 |
| 2 | 200V_350MW_SOT23 200V_350mW_SOT23 | SOT95P240X110-3L16N | D2, D3 |
| 1 | LED_YELLOW_1608M | LEDC1608X80L40N | D4 |
| 1 | LED_GREEN_1608M | LEDC1608X80L40N | D5 |
| 4 | 3V3 | SOD3715X145N | D10, D11, D12, D13 |
| 1 | LED_RED_1608M | LEDC1608X80L40N | D24 |
| 2 | 1K_1608M | INDC1608X95N | FB1, FB2 |
| 2 | 22U_MCSDRH73B 22u_MCSDRH73B | INDM7373X355L170X207N | L1, L2 |
| 1 | 10U2_PA2050 10u2_PA2050 | PULSE_PA2050 | L3 |
| 31 | 100N_X7R_1608M 100n_X7R_1608M | CAPC1608X90N | C1, C4, C7, C16, C22, C24, C37, C38 +23 |
| 1 | 47U_ELEC_100V_1350X1350M 47u_ELEC_100V_1350X1350M | CAPAE1350X1350D1490DD450L470N | C2 |
| 4 | 10U_X7R_3225M 10u_X7R_3225M | CAPC3225X170N | C3, C21, C75, C80 |
| 4 | 2U2_X7R_4532M 2u2_X7R_4532M | CAPC4532X180N | C5, C6, C8, C9 |
| 1 | 15P_X7R_1608M 15p_X7R_1608M | CAPC1608X90N | C10 |
| 7 | 1U_X7R_1608M 1u_X7R_1608M | CAPC1608X90N | C11, C12, C26, C34, C35, C36, C45 |
| 1 | 1N5_X7R_1608M 1n5_X7R_1608M | CAPC1608X90N | C13 |
| 4 | 22P_X7R_1608M 22p_X7R_1608M | CAPC1608X90N | C14, C29, C48, C49 |
| 6 | 22U_X7R_3225M 22u_X7R_3225M | CAPC3225X170N | C15, C17, C31, C32, C33, C72 |
| 1 | 330P_X7R_1608M 330p_X7R_1608M | CAPC1608X90N | C18 |
| 3 | 1U_X7R_2012M 1u_X7R_2012M | CAPC2012X110N | C19, C20, C23 |
| 4 | 47U_TANT_7343M 47u_TANT_7343M | CAPPM7343X310N | C25, C27, C28, C30 |
| 4 | 10N_X7R_1608M 10n_X7R_1608M | CAPC1608X90N | C56, C57, C58, C59 |
| 9 | 1N_X7R_1608M 1n_X7R_1608M | CAPC1608X90N | C60, C61, C62, C63, C64, C66, C67, C68 +1 |
| 2 | 130K_1608M | RESC1608X50N | R1, R2 |
| 11 | 10K0_1608M | RESC1608X50N | R3, R23, R36, R37, R38, R39, R55, R56 +3 |
| 3 | 2K40_1608M | RESC1608X50N | R4, R58, R59 |
| 6 | 100K_1608M | RESC1608X50N | R5, R8, R9, R19, R25, R28 |
| 1 | 1M_1608M | RESC1608X50N | R6 |
| 2 | 12K7_1608M | RESC1608X50N | R7, R27 |
| 5 | 22K_1608M | RESC1608X50N | R10, R44, R45, R46, R47 |
| 1 | 102K_1608M | RESC1608X50N | R11 |
| 1 | 9K53_1608M | RESC1608X50N | R12 |
| 1 | 39K_1608M | RESC1608X50N | R13 |
| 1 | 1K2_1608M | RESC1608X50N | R14 |
| 1 | 10K7_1608M | RESC1608X50N | R15 |
| 1 | 750K_1608M | RESC1608X50N | R16 |
| 1 | 2R2_1608M | RESC1608X50N | R17 |
| 1 | 1R0_1608M | RESC1608X50N | R18 |
| 3 | 0R_1608M | RESC1608X50N | R20, R21, R22 |
| 1 | R01_3216M | RESC3216X140N | R24 |
| 1 | 91K_1608M | RESC1608X50N | R26 |
| 3 | 1K_QUAD_ARRAY_1608M | R_Array_Concave_4x1608M | R29, R35, R57 |
| 4 | 22R_1608M | RESC1608X50N | R30, R31, R67, R68 |
| 7 | 100R_1608M | RESC1608X50N | R32, R40, R41, R42, R43, R50, R51 |
| 4 | 4K7_1608M | RESC1608X50N | R33, R34, R65, R66 |
| 1 | 47R_QUAD_ARRAY_1608M | R_Array_Concave_4x1608M | R48 |
| 5 | 10R_1608M | RESC1608X50N | R49, R52, R53, R54, R62 |
| 1 | 1K00_1608M | RESC1608X50N | R60 |
| 1 | 33K2_1608M | RESC1608X50N | R64 |
| 1 | 16K9_1608M | RESC1608X50N | R69 |
Delta design files
The KiCad project lives in the Scottapotamas/zaphod-bot repository on GitHub; these links point at the commit this page was built from.
Delta: common questions
What microcontroller does the Delta use?
The Delta is built around the STM32F429VET6, from the STM32 family.
How big is the Delta PCB?
The Delta measures 199.9 × 69.3 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Delta?
231 components, from 84 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Delta design files?
From the Scottapotamas/zaphod-bot repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Delta design in my own project?
The repository has no license, so all rights stay with Scottapotamas. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Delta without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
