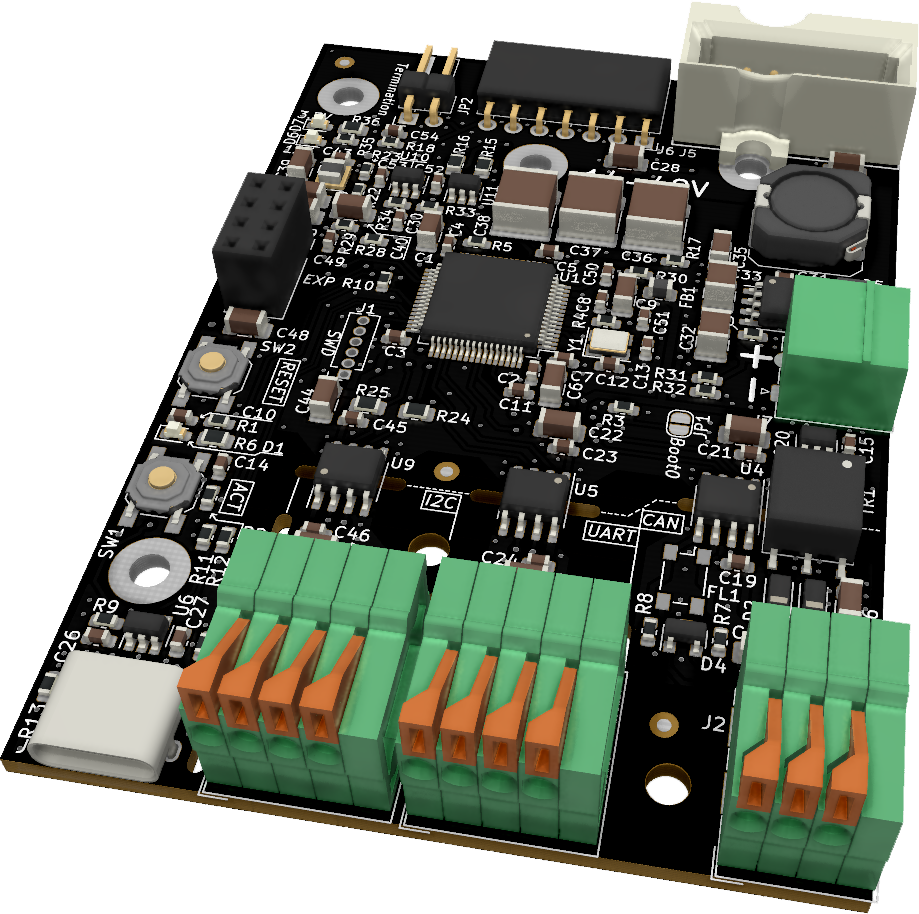

About the MiniFeedMaster PCB
MiniFeedMaster is an open source STM32 PCB design by SG-O, published on GitHub under the CC-BY-4.0 license. It is a 2-layer board measuring 58.4 × 83.2 mm, with 125 components from 48 distinct parts.
Its main chip is the STM32F105Rx, from the STM32 family. Other key parts include the TPS76350, SN6505B, ISO1044, ISO6721 / ISO7721 and USBLC6-2SC6. By type, the board carries 54 capacitors, 36 resistors, 11 ICs, 9 connectors, 7 diodes and 2 switches.
From the project
Mainboard for automated SMT Feeder system
You can find the manufacturing documentation here.

Main components on the MiniFeedMaster
MiniFeedMaster bill of materials (BOM)
125 components, 48 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | STM32F105Rx | LQFP-64_10x10mm_P0.5mm | U1 |
| 1 | TPS76350 | SOT-23-5 | U2 |
| 1 | SN6505B | SOT-23-6 | U3 |
| 1 | ISO1044 | SOIC-8_3.9x4.9mm_P1.27mm | U4 |
| 1 | ISO6721 / ISO7721 | SOIC-8_3.9x4.9mm_P1.27mm | U5 |
| 3 | USBLC6-2SC6 | SOT-23-6 | U6, U10, U11 |
| 1 | LMR16020 | SOIC-8-1EP_3.9x4.9mm_P1.27mm_EP2.41x3.3mm_ThermalVias | U7 |
| 1 | TPS82140 | Texas_SIL0008D_MicroSiP-8-1EP_2.8x3mm_P0.65mm_EP1.1x1.9mm_ThermalVias | U8 |
| 1 | ISO1541 | SOIC-8_3.9x4.9mm_P1.27mm | U9 |
| 1 | 25MHz ±10ppm 20pF 40Ω | Crystal_SMD_3225-4Pin_3.2x2.5mm | Y1 |
| 1 | SWD | PinSocket_1x06_P1.27mm_Vertical | J1 |
| 1 | CAN | TerminalBlock_KaiFeng_KF141R-3_1x03_P2.54mm | J2 |
| 1 | UART | TerminalBlock_KaiFeng_KF141R-4_1x04_P2.54mm | J3 |
| 1 | USB | HRO-TYPE-C-31-M-12-Assembly | J4 |
| 1 | Feeder | PogoEdgeConnector | J5 |
| 1 | Chain | PinSocket_1x07_P2.54mm_Horizontal | J6 |
| 1 | VIn | PhoenixContact_MC_1,5_2-G-3.81_1x02_P3.81mm_Horizontal | J7 |
| 1 | I2C | TerminalBlock_KaiFeng_KF141R-4_1x04_P2.54mm | J8 |
| 1 | EXT | PinSocket_2x04_P2.54mm_Vertical | J9 |
| 1 | DNP | FIL_ACT45B-510-2P-TL003 | FL1 |
Show 28 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | END | PinHeader_1x02_P2.54mm_Horizontal | JP2 |
| 1 | Button | SW_SPST_SKQG_WithStem | SW1 |
| 1 | Reset | SW_SPST_SKQG_WithStem | SW2 |
| 1 | 1:2.1 | TOROID_SMD_6PIN_(1109) | TR1 |
| 3 | RED | LED_0603_1608Metric | D1, D6, D7 |
| 2 | MBR0520L | D_SOD-123 | D2, D3 |
| 1 | ESDCAN24 | SOT-23 | D4 |
| 1 | SS2P4HM3 | DO-220AA | D5 |
| 1 | 600R_2A | L_0805_2012Metric | FB1 |
| 1 | 33u | Inductor10x10mm | L1 |
| 18 | 10u | C_1206_3216Metric | C1, C6, C9, C16, C18, C20, C22, C25 +10 |
| 27 | 100n | C_0603_1608Metric | C2, C3, C4, C5, C7, C8, C10, C11 +19 |
| 2 | 27p | C_0603_1608Metric | C12, C13 |
| 2 | 10u 50V | C_1210_3225Metric | C32, C33 |
| 1 | 220p | C_0603_1608Metric | C34 |
| 3 | 47u | C_2220_5650Metric | C36, C37, C38 |
| 1 | 2n2 | C_0603_1608Metric | C43 |
| 14 | 10k | R_0603_1608Metric | R1, R2, R3, R5, R10, R21, R26, R27 +6 |
| 1 | 150R | R_0603_1608Metric | R4 |
| 6 | 1k5 | R_0805_2012Metric | R6, R15, R16, R24, R25, R36 |
| 2 | 0R | R_0603_1608Metric | R7, R8 |
| 3 | 5k1 | R_0603_1608Metric | R9, R13, R14 |
| 2 | 22R | R_0603_1608Metric | R11, R12 |
| 3 | 150k | R_0603_1608Metric | R17, R19, R31 |
| 2 | 100R | R_0603_1608Metric | R18, R33 |
| 1 | 15k8 | R_0603_1608Metric | R20 |
| 1 | 309k | R_0603_1608Metric | R22 |
| 1 | 100k | R_0603_1608Metric | R23 |
MiniFeedMaster design files
The KiCad project lives in the SG-O/MiniFeedMaster repository on GitHub; these links point at the commit this page was built from.
- LayoutMiniFeedMaster.kicad_pcb
MiniFeedMaster: common questions
What microcontroller does the MiniFeedMaster use?
The MiniFeedMaster is built around the STM32F105Rx, from the STM32 family.
How big is the MiniFeedMaster PCB?
The MiniFeedMaster measures 58.4 × 83.2 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the MiniFeedMaster?
125 components, from 48 distinct parts. The full bill of materials is listed on this page.
Where can I download the MiniFeedMaster design files?
From the SG-O/MiniFeedMaster repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the MiniFeedMaster design in my own project?
Yes, under the terms of its CC-BY-4.0 license, which SG-O chose for the repository.
Can I test firmware for the MiniFeedMaster without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
