About the MiniFeed PCB

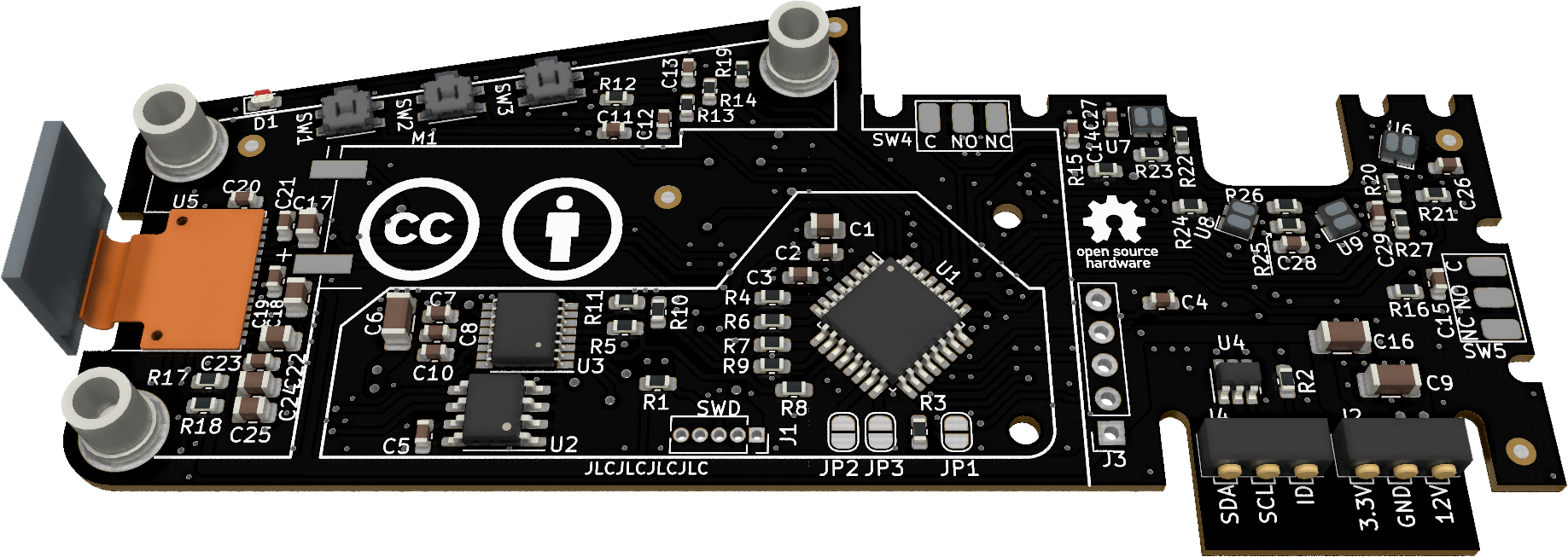

MiniFeed is an open source STM32 PCB design by SG-O, published on GitHub under the CC-BY-4.0 license. It is a 2-layer board measuring 100 × 44.4 mm, with 81 components from 31 distinct parts.
Its main chip is the STM32G031KxT, from the STM32 family. Other key parts include the M24C32, DRV8876, USBLC6-2SC6, VG-7240TSWEG02 and VCNT2020. By type, the board carries 29 capacitors, 27 resistors, 9 ICs, 5 switches, 4 connectors and 1 module.
From the project
Main PCB for automated SMT Feeder
You can find the manufacturing documentation here.

Main components on the MiniFeed
MiniFeed bill of materials (BOM)
81 components, 31 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | STM32G031KxT | LQFP-32_7x7mm_P0.8mm | U1 |
| 1 | M24C32 | SOIC-8_3.9x4.9mm_P1.27mm | U2 |
| 1 | DRV8876 | HTSSOP-16-1EP_4.4x5mm_P0.65mm_EP3.4x5mm_Mask2.46x2.31mm_ThermalVias | U3 |
| 1 | USBLC6-2SC6 | SOT-23-6 | U4 |
| 1 | VG-7240TSWEG02 | VG-7240TSWEG02-mirror | U5 |
| 4 | VCNT2020 | vcnt2020 | U6, U7, U8, U9 |
| 1 | Motor_DC | MotorN20 | M1 |
| 1 | Debug | PinSocket_1x05_P1.27mm_Vertical | J1 |
| 1 | Connector_1 | PogoTarget_P2.5 | J2 |
| 1 | Connector_2 | PogoTarget_P2.5 | J4 |
| 1 | PWR_Out | PinSocket_1x03_P1.27mm_Vertical_SMD_Pin1Left | J5 |
| 1 | CC | CC | G1 |
| 1 | BY | BY | G2 |
| 3 | SolderStandoffM3x5 | SolderStandoffM3x5 | Mech1, Mech2, Mech3 |
| 1 | SW_- | SW_SPST_TS-1065A-B3D4 | SW1 |
| 1 | SW_S | SW_SPST_TS-1065A-B3D4 | SW2 |
| 1 | SW_+ | SW_SPST_TS-1065A-B3D4 | SW3 |
| 1 | Detect1 | MicroSwitchSMDLanding | SW4 |
| 1 | Detect2 | MicroSwitchSMDLanding | SW5 |
| 1 | RED | LED_0603_1608Metric_SIDE | D1 |
Show 11 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 6 | 2u2 | C_0805_2012Metric | C1, C17, C18, C22, C24, C25 |
| 13 | 100n | C_0603_1608Metric | C2, C3, C4, C5, C7, C8, C11, C12 +5 |
| 3 | 10u | C_1206_3216Metric | C6, C9, C16 |
| 1 | 22n | C_0603_1608Metric | C10 |
| 2 | 1u | C_0603_1608Metric | C20, C21 |
| 4 | DNP | C_0603_1608Metric | C26, C27, C28, C29 |
| 9 | 10k | R_0603_1608Metric | R1, R2, R3, R5, R12, R13, R14, R15 +1 |
| 11 | 4k7 | R_0603_1608Metric | R4, R6, R7, R8, R9, R17, R18, R21 +3 |
| 1 | 1k | R_0603_1608Metric | R10 |
| 1 | 20k | R_0603_1608Metric | R11 |
| 5 | 150R | R_0603_1608Metric | R19, R20, R22, R24, R26 |
MiniFeed design files
The KiCad project lives in the SG-O/MiniFeedPCB repository on GitHub; these links point at the commit this page was built from.
- LayoutMiniFeed.kicad_pcb
MiniFeed: common questions
What microcontroller does the MiniFeed use?
The MiniFeed is built around the STM32G031KxT, from the STM32 family.
How big is the MiniFeed PCB?
The MiniFeed measures 100 × 44.4 mm, has 2 copper layers and is 1 mm thick.
How many components are on the MiniFeed?
81 components, from 31 distinct parts. The full bill of materials is listed on this page.
Where can I download the MiniFeed design files?
From the SG-O/MiniFeedPCB repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the MiniFeed design in my own project?
Yes, under the terms of its CC-BY-4.0 license, which SG-O chose for the repository.
Can I test firmware for the MiniFeed without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
