Shah-2024·Pi-Sensor-Hub

Pi-Sensor-Hub PCB layout, top view — open source Raspberry Pi board by Shah-2024

About the Pi-Sensor-Hub PCB

Pi-Sensor-Hub is an open source Raspberry Pi PCB design by Shah-2024, published on GitHub. It is a 2-layer board measuring 54.5 × 26 mm, with 9 components from 6 distinct parts.

Its main chip is the Raspberry_Pi_2_3, from the Raspberry Pi family. By type, the board carries 5 resistors and 4 connectors.

It belongs with the sensors designs in this gallery.

From the project

A custom PCB, designed in KiCAD, that carries the DHT11, INA219, and HC-SR04 sensors from my Industrial IoT OPC UA Monitoring System off a breadboard and onto a dedicated interface board for the Raspberry Pi.

A custom PCB, designed in KiCAD, that carries the DHT11, INA219, and HC-SR04 sensors from my Industrial IoT OPC UA Monitoring System off a breadboard and onto a dedicated interface board for the Raspberry Pi.

The original monitoring system prototyped its sensor wiring on a breadboard, including a manual voltage divider to safely bring the HC-SR04's 5V echo signal down to the Pi's 3.3V GPIO logic level. This board turns that breadboard wiring into a permanent, fabrication-ready PCB that plugs directly onto the Pi's 40-pin GPIO header.

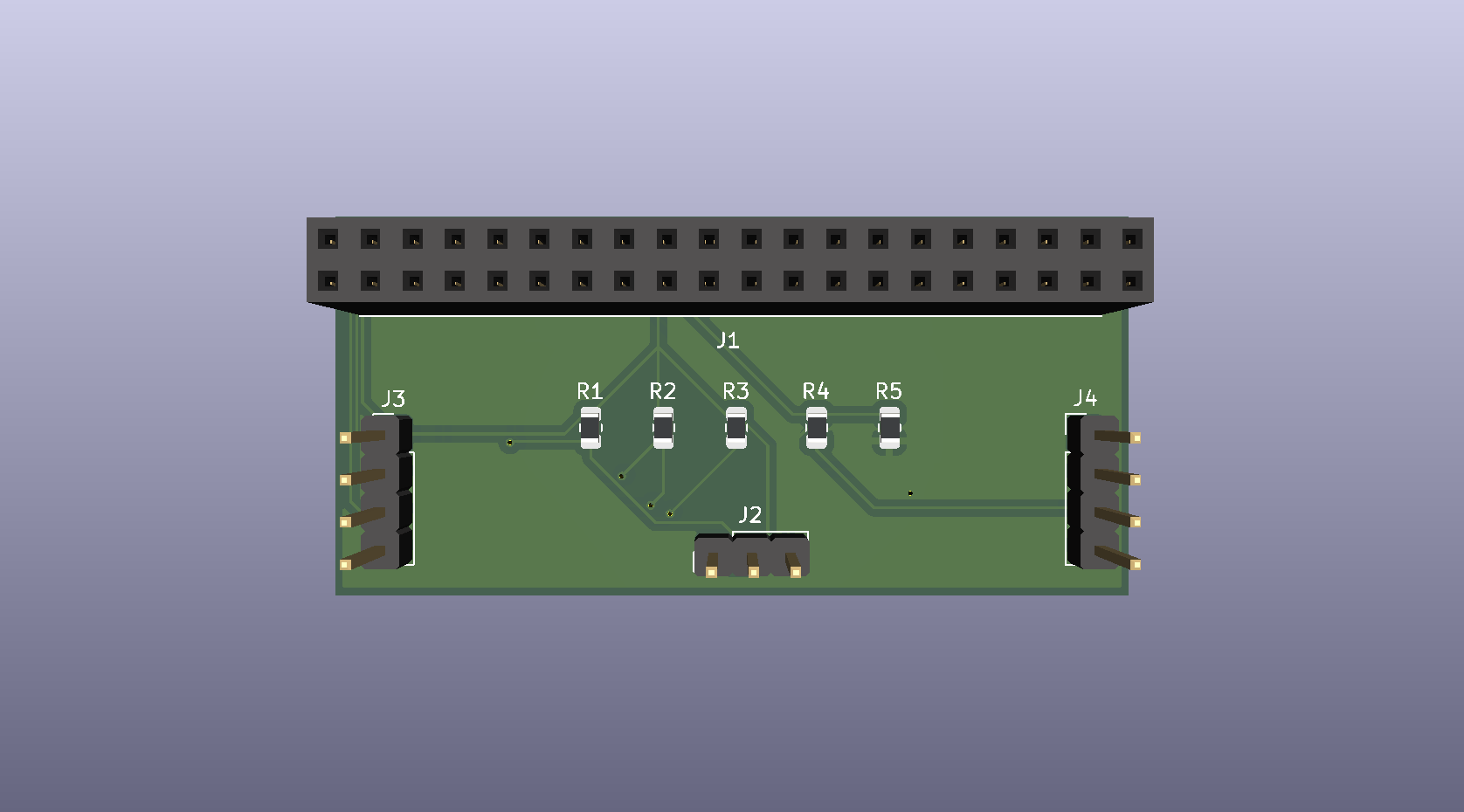

Pi-Sensor-Hub, from the project README
From the project README

Pi-Sensor-Hub bill of materials (BOM)

9 components, 6 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
Raspberry_Pi_2_3
J1
1
Conn_01x03
J2
2
Conn_01x04
J3, J4
3
4.7k
R1, R2, R3
1
1k
R4
1
2k
R5

Pi-Sensor-Hub design files

The KiCad project lives in the Shah-2024/Pi-Sensor-Hub repository on GitHub; these links point at the commit this page was built from.

Pi-Sensor-Hub: common questions

What microcontroller does the Pi-Sensor-Hub use?

The Pi-Sensor-Hub is built around the Raspberry_Pi_2_3, from the Raspberry Pi family.

How big is the Pi-Sensor-Hub PCB?

The Pi-Sensor-Hub measures 54.5 × 26 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Pi-Sensor-Hub?

9 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Pi-Sensor-Hub design files?

From the Shah-2024/Pi-Sensor-Hub repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Pi-Sensor-Hub design in my own project?

The repository has no license, so all rights stay with Shah-2024. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Pi-Sensor-Hub without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Raspberry Pi firmware against it before you order a PCB.
