Phils lab course PCB layout, top view — open source STM32 board by shinkuri

About the Phils lab course PCB

Phils lab course is an open source STM32 PCB design by shinkuri, published on GitHub. It is a 4-layer board measuring 86.3 × 47.9 mm, with 51 components from 37 distinct parts.

Its main chip is the C15742, from the STM32 family. Other key parts include the C14259 and C7519. By type, the board carries 16 capacitors, 16 resistors, 5 connectors, 4 diodes, 3 ICs and 3 inductors.

From the project

Following along Phil's Lab PCB Design courses :D

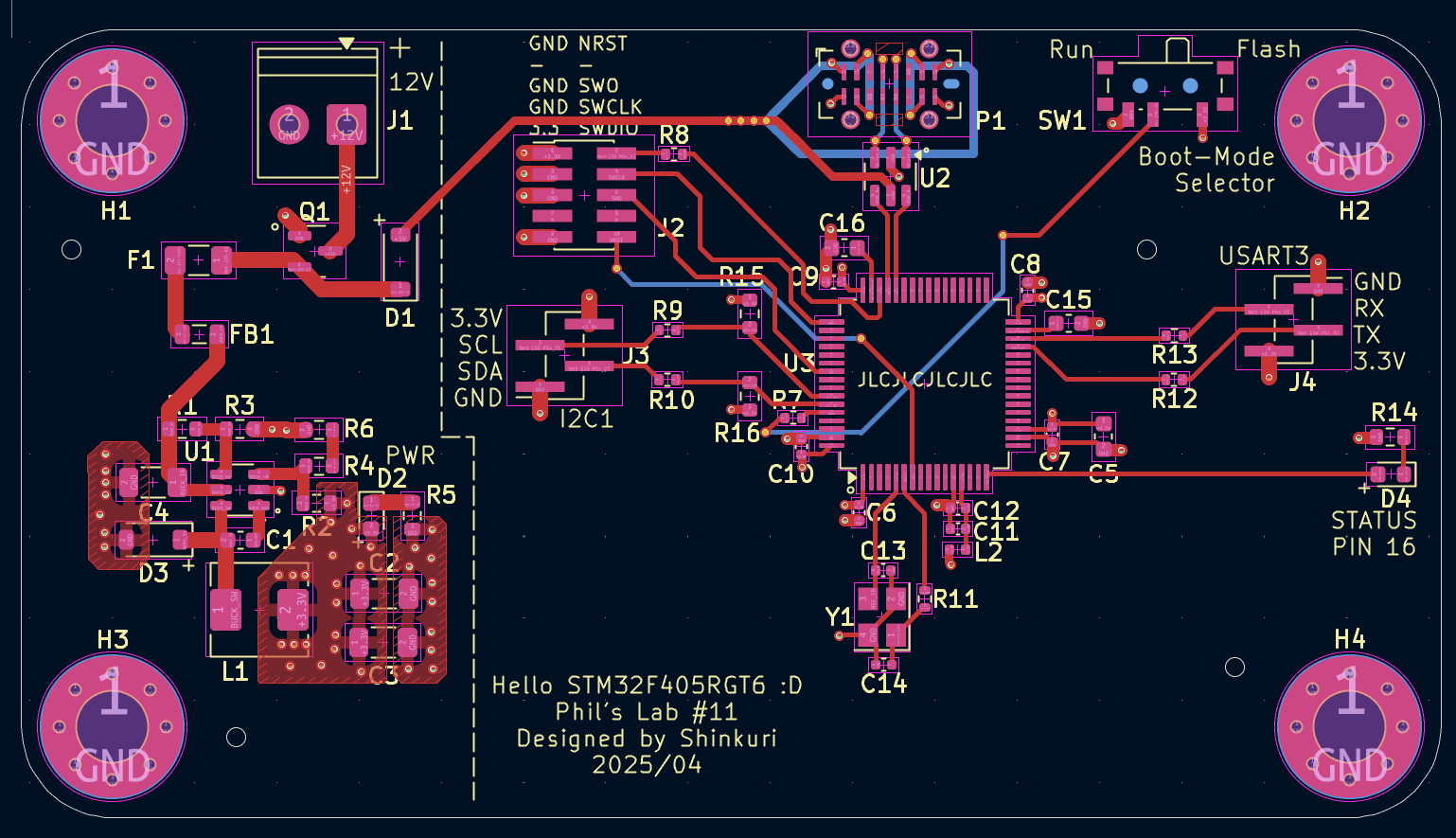

Phils lab course, from the project README
From the project README

Main components on the Phils lab course

C14259C7519C15742

Phils lab course bill of materials (BOM)

51 components, 37 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
C14259
~
U1
1
C7519
USBLC6-2SC6
U2
1
C15742
STM32F405RGT6
U3
1
C15127
AO3401A
Q1
1
C13738
16Mhz
Y1
1
Screw_Terminal_01x02
J1
1
SWD
J2
1
I2C1
J3
1
USART3
J4
1
C2843970
USB_C_Plug_USB2.0
P1
1
C369159
250mA
F1
1
SW_SPDT
SW1
2
C8598
B5819W
D1, D3
1
C2286
GREEN
D2
1
C72041
BLUE
D4
1
C1017
600 @ 600Mhz
FB1
1
C139506
10u
L1
1
C26443
39n
L2
1
C57112
10n
C1
3
C13585
10u
C2, C3, C4
Show 17 more
QtyPartRefs
1
C19666
4u7
C5
5
C1525
100n
C6, C7, C8, C9, C10
1
C52923
1u
C11
1
C15195
10n
C12
2
C1547
12p
C13, C14
2
C23630
2u2
C15, C16
1
C25803
100k
R1
1
C25819
47k
R2
1
C23231
68k
R3
1
C22809
15k
R4
1
C21190
1k
R5
1
C22966
270
R6
1
C25804
10k
R7
5
C25092
22
R8, R9, R10, R12, R13
1
C25118
47
R11
1
C22843
1k5
R14
2
C4190
2k2
R15, R16

Phils lab course design files

The KiCad project lives in the shinkuri/phils-lab-course repository on GitHub; these links point at the commit this page was built from.

Phils lab course: common questions

What microcontroller does the Phils lab course use?

The Phils lab course is built around the C15742, from the STM32 family.

How big is the Phils lab course PCB?

The Phils lab course measures 86.3 × 47.9 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Phils lab course?

51 components, from 37 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Phils lab course design files?

From the shinkuri/phils-lab-course repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Phils lab course design in my own project?

The repository has no license, so all rights stay with shinkuri. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Phils lab course without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
