About the Memory game PCB
Memory game is an open source PCB design by siddhipatel911, published on GitHub under the MIT license. It is a 2-layer board measuring 82.6 × 62.2 mm, with 11 components from 4 distinct parts.
By type, the board carries 3 switches, 3 diodes, 3 resistors and 2 connectors.
It belongs with the dev boards & breakouts designs in this gallery.
From the project

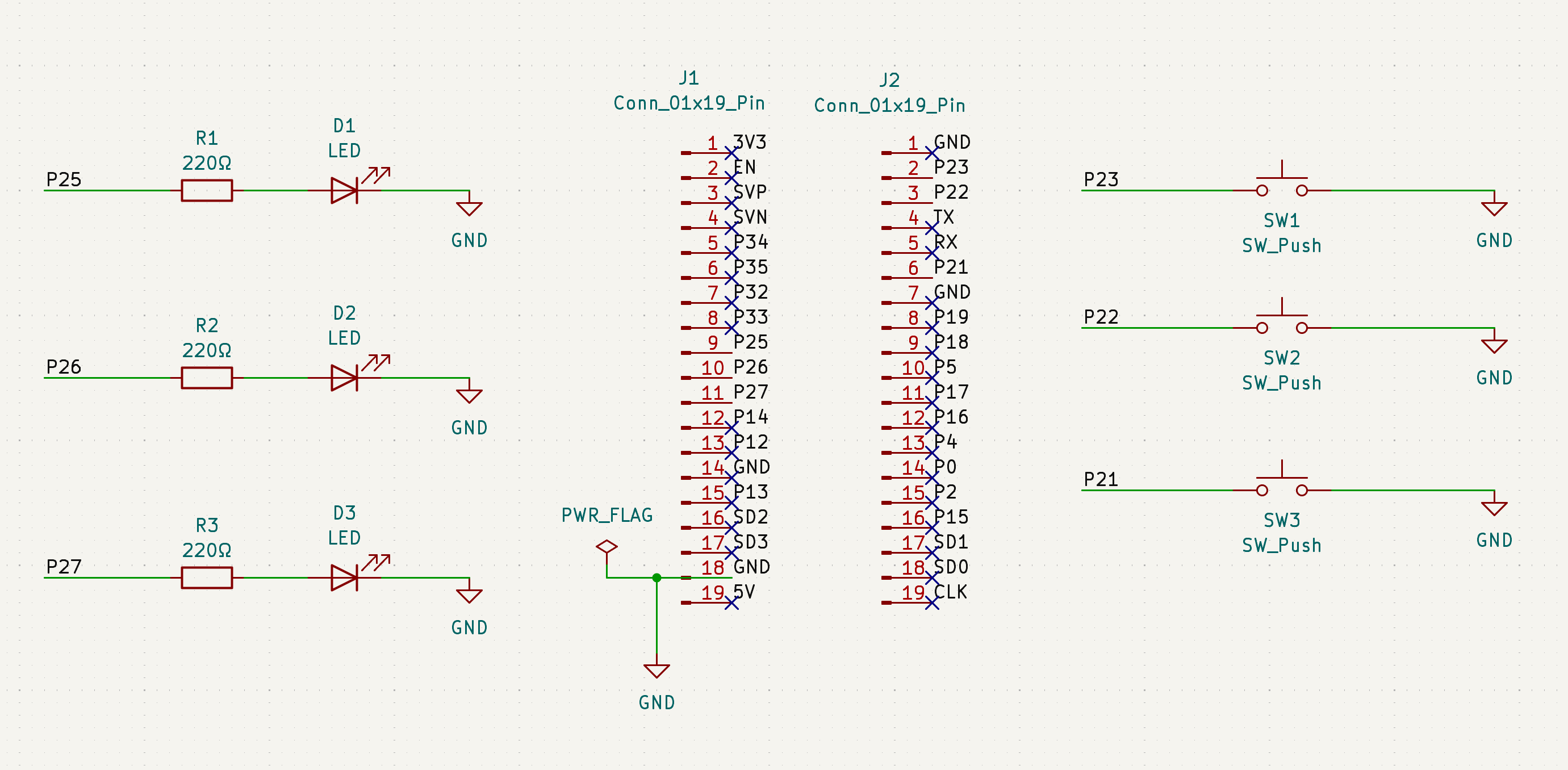

Custom ESP32-based memory game with KiCad PCB design - sponsored by PCBWay (simplified version of my Delirium Memory Game)
A custom ESP32-based memory game built on a hand-designed PCB. This is a learning project covering embedded firmware, schematic design, and PCB layout.
This repository is a simplified hardware redesign of the original Delirium Memory Game project.
The original project focused on a more advanced RGB memory game system with expanded gameplay logic and additional hardware features.

Memory game bill of materials (BOM)
11 components, 4 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | Conn_01x19_Pin | PinSocket_1x19_P2.54mm_Vertical | J1, J2 |
| 3 | SW_Push | SW_PUSH_6mm | SW1, SW2, SW3 |
| 3 | LED | LED_D5.0mm | D1, D2, D3 |
| 3 | 220Ω | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1, R2, R3 |
Memory game design files
The KiCad project lives in the siddhipatel911/memory-game-pcb repository on GitHub; these links point at the commit this page was built from.
Memory game: common questions
How big is the Memory game PCB?
The Memory game measures 82.6 × 62.2 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Memory game?
11 components, from 4 distinct parts. The full bill of materials is listed on this page.
Where can I download the Memory game design files?
From the siddhipatel911/memory-game-pcb repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Memory game design in my own project?
Yes, under the terms of its MIT license, which siddhipatel911 chose for the repository.
