SOICbite SWD

SimonMerrett·SOICbite·adaptors/SOICbite_SWD/SOICbite_SWD.kicad_pcb

SOICbite SWD PCB layout, top view — open source board by SimonMerrett
Simulate this board

About the SOICbite SWD PCB

SOICbite SWD is an open source PCB design by SimonMerrett, published on GitHub under the BSD-2-Clause license. It is a 2-layer board measuring 39.8 × 13.1 mm, with 4 components from 4 distinct parts.

It belongs with the usb & debug tools designs in this gallery.

From the project

A compact PCB footprint which allows SOIC test clips to be used as a space-efficient programming and debugging connector

1. Standard Cortex Debug connector - VCC, GND, SWDIO, SWCLK, SWO and NRST pins are broken out 2. 4-Pin 2.54" Header - VCC, SWDIO, SWCLK, GND are broken out

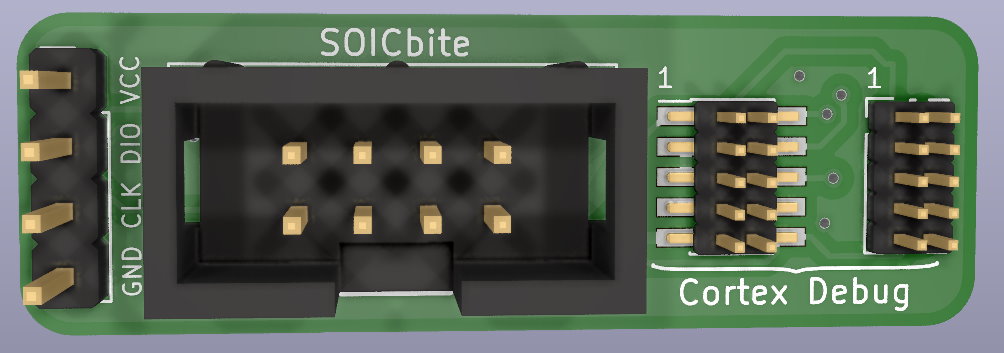

SOICbite SWD, from the project README
From the project README

SOICbite SWD bill of materials (BOM)

4 components, 4 distinct parts.

QtyPartRefs
1
Conn_ARM_JTAG_SWD_10
J1
1
SOICBite IDC Header
J2
1
Conn_01x04_Male
J3
1
Conn_ARM_JTAG_SWD_10
J4

SOICbite SWD design files

The KiCad project lives in the SimonMerrett/SOICbite repository on GitHub; these links point at the commit this page was built from.

SOICbite SWD: common questions

How big is the SOICbite SWD PCB?

The SOICbite SWD measures 39.8 × 13.1 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the SOICbite SWD?

4 components, from 4 distinct parts. The full bill of materials is listed on this page.

Where can I download the SOICbite SWD design files?

From the SimonMerrett/SOICbite repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the SOICbite SWD design in my own project?

Yes, under the terms of its BSD-2-Clause license, which SimonMerrett chose for the repository.
