About the Fract PCB

Fract is an open source PCB design by skarrmann, published on GitHub under the MIT license. It is a 2-layer board measuring 180 × 75 mm, with 72 components from 6 distinct parts.

Other key parts include the nice!nano. By type, the board carries 34 switches, 34 diodes, 1 IC and 1 connector.

It belongs with the keyboards, iot & wireless and dev boards & breakouts designs in this gallery.

From the project

34 key wireless ortholinear keyboard with self-encasing PCB.

Fract is a 34 key ortholinear keyboard, powered by a bluetooth-enabled Pro Micro compatible dev board.

It uses Choc v1 keyswitches with 18mm x 17mm spacing.

The goal of this design was to build a simple pocketable keyboard out of PCBs.

gerbers: Gerber files for PCB manufacturing graphics: Source assets for PCB silkscreen kicad: KiCad project files (schematics and PCB designs) kicad-libraries: KiCad components and footprints images`: Images for project documentation

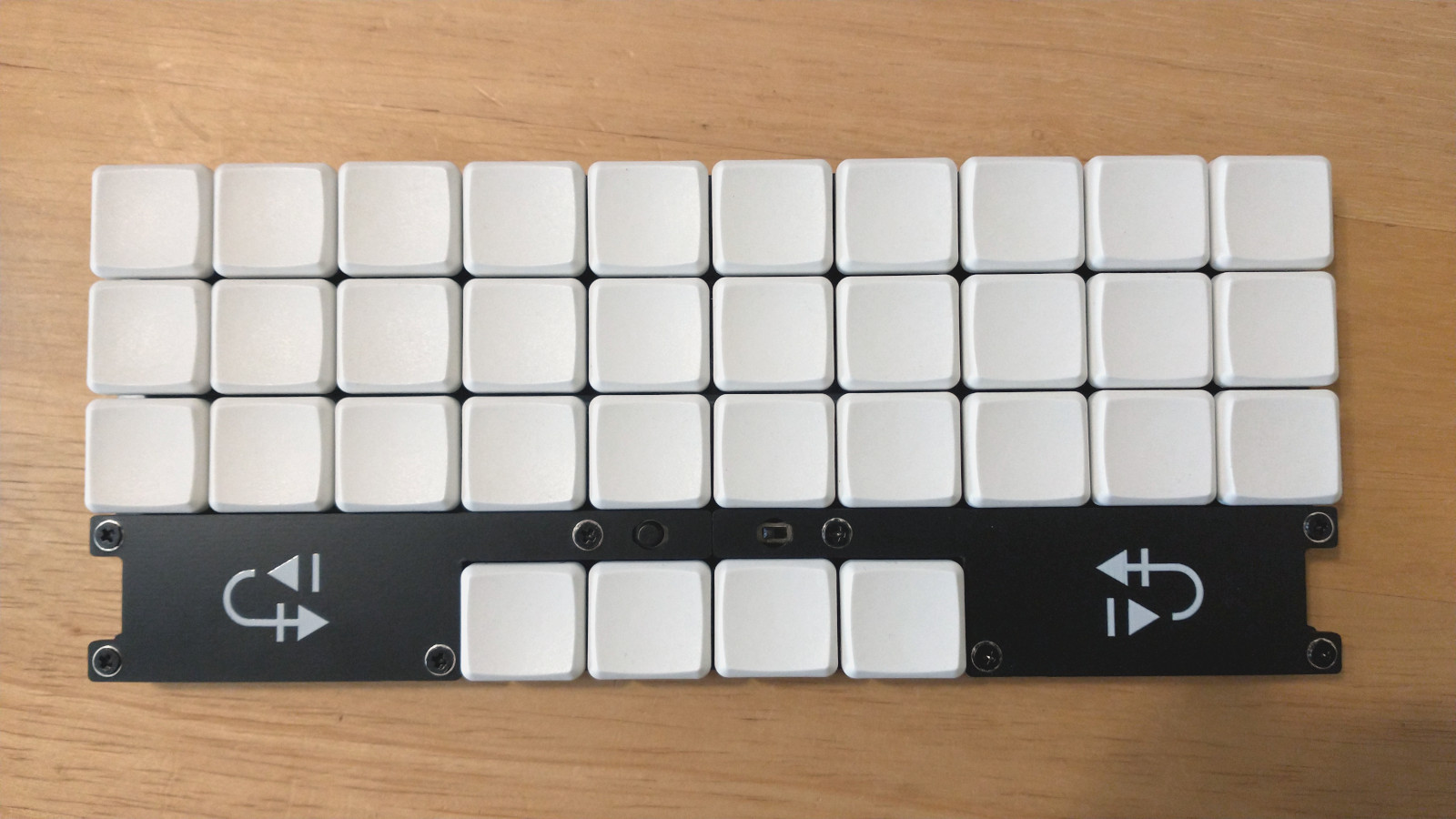

Fract, from the project README
From the project README

Main components on the Fract

nice!nano

Fract bill of materials (BOM)

72 components, 6 distinct parts.

QtyPartRefs
1
nice!nano
U1
1
Conn_01x02
J1
1
RESET
BTN1
1
SW_SPDT
SPDT1
34
SW_Push
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +26
34
D
D1, D2, D3, D4, D5, D6, D7, D8 +26

Fract design files

The KiCad project lives in the skarrmann/fract repository on GitHub; these links point at the commit this page was built from.

Fract: common questions

How big is the Fract PCB?

The Fract measures 180 × 75 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Fract?

72 components, from 6 distinct parts. The full bill of materials is listed on this page.

Where can I download the Fract design files?

From the skarrmann/fract repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Fract design in my own project?

Yes, under the terms of its MIT license, which skarrmann chose for the repository.
