Max7 proto
About the Max7 proto PCB
Max7 proto is an open source PCB design by skiselev, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 20.3 × 52.1 mm, with 21 components from 12 distinct parts.
Other key parts include the EPM7064AETC44 and TPS79333-EP. By type, the board carries 9 capacitors, 5 resistors, 3 connectors, 2 ICs, 1 crystal and 1 diode.
It belongs with the dev boards & breakouts designs in this gallery.
From the project

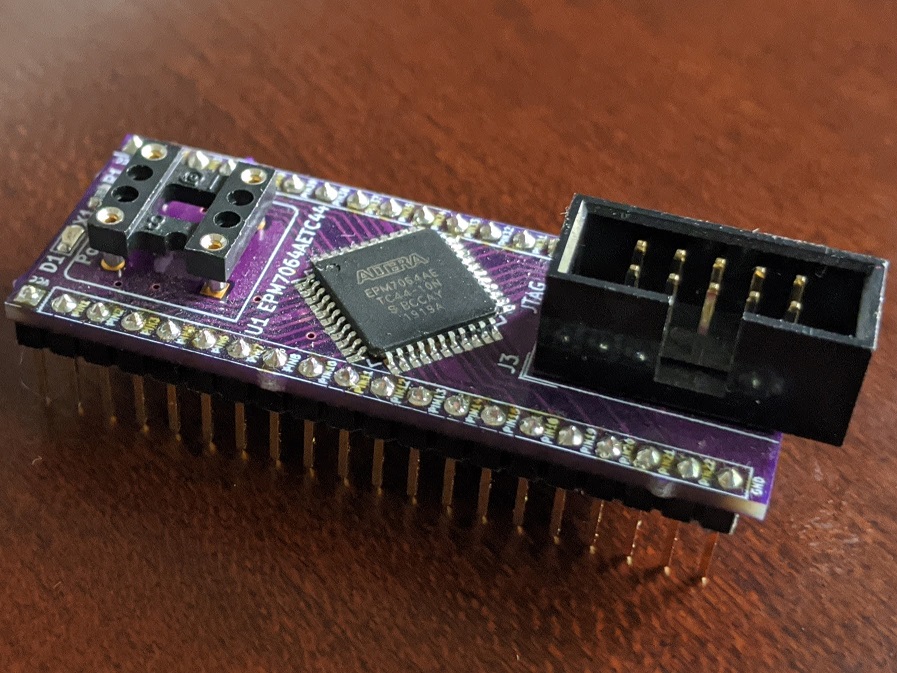

Prototyping Board for Altera MAX7000 CPLDs
MAX7 Proto is a prototyping board based on Altera MAX7000 series CPLDs. The board has pin headers on both sides, and it can be easily mounted on a breadboard. It also includes a 3.3V LDO, so that MAX7000AE CPLDs can be used. A DIP-8 oscillator socket is provided for the designs that requre a clock.
MAX7_Proto project on Mouser.com - View and order all components except of the PCB.
Main components on the Max7 proto
Max7 proto bill of materials (BOM)
21 components, 12 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | EPM7064AETC44 | TQFP-44_10x10mm_P0.8mm | U1 |
| 1 | TPS79333-EP | SOT-23-5_HandSoldering | U2 |
| 1 | CXO_DIP8 | Oscillator_DIP-8 | X1 |
| 1 | Pins_1 | PinHeader_1x20_P2.54mm_Vertical | J1 |
| 1 | Pins_2 | PinHeader_1x20_P2.54mm_Vertical | J2 |
| 1 | JTAG | IDC-Header_2x05_P2.54mm_Vertical | J3 |
| 1 | Power | LED_0603_1608Metric_Pad1.05x0.95mm_HandSolder | D1 |
| 1 | 10nF | C_0603_1608Metric_Pad1.05x0.95mm_HandSolder | C1 |
| 6 | 100nF | C_0603_1608Metric_Pad1.05x0.95mm_HandSolder | C2, C3, C4, C5, C6, C7 |
| 2 | 10uF | CP_EIA-3216-10_Kemet-I_Pad1.58x1.35mm_HandSolder | C8, C9 |
| 1 | 1k | R_0603_1608Metric_Pad1.05x0.95mm_HandSolder | R1 |
| 4 | 10k | R_0603_1608Metric_Pad1.05x0.95mm_HandSolder | R2, R3, R4, R5 |
Max7 proto design files
The KiCad project lives in the skiselev/max7_proto repository on GitHub; these links point at the commit this page was built from.
Max7 proto: common questions
How big is the Max7 proto PCB?
The Max7 proto measures 20.3 × 52.1 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Max7 proto?
21 components, from 12 distinct parts. The full bill of materials is listed on this page.
Where can I download the Max7 proto design files?
From the skiselev/max7_proto repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Max7 proto design in my own project?
Yes, under the terms of its GPL-3.0 license, which skiselev chose for the repository.
