Adapter

smartgauges·usb2most·adapter-lr2/adapter.kicad_pcb

Adapter PCB layout, top view — open source board by smartgauges
Simulate this board

About the Adapter PCB

Adapter is an open source PCB design by smartgauges, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 40 × 70 mm, with 13 components from 7 distinct parts.

By type, the board carries 10 connectors and 3 resistors.

It belongs with the usb & debug tools designs in this gallery.

From the project

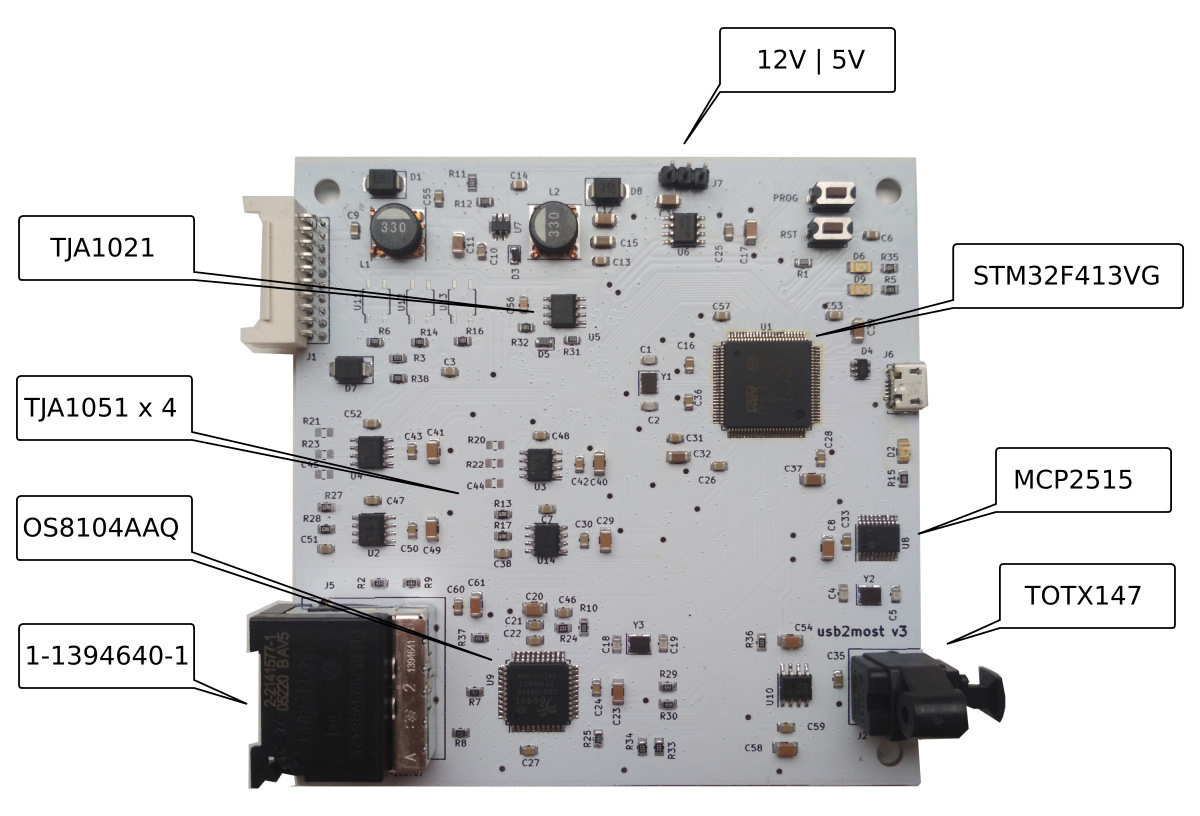

USB to MOST adapter

Interfaces: - 8 audio channels(16bit/48kHz) over MOST bus - 2 audio channels(16bit/48kHz) over USB - 4 CAN for HS/HS" and MS/MS" - 1 LIN for analogue watch - 1 UART for CANBUS emulation

Adapter, from the project README
From the project README

Adapter bill of materials (BOM)

13 components, 7 distinct parts.

QtyPartRefs
1
Conn_01x10_Male
J1
2
Conn_01x10_Male
J2, J5
1
Conn_01x07_Male
J3
2
Conn_01x04_Male
J4, J9
2
Conn_01x03_Male
J6, J7
2
Conn_01x02_Male
J8, J10
3
0
R1, R2, R3

Adapter design files

The KiCad project lives in the smartgauges/usb2most repository on GitHub; these links point at the commit this page was built from.

Adapter: common questions

How big is the Adapter PCB?

The Adapter measures 40 × 70 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Adapter?

13 components, from 7 distinct parts. The full bill of materials is listed on this page.

Where can I download the Adapter design files?

From the smartgauges/usb2most repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Adapter design in my own project?

Yes, under the terms of its GPL-3.0 license, which smartgauges chose for the repository.
