STM32F103-DevBoard PCB layout, top view — open source STM32 board by soghayarmahmoud

About the STM32F103-DevBoard PCB

STM32F103-DevBoard is an open source STM32 PCB design by soghayarmahmoud, published on GitHub under the CERN-OHL-S-2.0 license. It is a 2-layer board measuring 56.6 × 35.8 mm, with 28 components from 16 distinct parts.

Its main chip is the STM32F103C8T6, from the STM32 family. Other key parts include the AMS1117-3.3. By type, the board carries 13 capacitors, 5 resistors, 4 connectors, 2 ICs, 1 crystal and 1 switch.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

An open-source, minimal footprint STM32F103C8T6 development board designed in KiCad, featuring dedicated I2C and USB interfaces.

This repository documents the complete design and fabrication files for a compact, USB-powered development and evaluation board built around the STM32F103C8T6 microcontroller (ARM Cortex-M3 core). The board is intended to serve as a minimal, self-contained platform for rapid hardware prototyping and peripheral evaluation.

The design breaks out essential MCU peripherals to accessible headers, with particular emphasis on a dedicated I2C expansion interface to facilitate straightforward integration with standard sensors, displays, EEPROMs, and other I2C-compatible devices. The overarching…

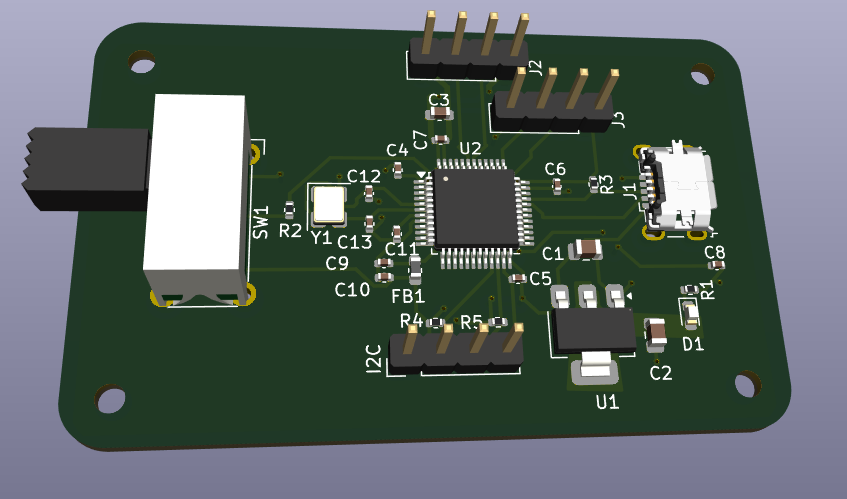

STM32F103-DevBoard, from the project README
From the project README

Main components on the STM32F103-DevBoard

AMS1117-3.3STM32F103C8T6

STM32F103-DevBoard bill of materials (BOM)

28 components, 16 distinct parts.

QtyPartRefs
1
AMS1117-3.3
U1
1
STM32F103C8T6
U2
1
16MHz
Y1
1
USB_B_Micro
J1
3
Conn_01x04_Pin
J2, J3, J4
1
SW_SPDT
SW1
1
RED
D1
1
120R
FB1
2
22u
C1, C2
1
10u
C3
5
100n
C4, C5, C6, C7, C11
1
10n
C8
2
1u
C9, C10
2
10p
C12, C13
4
1k5
R1, R3, R4, R5
1
10K
R2

STM32F103-DevBoard design files

The KiCad project lives in the soghayarmahmoud/STM32F103-DevBoard repository on GitHub; these links point at the commit this page was built from.

STM32F103-DevBoard: common questions

What microcontroller does the STM32F103-DevBoard use?

The STM32F103-DevBoard is built around the STM32F103C8T6, from the STM32 family.

How big is the STM32F103-DevBoard PCB?

The STM32F103-DevBoard measures 56.6 × 35.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the STM32F103-DevBoard?

28 components, from 16 distinct parts. The full bill of materials is listed on this page.

Where can I download the STM32F103-DevBoard design files?

From the soghayarmahmoud/STM32F103-DevBoard repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the STM32F103-DevBoard design in my own project?

Yes, under the terms of its CERN-OHL-S-2.0 license, which soghayarmahmoud chose for the repository.

Can I test firmware for the STM32F103-DevBoard without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
