Kicad adafruit ds3231

solar-cooker-UHasselt·kicad-adafruit-ds3231

Kicad adafruit ds3231 PCB layout, top view — open source board by solar-cooker-UHasselt

About the Kicad adafruit ds3231 PCB

Kicad adafruit ds3231 is an open source PCB design by solar-cooker-UHasselt, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 22.9 × 17.8 mm, with 5 components from 4 distinct parts.

Other key parts include the DS3231M+TRL. By type, the board carries 2 resistors, 1 IC, 1 connector and 1 capacitor.

It belongs with the power & battery and dev boards & breakouts designs in this gallery.

From the project

KiCad port of the Adafruit DS3231 breakout: precision real-time clock

A breakout board for the DS3231, a precision real-time clock with a built-in temperature-compensated crystal and a CR1220 coin cell that keeps the time without power. It is a KiCad 10 port of Adafruit's DS3231 breakout, originally drawn in Eagle.

In the solar cooker testing station, the firmware (arduino-code) reads the date and time from it over I²C to stamp every measurement and to name the CSV files on the microSD card.

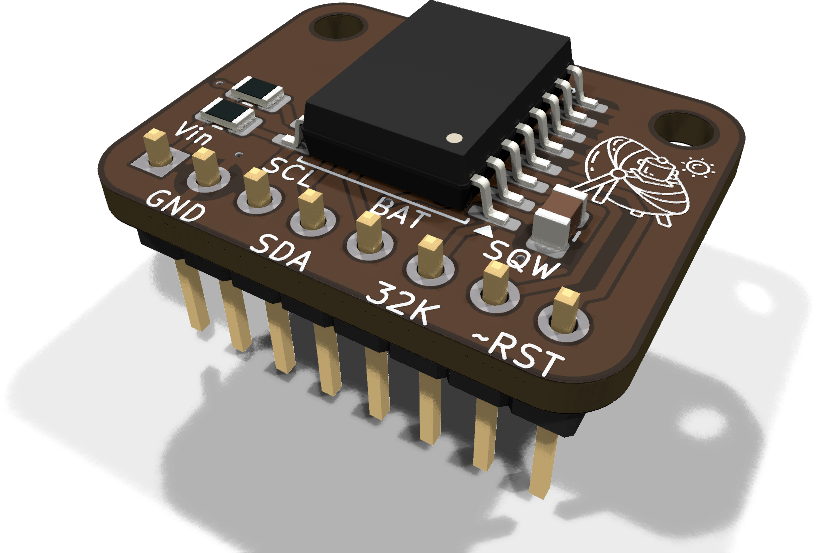

Kicad adafruit ds3231, from the project README
From the project README

Main components on the Kicad adafruit ds3231

DS3231M+TRL

Kicad adafruit ds3231 bill of materials (BOM)

5 components, 4 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
DS3231M+TRL
DS3231
Analog Devices Inc./Maxim Integrated
IC1
1
TSW-108-23-G-S
Conn_01x08_Pin
Samtec Inc.
J1
1
/
1uF
/
C1
2
/
10k
/
R1, R2

Kicad adafruit ds3231 design files

The KiCad project lives in the solar-cooker-UHasselt/kicad-adafruit-ds3231 repository on GitHub; these links point at the commit this page was built from.

Kicad adafruit ds3231: common questions

How big is the Kicad adafruit ds3231 PCB?

The Kicad adafruit ds3231 measures 22.9 × 17.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Kicad adafruit ds3231?

5 components, from 4 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Kicad adafruit ds3231 design files?

From the solar-cooker-UHasselt/kicad-adafruit-ds3231 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Kicad adafruit ds3231 design in my own project?

Yes, under the terms of its CC-BY-SA-4.0 license, which solar-cooker-UHasselt chose for the repository.
