Roctec 26-pin to Gotek Adapter

solarmon·PCB-Projects·Roctec 26-pin to Gotek Adapter/Roctec 26-pin to Gotek Adapter.kicad_pcb

Roctec 26-pin to Gotek Adapter PCB layout, top view — open source board by solarmon

About the Roctec 26-pin to Gotek Adapter PCB

Roctec 26-pin to Gotek Adapter is an open source PCB design by solarmon, published on GitHub. It is a 2-layer board measuring 58.3 × 11.2 mm, with 3 components from 3 distinct parts.

From the project

Miscellaneous PCB projects

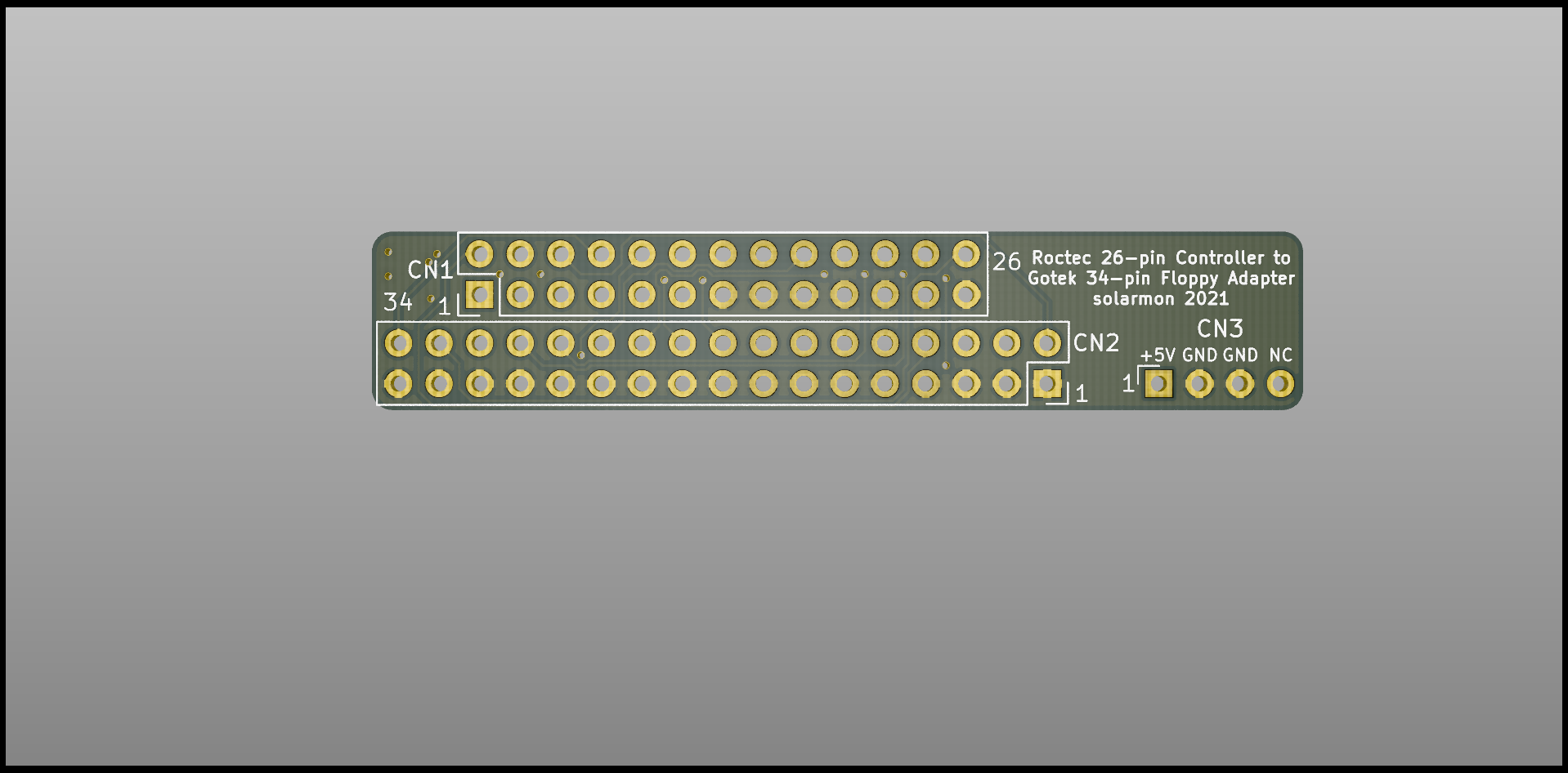

Roctec 26-pin to Gotek Adapter, from the project README
From the project README

Roctec 26-pin to Gotek Adapter bill of materials (BOM)

3 components, 3 distinct parts.

QtyPartRefs
1
Conn_02x13_Odd_Even
CN1
1
Conn_02x17_Odd_Even
CN2
1
Conn_01x04
CN3

Roctec 26-pin to Gotek Adapter design files

The KiCad project lives in the solarmon/PCB-Projects repository on GitHub; these links point at the commit this page was built from.

Roctec 26-pin to Gotek Adapter: common questions

How big is the Roctec 26-pin to Gotek Adapter PCB?

The Roctec 26-pin to Gotek Adapter measures 58.3 × 11.2 mm, has 2 copper layers and is 0.8 mm thick.

How many components are on the Roctec 26-pin to Gotek Adapter?

3 components, from 3 distinct parts. The full bill of materials is listed on this page.

Where can I download the Roctec 26-pin to Gotek Adapter design files?

From the solarmon/PCB-Projects repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Roctec 26-pin to Gotek Adapter design in my own project?

The repository has no license, so all rights stay with solarmon. Use it as a reference, and ask the author before reusing the design.
