Amiga DF0 DF1 Switcher - Design B - Rev 2

solarmon·PCB-Projects·Amiga DF0 DF1 Switcher - Design B - Rev 2/Amiga DF0 DF1 Switcher - Design B - Rev 2.kicad_pcb

Amiga DF0 DF1 Switcher - Design B - Rev 2 PCB layout, top view — open source board by solarmon

About the Amiga DF0 DF1 Switcher - Design B - Rev 2 PCB

Amiga DF0 DF1 Switcher - Design B - Rev 2 is an open source PCB design by solarmon, published on GitHub. It is a 2-layer board measuring 68.8 × 30.6 mm, with 9 components from 8 distinct parts.

By type, the board carries 7 connectors, 1 jumper and 1 switch.

It belongs with the retro computing designs in this gallery.

From the project

Miscellaneous PCB projects

This is an Amiga A500/A500+ DF0/DF1 Switcher. It has been designed to sit directly on the floppy drive power and data ports and splits them out so that two internal drives can be connected.

DF0 / DF1 Switcher - this switches DF0 and DF1 between the two internal drives. DF0 Selector - this switches only DF0 between the two internal drive - so only one drive will be DF0.

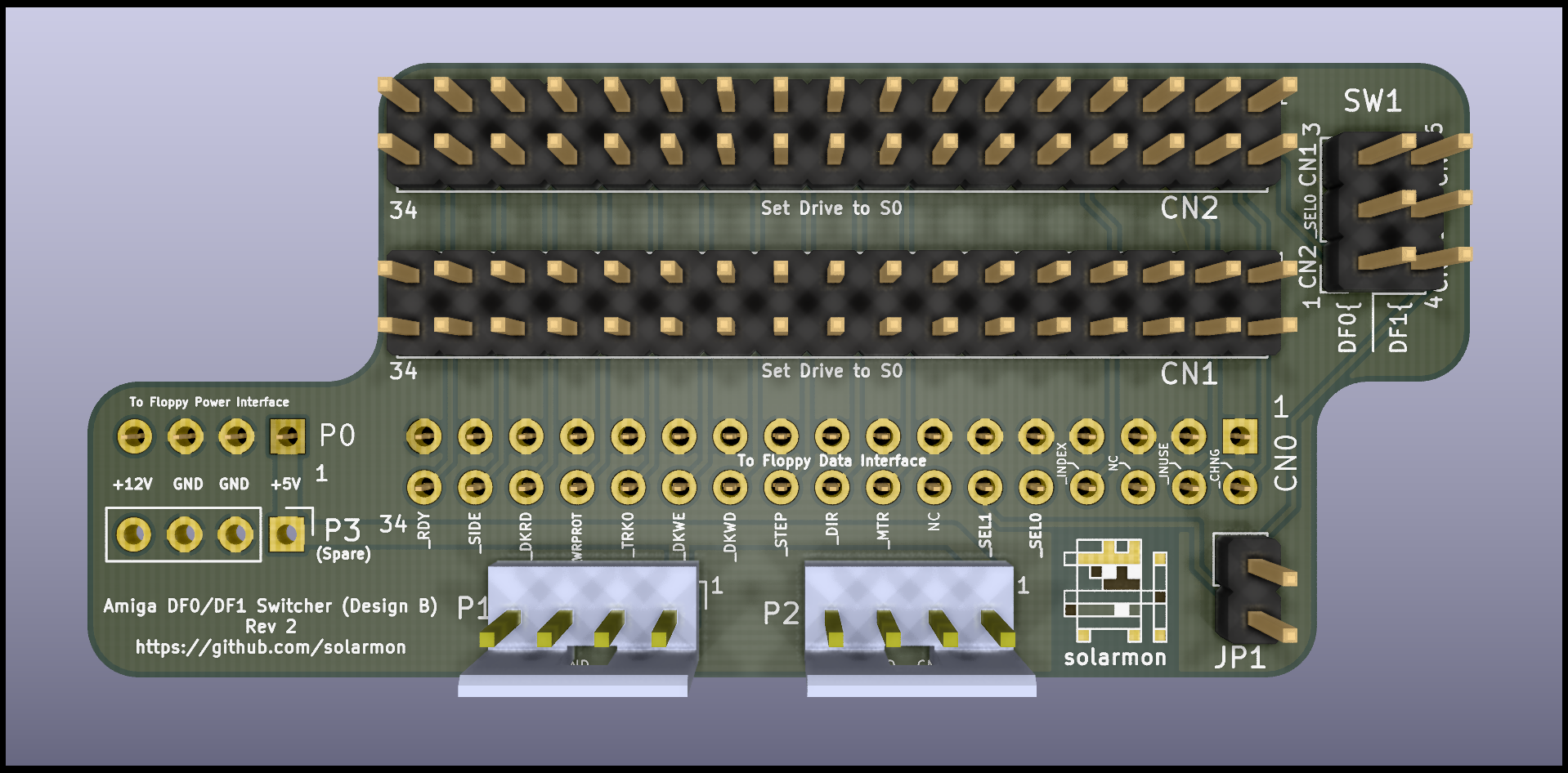

Amiga DF0 DF1 Switcher - Design B - Rev 2, from the project README
From the project README

Amiga DF0 DF1 Switcher - Design B - Rev 2 bill of materials (BOM)

9 components, 8 distinct parts.

QtyPartRefs
1
Conn_02x17_Odd_Even
CN0
2
Conn_02x17_Odd_Even
CN1, CN2
1
Floppy Power #0
P0
1
Floppy Power #1
P1
1
Floppy Power #2
P2
1
(Spare)
P3
1
Jumper_NC_Small
JP1
1
SW_DPDT_x2
SW1

Amiga DF0 DF1 Switcher - Design B - Rev 2 design files

The KiCad project lives in the solarmon/PCB-Projects repository on GitHub; these links point at the commit this page was built from.

Amiga DF0 DF1 Switcher - Design B - Rev 2: common questions

How big is the Amiga DF0 DF1 Switcher - Design B - Rev 2 PCB?

The Amiga DF0 DF1 Switcher - Design B - Rev 2 measures 68.8 × 30.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Amiga DF0 DF1 Switcher - Design B - Rev 2?

9 components, from 8 distinct parts. The full bill of materials is listed on this page.

Where can I download the Amiga DF0 DF1 Switcher - Design B - Rev 2 design files?

From the solarmon/PCB-Projects repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Amiga DF0 DF1 Switcher - Design B - Rev 2 design in my own project?

The repository has no license, so all rights stay with solarmon. Use it as a reference, and ask the author before reusing the design.
