Amiga A500 Keyboard Connector Breakout

solarmon·PCB-Projects·Amiga A500 Keyboard Connector Breakout/Amiga A500 Keyboard Connector Breakout.kicad_pcb

Amiga A500 Keyboard Connector Breakout layout, top view — open source board by solarmon
Simulate this board

About the Amiga A500 Keyboard Connector Breakout

Amiga A500 Keyboard Connector Breakout is an open source PCB design by solarmon, published on GitHub. It is a 2-layer board measuring 25.4 × 23 mm, with 11 components from 5 distinct parts.

By type, the board carries 5 connectors, 3 diodes and 3 resistors.

It belongs with the keyboards, dev boards & breakouts and retro computing designs in this gallery.

From the project

Miscellaneous PCB projects

This is a breakout board for the A500/A500+ keyboard connector to allow access to the signals on it.

The keyboard connector has the following pinouts and signals:

1. KBCLOCK 2. KBDATA 3. _KBRESET 4. +5V 5. (KEY) 6. GND 7. STATUS (POWER LED) 8. INUSE (DRIVE LED)

The board provides a female header at the bottom of the board that sits on the keyboard connector on the motherboard, and provides two sets of corresponding header pins - one for the keyboard plug to connect to and the other for as per user requirements.

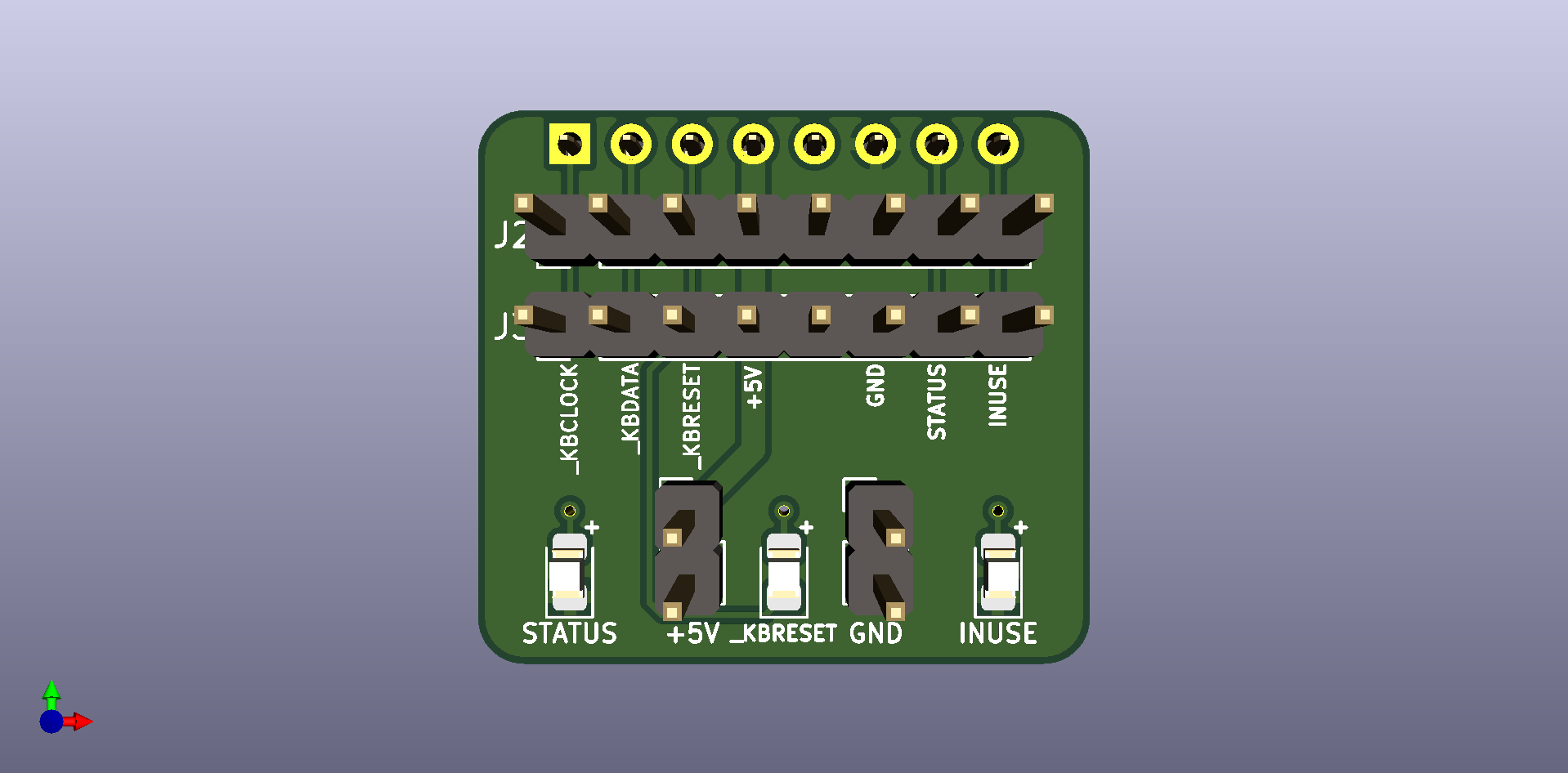

Amiga A500 Keyboard Connector Breakout, from the project README
From the project README

Amiga A500 Keyboard Connector Breakout bill of materials (BOM)

11 components, 5 distinct parts.

QtyPartRefs
1
Conn_01x08
J1
2
Conn_01x08
J2, J3
2
Conn_01x02
P1, P2
3
LED
D1, D2, D3
3
4K7
R1, R2, R3

Amiga A500 Keyboard Connector Breakout design files

The KiCad project lives in the solarmon/PCB-Projects repository on GitHub; these links point at the commit this page was built from.

Amiga A500 Keyboard Connector Breakout: common questions

How big is the Amiga A500 Keyboard Connector Breakout?

The Amiga A500 Keyboard Connector Breakout measures 25.4 × 23 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Amiga A500 Keyboard Connector Breakout?

11 components, from 5 distinct parts. The full bill of materials is listed on this page.

Where can I download the Amiga A500 Keyboard Connector Breakout design files?

From the solarmon/PCB-Projects repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Amiga A500 Keyboard Connector Breakout design in my own project?

The repository has no license, so all rights stay with solarmon. Use it as a reference, and ask the author before reusing the design.
