Display-OLED-I2C-Blue-0.96-hardware design
About the Display-OLED-I2C-Blue-0.96-hardware design PCB
Display-OLED-I2C-Blue-0.96-hardware design is an open source PCB design by SolderedElectronics, published on GitHub under the TAPR-OHL-1.0 license. It is a 2-layer board measuring 30 × 30 mm, with 36 components from 17 distinct parts.
Other key parts include the NMOS-DUAL, SE5218 and OLED_GME12864_30p. By type, the board carries 10 capacitors, 9 resistors, 6 jumpers, 3 ICs, 3 relays and 1 diode.
It belongs with the displays & leds designs in this gallery.
From the project

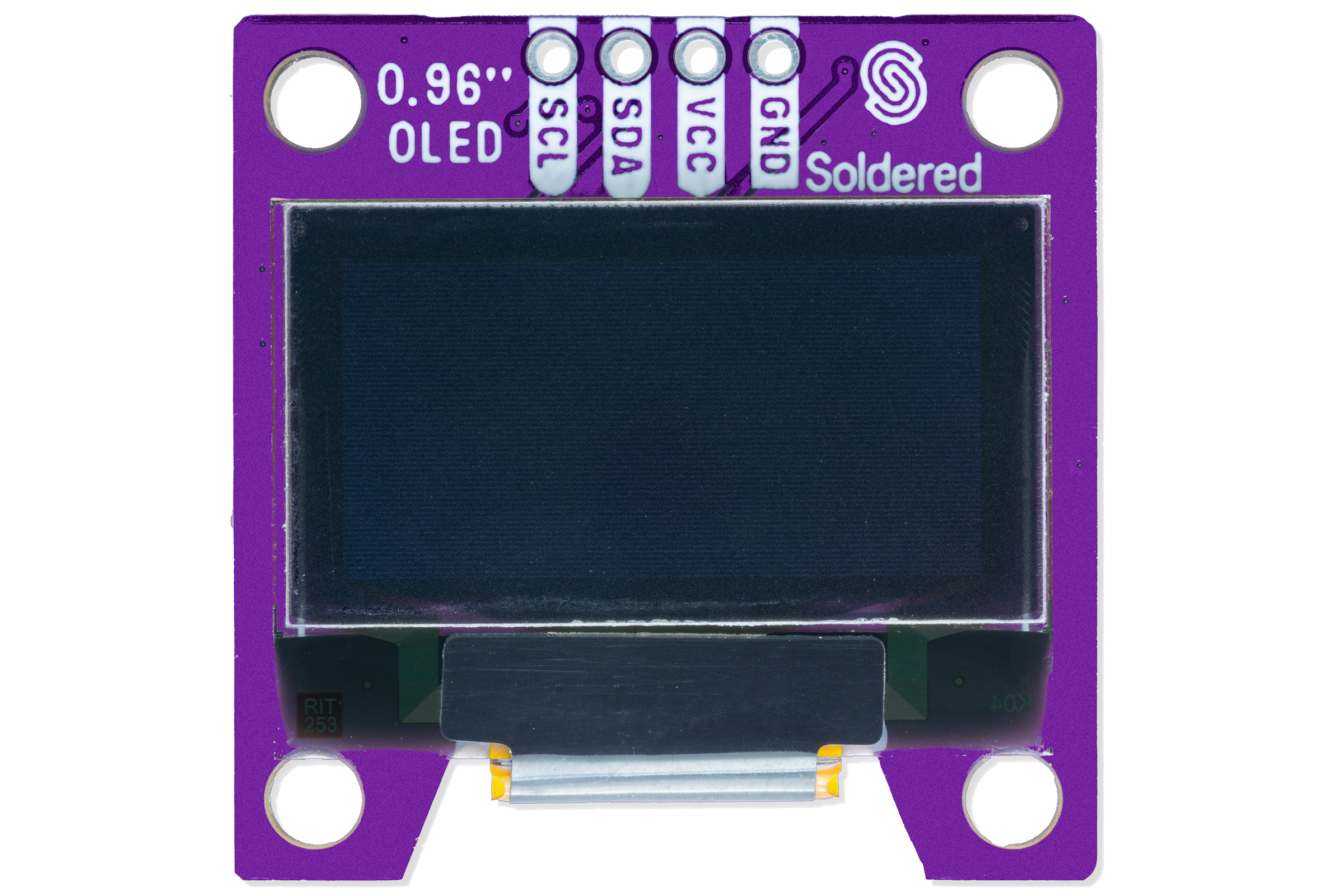

Hardware design, BOM, gerbers and 3D files for Display-OLED-I2C-Blue-0.96 designed by Soldered Electronics.
Looking to add visuals to your Arduino projects? The I2C OLED breakout board is perfect for that. Because of its high contrast, you will be in awe of its crispness! The display is made from hundreds of LEDs, each representing one pixel in a 128x64 grid. Thus, it doesn't need any backlight, and it needs less power than the classic LCD screens. That’s 8192 pixels all individually lit at your fingertips!
Main components on the Display-OLED-I2C-Blue-0.96-hardware design
Display-OLED-I2C-Blue-0.96-hardware design bill of materials (BOM)
36 components, 17 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | NMOS-DUAL | SOT-363 | U1 |
| 1 | SE5218 | SOT-23-5 | U2 |
| 1 | OLED_GME12864_30p | OLED_GME128x64_30p | U3 |
| 4 | HOLE_3.2mm | HOLE_3.2mm | H1, H2, H3, H4 |
| 2 | SMD_JUMPER_3_PAD_TRACE | SMD_JUMPER_3_PAD_TRACE | JP1, JP3 |
| 2 | SMD-JUMPER-CONNECTED_TRACE_SLODERMASK | SMD-JUMPER-CONNECTED_TRACE_SLODERMASK | JP2, JP4 |
| 2 | SMD_JUMPER | SMD_JUMPER | JP5, JP6 |
| 2 | easyC-SMD | easyC-connector | K1, K2 |
| 1 | HEADER_MALE_4X1 | HEADER_MALE_4X1 | K3 |
| 1 | purple | 0402LED | D1 |
| 4 | 2u2 | 0603C | C1, C2, C5, C8 |
| 3 | 10u | 1206C | C3, C7, C9 |
| 1 | 1u | 0603C | C4 |
| 2 | 100n | 0603C | C6, C10 |
| 7 | 10k | 0603R | R1, R2, R3, R4, R6, R7, R8 |
| 1 | 2k2 | 0402R | R5 |
| 1 | 390k | 0603R | R9 |
Display-OLED-I2C-Blue-0.96-hardware design design files
The KiCad project lives in the SolderedElectronics/Display-OLED-I2C-Blue-0.96-hardware-design repository on GitHub; these links point at the commit this page was built from.
Display-OLED-I2C-Blue-0.96-hardware design: common questions
How big is the Display-OLED-I2C-Blue-0.96-hardware design PCB?
The Display-OLED-I2C-Blue-0.96-hardware design measures 30 × 30 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Display-OLED-I2C-Blue-0.96-hardware design?
36 components, from 17 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Display-OLED-I2C-Blue-0.96-hardware design design files?
From the SolderedElectronics/Display-OLED-I2C-Blue-0.96-hardware-design repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Display-OLED-I2C-Blue-0.96-hardware design design in my own project?
Yes, under the terms of its TAPR-OHL-1.0 license, which SolderedElectronics chose for the repository.
