PCB-breadboard hardware design
SolderedElectronics·PCB-breadboard-hardware-design·CAD/V1.1.1/PCB_breadboard.kicad_pcb
About the PCB-breadboard hardware design
PCB-breadboard hardware design is an open source PCB design by SolderedElectronics, published on GitHub under the TAPR-OHL-1.0 license. It is a 2-layer board measuring 84 × 54 mm, with 83 components from 2 distinct parts.
It belongs with the dev boards & breakouts designs in this gallery.
From the project
Hardware design, BOM, gerbers and 3D files for PCB-breadboard designed by Soldered Electronics.

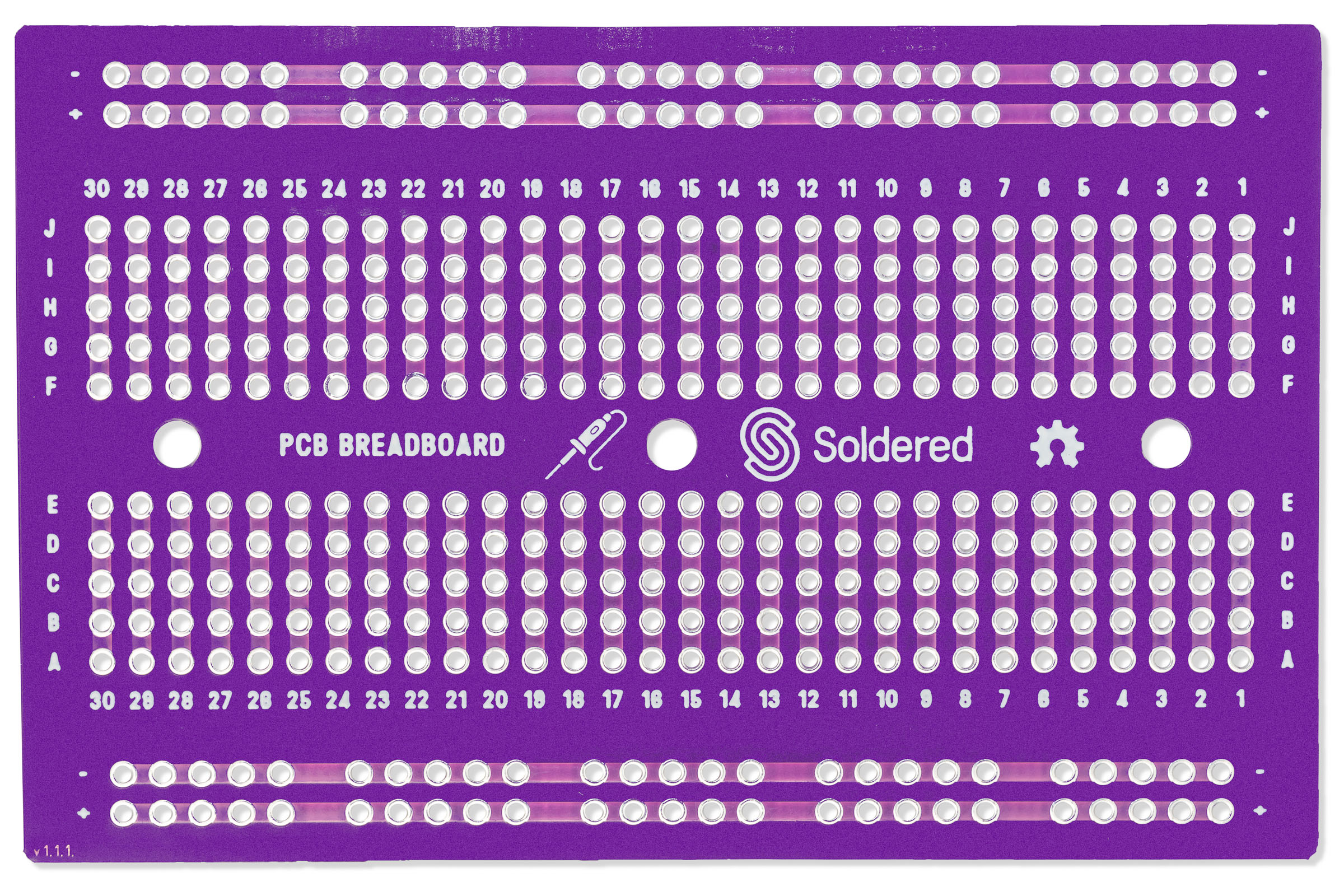

This PCB is also a breadboard. It offers both the simplicity and the functionality of a breadboard. It is the same size as the modular half-size breadboard and has the same connections to pins. The board allows you to make the temporary circuit from the breadboard permanent.
All Soldered Electronics hardware designed in KiCAD, and repositories are organized in the following way:

PCB-breadboard hardware design bill of materials (BOM)
83 components, 2 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 3 | HOLE_3.2MM HOLE_3.2mm | HOLE_3.2mm | H1, H2, H3 |
| 80 | HEADER_MALE_5X1 | HEADER_MALE_5X1 | K1, K2, K3, K4, K5, K6, K7, K8 +72 |
PCB-breadboard hardware design design files
The KiCad project lives in the SolderedElectronics/PCB-breadboard-hardware-design repository on GitHub; these links point at the commit this page was built from.
PCB-breadboard hardware design: common questions
How big is the PCB-breadboard hardware design?
The PCB-breadboard hardware design measures 84 × 54 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the PCB-breadboard hardware design?
83 components, from 2 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the PCB-breadboard hardware design design files?
From the SolderedElectronics/PCB-breadboard-hardware-design repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the PCB-breadboard hardware design design in my own project?
Yes, under the terms of its TAPR-OHL-1.0 license, which SolderedElectronics chose for the repository.
