GE-Opal-Reverse-Engineering-Project

About the GE-Opal-Reverse-Engineering-Project PCB

GE-Opal-Reverse-Engineering-Project is an open source AVR/Arduino PCB design by SomeAspy, published on GitHub under the GPL-3.0 license. It is a board, with 27 components from 20 distinct parts.

Its main chip is the Arduino_Nano_ESP32, from the AVR/Arduino family. By type, the board carries 7 diodes, 5 modules, 5 transistors, 3 switches, 2 relays and 2 resistors.

From the project

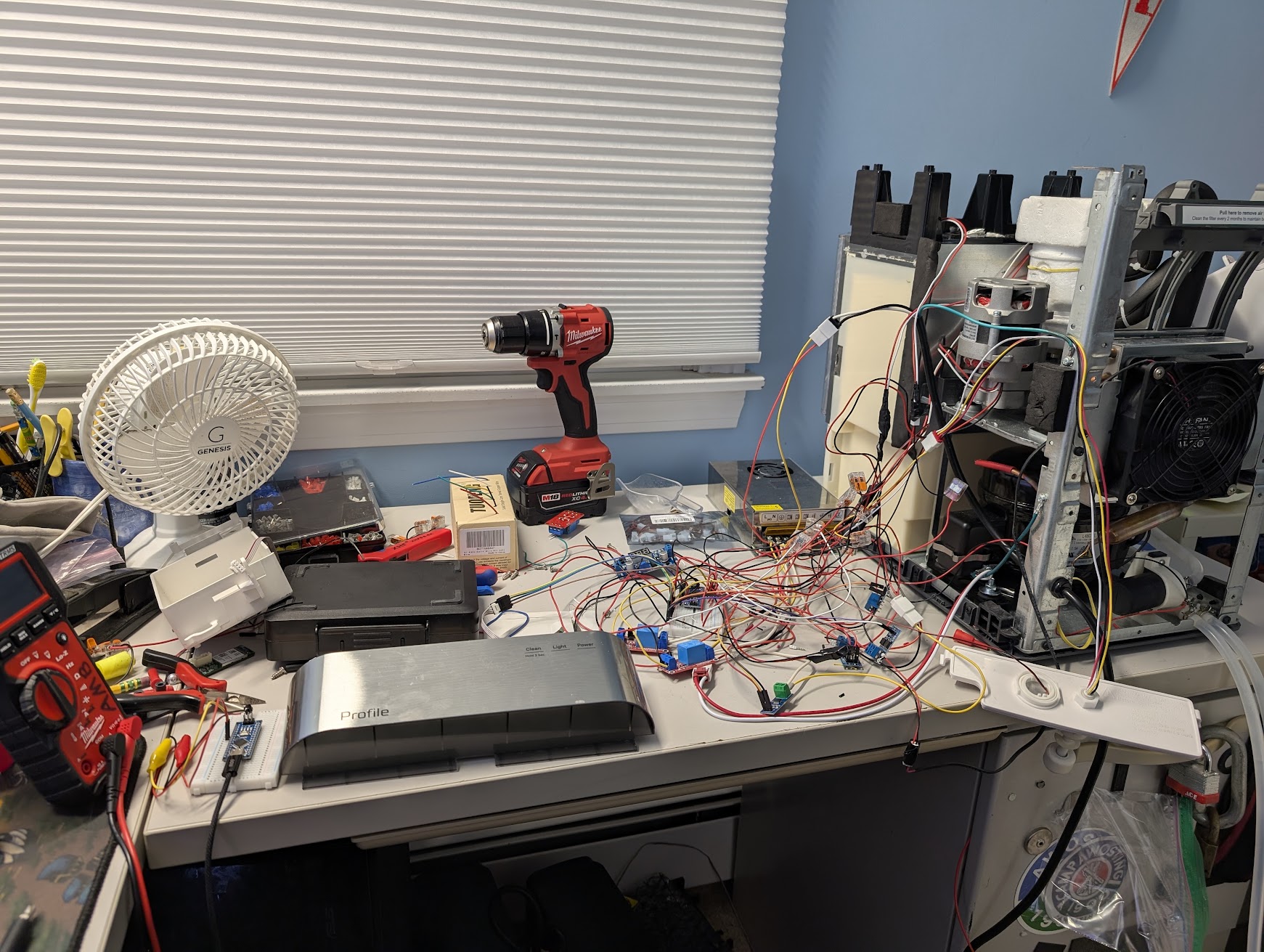

This repository documents all my attempts to make the GE Opal 2 not kill itself

This repository documents all my attempts to make the GE Opal 2 not kill itself (More specifically, the *GE Profile:tm: Opal:tm: 2.0 Ultra Nugget Ice Maker )

Important context to a lot of frustration here: This is a $500 dollar ice machine. It has a lifespan of 6 months to 1 year

I have quite literally dumped hundreds of dollars into this project. Some of the costs are prototyping modules, connectors, electronics components, and OEM parts for the machine.

Main components on the GE-Opal-Reverse-Engineering-Project

Arduino_Nano_ESP32

GE-Opal-Reverse-Engineering-Project bill of materials (BOM)

27 components, 20 distinct parts.

QtyPartRefs
1
Arduino_Nano_ESP32
A1
2
Motor_AC
M1, M2
1
Fan
M3
1
Pump
M4
5
Q_NMOS_GDS
Q1, Q2, Q3, Q4, Q5
1
Conn_01x04_Pin
J1
2
Relay_SPST-NO
K1, K2
1
NEUT
MES1
1
LINE
MES2
1
Bin Switch
SW1
1
Float High
SW2
1
Float Low
SW3
1
D_Photo
D1
1
Bin LED
D2
1
LoS IR LED
D3
1
D_Schottky
D4
2
D
D5, D7
1
UV-C LED
D6
1
1KΩ
R1
1
33Ω
R2

GE-Opal-Reverse-Engineering-Project design files

The KiCad project lives in the SomeAspy/GE-Opal-Reverse-Engineering-Project repository on GitHub; these links point at the commit this page was built from.

GE-Opal-Reverse-Engineering-Project: common questions

What microcontroller does the GE-Opal-Reverse-Engineering-Project use?

The GE-Opal-Reverse-Engineering-Project is built around the Arduino_Nano_ESP32, from the AVR/Arduino family.

How many components are on the GE-Opal-Reverse-Engineering-Project?

27 components, from 20 distinct parts. The full bill of materials is listed on this page.

Where can I download the GE-Opal-Reverse-Engineering-Project design files?

From the SomeAspy/GE-Opal-Reverse-Engineering-Project repository on GitHub, which has the schematic; the links under Design files point to each one.

Can I use the GE-Opal-Reverse-Engineering-Project design in my own project?

Yes, under the terms of its GPL-3.0 license, which SomeAspy chose for the repository.

Can I test firmware for the GE-Opal-Reverse-Engineering-Project without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
