Flight controller

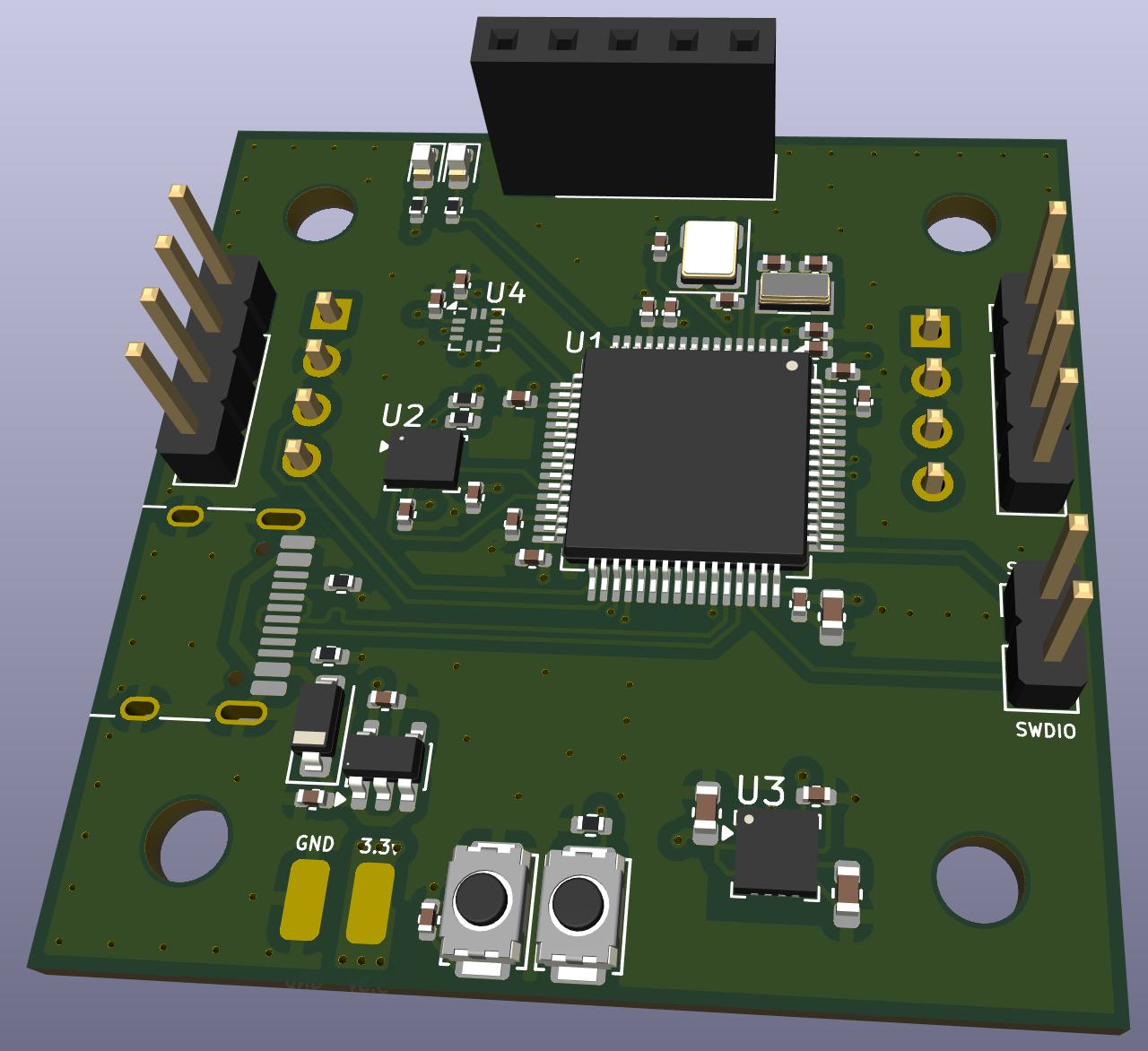

About the Flight controller PCB
Flight controller is an open source STM32 PCB design by someonelse20, published on GitHub. It is a 4-layer board measuring 40 × 40 mm, with 53 components from 27 distinct parts.
Its main chip is the STM32H523RCTX, from the STM32 family. Other key parts include the LSM6DSV, MMC5983MA, BMP384 and MIC5504-3.3YM5. By type, the board carries 25 capacitors, 9 connectors, 7 resistors, 5 ICs, 3 diodes and 2 crystals.
It belongs with the robotics & motion and rf & radio designs in this gallery.
From the project
FPV Drone designed from scrach.
Main components on the Flight controller
Flight controller bill of materials (BOM)
53 components, 27 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | STM32H523RCTX STM32H523RCTx | LQFP-64_10x10mm_P0.5mm | U1 |
| 1 | LSM6DSV | LGA-14_3x2.5mm_P0.5mm_LayoutBorder3x4y | U2 |
| 1 | MMC5983MA | LGA-16_3x3mm_P0.5mm | U3 |
| 1 | BMP384 | Rohm_MLGA010V020A_LGA-10_2x2mm_P0.45mm_LayoutBorder2x3y | U4 |
| 1 | MIC5504-3.3YM5 | SOT-23-5 | U5 |
| 1 | 32.768MHZ 32.768MHz | Crystal_SMD_3215-2Pin_3.2x1.5mm | Y1 |
| 1 | 24MHZ 24MHz | Crystal_SMD_3225-4Pin_3.2x2.5mm | Y2 |
| 1 | USB_C_RECEPTACLE_USB2.0_14P USB_C_Receptacle_USB2.0_14P | USB_C_Receptacle_HRO_TYPE-C-31-M-12 | J1 |
| 4 | CONN_01X04 Conn_01x04 | PinHeader_1x04_P2.54mm_Vertical | J2, J3, J4, J5 |
| 1 | CONN_01X05 Conn_01x05 | PinSocket_1x05_P2.54mm_Vertical | J6 |
| 1 | CONN_01X02 Conn_01x02 | PinHeader_1x02_P2.54mm_Vertical | J7 |
| 2 | CONN_01X01 Conn_01x01 | SolderWirePad_1x01_SMD_1.5x3mm | J8, J9 |
| 2 | SW_Push | SW_Push_SPST_NO_Alps_SKRK | BOOT1, RESET1 |
| 2 | LED | LED_0603_1608Metric | D1, D2 |
| 1 | D_Schottky | D_SOD-123 | D3 |
| 1 | 1UF 1uF | C_0603_1608Metric | C1 |
| 12 | 100NF 100nF | C_0402_1005Metric | C4, C6, C7, C8, C11, C12, C18, C20 +4 |
| 1 | 10UF 10uF | C_0603_1608Metric | C5 |
| 2 | 18PF 18pF | C_0402_1005Metric | C9, C14 |
| 2 | 15PF 15pF | C_0402_1005Metric | C10, C13 |
Show 7 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 4 | 1UF 1uF | C_0402_1005Metric | C19, C21, C22, C23 |
| 2 | 2.2UF 2.2uF | C_0402_1005Metric | C26, C28 |
| 1 | 4.7UF 4.7uF | C_0603_1608Metric | C30 |
| 2 | 5.1K | R_0402_1005Metric | R1, R2 |
| 1 | 10K | R_0402_1005Metric | R3 |
| 2 | 1.2K | R_0402_1005Metric | R4, R5 |
| 2 | 1K | R_0402_1005Metric | R13, R15 |
Flight controller design files
The KiCad project lives in the someonelse20/Shadowfax repository on GitHub; these links point at the commit this page was built from.
Flight controller: common questions
What microcontroller does the Flight controller use?
The Flight controller is built around the STM32H523RCTX, from the STM32 family.
How big is the Flight controller PCB?
The Flight controller measures 40 × 40 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Flight controller?
53 components, from 27 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Flight controller design files?
From the someonelse20/Shadowfax repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Flight controller design in my own project?
The repository has no license, so all rights stay with someonelse20. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Flight controller without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
