Solar lora weather station kicad

About the Solar lora weather station kicad PCB

Solar lora weather station kicad is an open source PCB design by SpeedUp-Tech, published on GitHub. It is a board, with 44 components from 29 distinct parts.

Other key parts include the LM393LVQPWRQ1, LW5533B89C, CN3801 and TPS63021DSJT. By type, the board carries 18 resistors, 10 capacitors, 4 ICs, 3 transistors, 3 diodes and 2 connectors.

It belongs with the iot & wireless, rf & radio and sensors designs in this gallery.

From the project

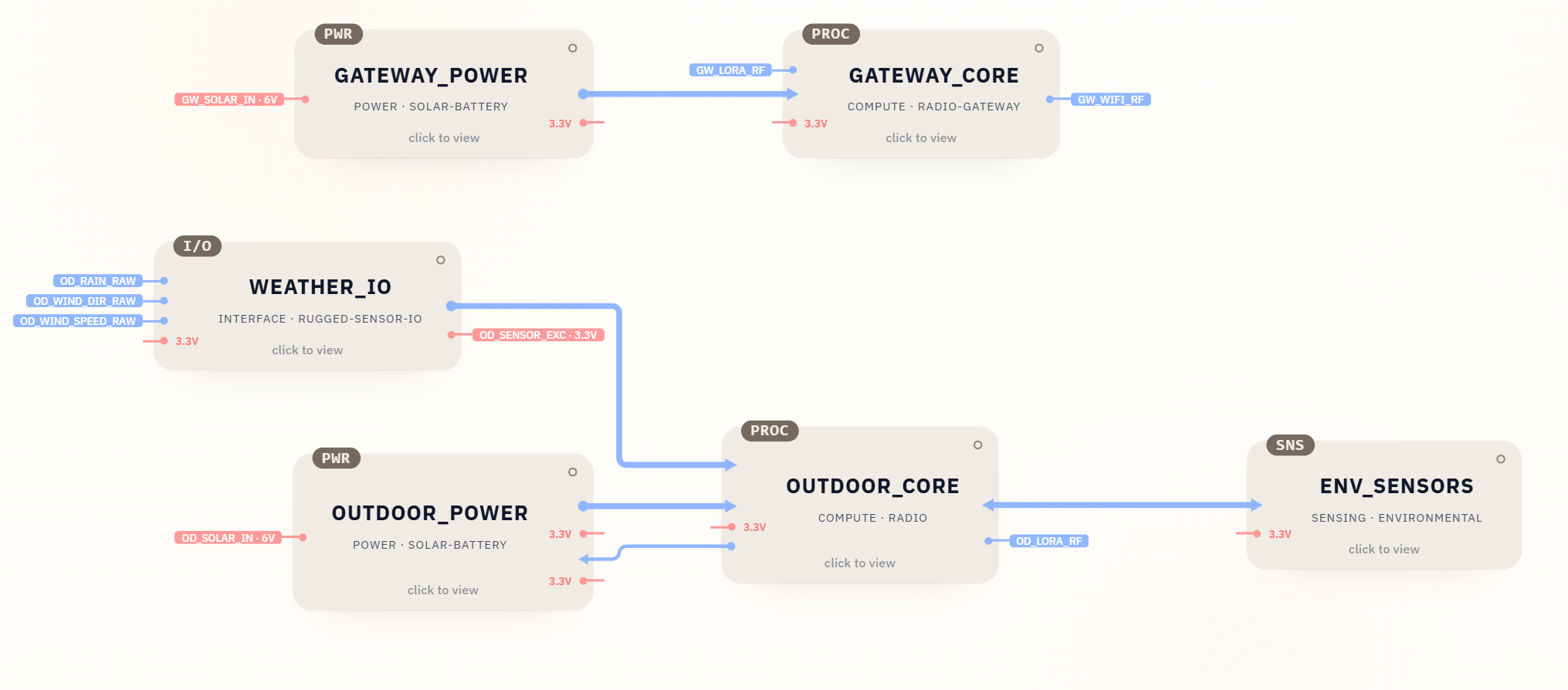

Editable seven-sheet KiCad schematic for a solar-powered LoRa weather station with an ESP32-C6 outdoor node, an ESP32-S3 gateway, environmental sensors, wind and rain inputs, and LoRa-to-Wi-Fi connectivity for a Home Assistant integration.

Generated with SpeedUp from a product requirement, this repository contains an editable KiCad 10 schematic for a farm weather station with a solar-powered outdoor node and an ESP32 gateway. The two ends exchange point-to-point LoRa data, and the gateway is intended to forward readings over Wi-Fi and MQTT to Home Assistant.

Download v0.1.0 · Open the live demo · Read the project case study

Main components on the Solar lora weather station kicad

LM393LVQPWRQ1 LW5533B89C CN3801 TPS63021DSJT

Solar lora weather station kicad bill of materials (BOM)

44 components, 29 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	LM393LVQPWRQ1	TSSOP-8_L4.4-W3.0-P0.65-LS6.4-BL	U12
1	LW5533B89C	SOT-89-3_L4.5-W2.5-P1.50-LS4.1-BR-1	U13
1	CN3801	SSOP-10_L4.9-W3.9-P1.00-LS6.0-BL	U14
1	TPS63021DSJT	VSON-14_L4.0-W3.0-P0.50-BL-EP_TI_DSJ	U15
2	SI2307A-ES	SOT-23-3_L2.9-W1.3-P1.90-LS2.4-BR	Q4, Q6
1	PMBS3904,215	SOT-23-3_L2.9-W1.3-P1.90-LS2.4-BR	Q5
2	2165711002	CONN-TH_2P-P3.00_2165711002	J11, J12
1	25F-020H	FUSE-SMD_L6.1-W2.6-1	F2
1	FNTC0402X104F3950FB	R0402	TH2
2	PMEG4020EP-TP	SOD-128_L3.7-W2.5-LS4.7-RD	D18, D19
1	SMBJ12A	SMB_L4.3-W3.6-LS5.3-RD	D20
1	33U 33u	L_7x7mm	L3
1	2.2U 2.2u	L_6x6mm	L4
3	10U 10u	C_1206_3216Metric	C50, C53, C57
2	100N 100n	C_0603_1608Metric	C51, C54
1	220N 220n	C_0603_1608Metric	C52
2	1u	C_0603_1608Metric	C55, C56
1	47U 47u	C_1210_3225Metric	C58
1	10N 10n	C_0603_1608Metric	C59
1	0.12	R_1206_3216Metric	R50

Show 9 more

Qty	Part	Footprint	Refs
1	120	R_0603_1608Metric	R51
1	27.4K 27.4k	R_0603_1608Metric	R52
1	10K 10k	R_0603_1608Metric	R53
7	100K 100k	R_0603_1608Metric	R54, R56, R57, R59, R61, R64, R66
1	47K 47k	R_0603_1608Metric	R55
1	324K 324k	R_0603_1608Metric	R58
1	43.2K 43.2k	R_0603_1608Metric	R60
2	1M	R_0603_1608Metric	R62, R63
2	0	R_0805_2012Metric	R69, R70

Solar lora weather station kicad design files

The KiCad project lives in the SpeedUp-Tech/solar-lora-weather-station-kicad-schematic repository on GitHub; these links point at the commit this page was built from.

Schematichardware/modules/GATEWAY_POWER.kicad_sch
BOMbom/BillOfMaterials.csv

Solar lora weather station kicad: common questions

How many components are on the Solar lora weather station kicad?

44 components, from 29 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Solar lora weather station kicad design files?

From the SpeedUp-Tech/solar-lora-weather-station-kicad-schematic repository on GitHub, which has the schematic and the BOM; the links under Design files point to each one.

Can I use the Solar lora weather station kicad design in my own project?

The repository has no license, so all rights stay with SpeedUp-Tech. Use it as a reference, and ask the author before reusing the design.
