HB-MOD-UART PCB layout, top view — open source board by stan23

About the HB-MOD-UART PCB

HB-MOD-UART is an open source PCB design by stan23, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 50 × 17.8 mm, with 7 components from 6 distinct parts.

Other key parts include the HM-MOD-UART. By type, the board carries 2 connectors, 2 capacitors, 2 resistors and 1 IC.

It belongs with the iot & wireless designs in this gallery.

From the project

Verschiedene Platinen für HomeMatic, AskSinPP und SmartHome

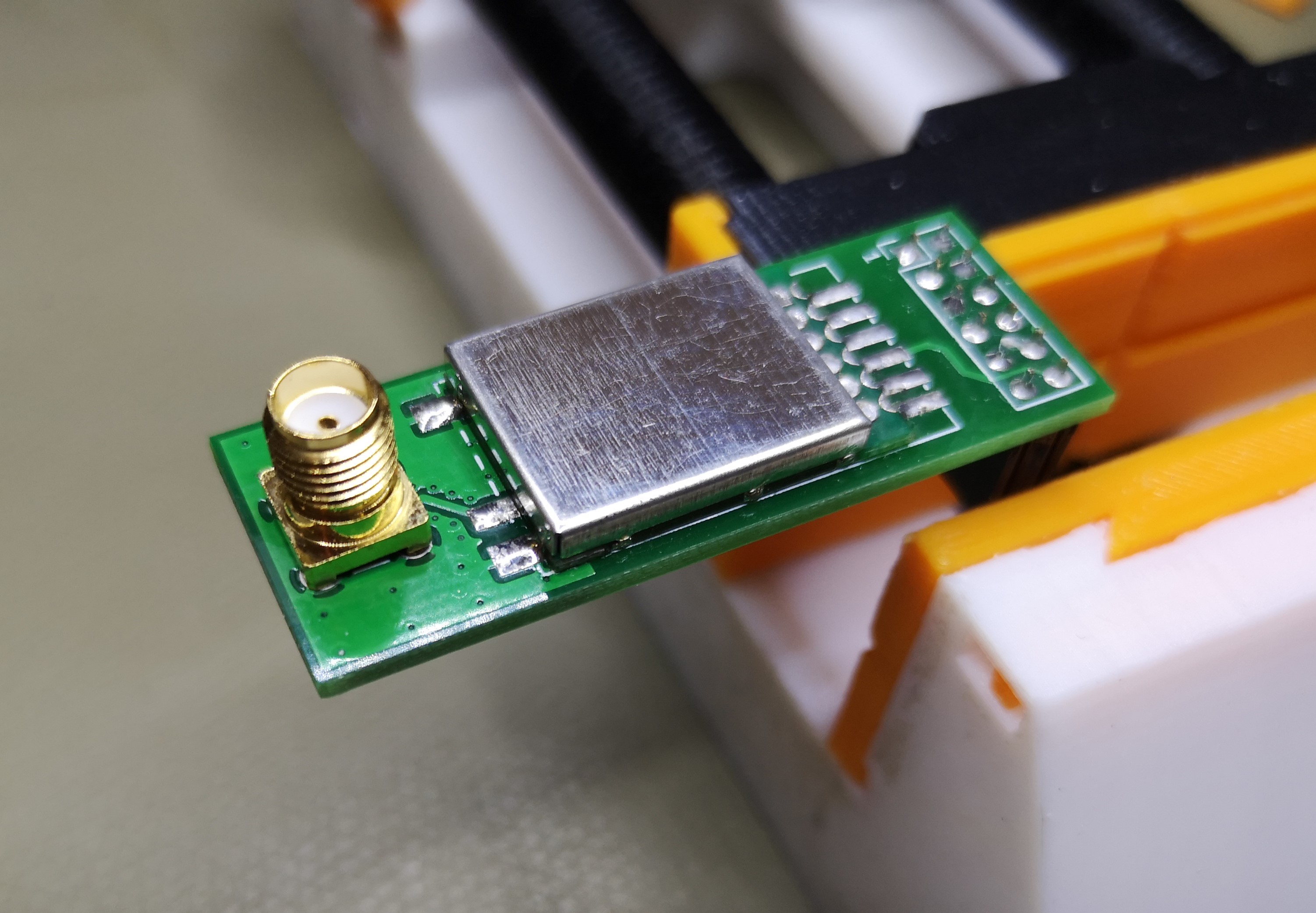

HB-MOD-UART, from the project README
From the project README

Main components on the HB-MOD-UART

HM-MOD-UART

HB-MOD-UART bill of materials (BOM)

7 components, 6 distinct parts.

QtyPartRefs
1
HM-MOD-UART
U1
1
Conn_Raspi
J1
1
Conn_Coaxial
J2
1
100n
C1
1
100u / 10V
C2
2
1k
R1, R2

HB-MOD-UART design files

The KiCad project lives in the stan23/myPCBs repository on GitHub; these links point at the commit this page was built from.

HB-MOD-UART: common questions

How big is the HB-MOD-UART PCB?

The HB-MOD-UART measures 50 × 17.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the HB-MOD-UART?

7 components, from 6 distinct parts. The full bill of materials is listed on this page.

Where can I download the HB-MOD-UART design files?

From the stan23/myPCBs repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the HB-MOD-UART design in my own project?

It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
