HB-Mower-Fence

stan23·myPCBs·HB-Mower-Fence/HB-Mower-Fence.kicad_pcb

HB-Mower-Fence PCB layout, top view — open source AVR/Arduino board by stan23

About the HB-Mower-Fence PCB

HB-Mower-Fence is an open source AVR/Arduino PCB design by stan23, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 69.9 × 46.2 mm, with 30 components from 24 distinct parts.

Its main chip is the ATmega328PB-AU, from the AVR/Arduino family. Other key parts include the CC1101 and LM1117-3.3. By type, the board carries 9 capacitors, 9 resistors, 3 ICs, 3 connectors, 2 transistors and 1 crystal.

It belongs with the rf & radio, iot & wireless and usb & debug tools designs in this gallery.

From the project

Verschiedene Platinen für HomeMatic, AskSinPP und SmartHome

Ein Signalgeber für den Begrenzungsdraht für Mähroboter, gesteuert über ein Homebrew HomeMatic-Gerät.

Bauteil | Bestellnummer | Anzahl | Kommentar --------------- | ---------------- | ------ | --------- C1 | X5R-G0805 10/16 | 1 | - C2, C3, C5, C6 | X7R-G0805 100N | 4 | - C4 | X7R-G0805 1,0/25 | 1 | - C7, C8 | T491B 22U 16 | 2 | - C9 | FC-A 2,2M 25 | 1 | - D1 | 1N 4001 | 1 | - J5 | WAGO 250-204 | 1 | - LED1 | SMD-LED 0805 GE | 1 | - Q1 | IRLZ 44N | 1 | - Q2 | IRLML 5203 | 1 | - R1, R3, R8 | RND 0805 1 10K | 3 | - R2 | RND 0805 1 1,0M | 1 | - R4 | RND 0805 1 330 | 1 | - R5, R6 | 11W AXIAL 18 |…

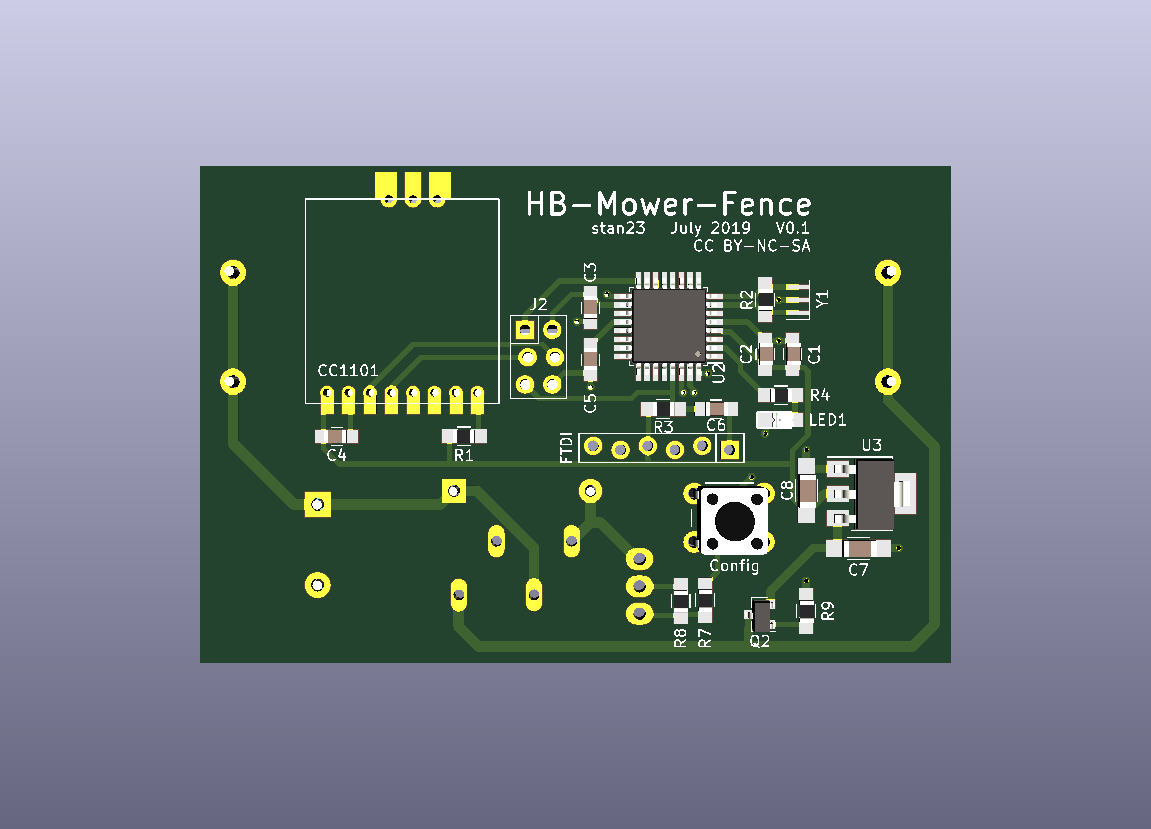

HB-Mower-Fence, from the project README
From the project README

Main components on the HB-Mower-Fence

CC1101ATmega328PB-AULM1117-3.3

HB-Mower-Fence bill of materials (BOM)

30 components, 24 distinct parts.

QtyPartRefs
1
CC1101
U1
1
ATmega328PB-AU
U2
1
LM1117-3.3
U3
1
IRLZ44N
Q1
1
IRLML5203
Q2
1
8M
Y1
1
ISP
J2
1
FTDI
J3
1
~
J5
1
Config
SW1
1
GREEN
LED1
1
1N4001
D1
1
10u
C1
4
100n
C2, C3, C5, C6
1
1u
C4
2
22u
C7, C8
1
2200u
C9
3
10k
R1, R3, R8
1
1M
R2
1
330
R4
Show 4 more
QtyPartRefs
1
18
R5
1
18R 10W
R6
1
220
R7
1
100k
R9

HB-Mower-Fence design files

The KiCad project lives in the stan23/myPCBs repository on GitHub; these links point at the commit this page was built from.

HB-Mower-Fence: common questions

What microcontroller does the HB-Mower-Fence use?

The HB-Mower-Fence is built around the ATmega328PB-AU, from the AVR/Arduino family.

How big is the HB-Mower-Fence PCB?

The HB-Mower-Fence measures 69.9 × 46.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the HB-Mower-Fence?

30 components, from 24 distinct parts. The full bill of materials is listed on this page.

Where can I download the HB-Mower-Fence design files?

From the stan23/myPCBs repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the HB-Mower-Fence design in my own project?

It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.

Can I test firmware for the HB-Mower-Fence without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
