Rfid breakout
StarGate01·rfid-breakout
About the Rfid breakout
Rfid breakout is an open source PCB design by StarGate01, published on GitHub under the MIT license. It is a 2-layer board measuring 39 × 39 mm, with 2 components from 2 distinct parts.
Other key parts include the NXP_PX. By type, the board carries 1 IC and 1 capacitor.
It belongs with the dev boards & breakouts designs in this gallery.
From the project
Breakout board for a RFID MOB smartcard IC
Breakout and antenna board for a 13.56 MHz NFC/RFID smartcard IC in the contactless MOB package.
Use KiCad with my CustomComponents library to view and edit the hardware project, or download the fabrication files for PCB manufacturing. I used the RF-Tools for KiCAD to create the rounded traces.

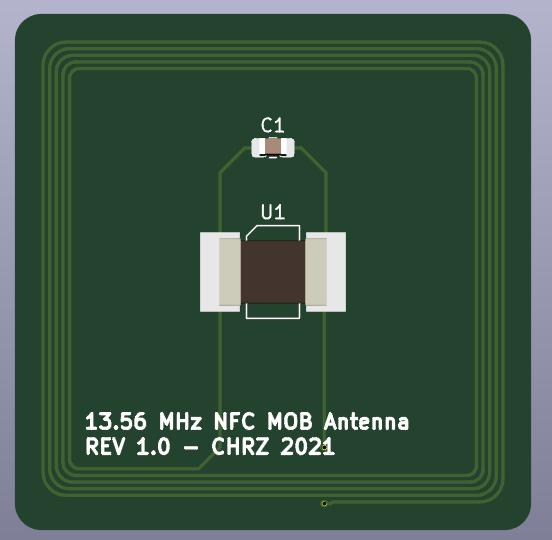

The 39 mm 39 mm dual-side PCB carries a 35 mm 35 mm coil on the top side.

Main components on the Rfid breakout
Rfid breakout bill of materials (BOM)
2 components, 2 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | NXP_PX | MOB | U1 |
| 1 | C | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C1 |
Rfid breakout design files
The KiCad project lives in the StarGate01/rfid-breakout repository on GitHub; these links point at the commit this page was built from.
- Layoutrfid-breakout.kicad_pcb
Rfid breakout: common questions
How big is the Rfid breakout?
The Rfid breakout measures 39 × 39 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Rfid breakout?
2 components, from 2 distinct parts. The full bill of materials is listed on this page.
Where can I download the Rfid breakout design files?
From the StarGate01/rfid-breakout repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Rfid breakout design in my own project?
Yes, under the terms of its MIT license, which StarGate01 chose for the repository.
