Galspanic
About the Galspanic PCB
Galspanic is an open source PCB design by stas2k, published on GitHub under the MIT license. It is a 2-layer board measuring 50 × 150 mm, with 19 components from 6 distinct parts.
Other key parts include the CY62167E and ATF22V10C-10XU. By type, the board carries 7 capacitors, 6 ICs, 5 jumpers and 1 connector.
It belongs with the retro computing designs in this gallery.
From the project

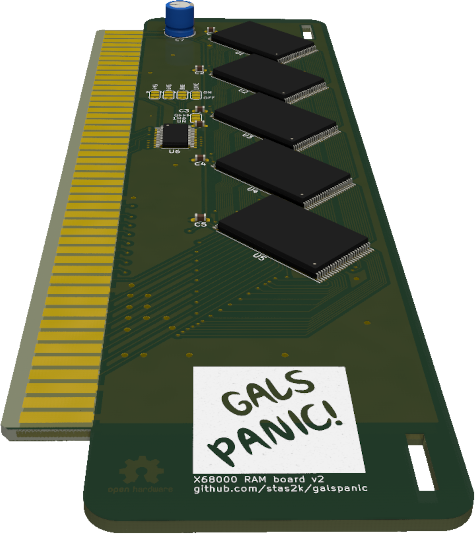

X68000 RAM Expansion
This repo contains Kicad sources for a Static RAM expansion board for Sharp X68000 personal computer. Please use latest git version of kicad to open the project, or version >6.0 once it gets released.
Board dimensions are taken from the midiori project.
The board can support up to 10MB of memory and assumes you already have 2MB built in.
A fourth address line is routed and the board can support 1MB systems by masking half of the first memory chip. However, the GAL equations are not written for this case. Let me know if you have such a system.
Main components on the Galspanic
Galspanic bill of materials (BOM)
19 components, 6 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 5 | CY62167E | TSOP-I-48_18.4x12mm_P0.5mm | U1, U2, U3, U4, U5 |
| 1 | ATF22V10C-10XU | TSSOP-24_4.4x7.8mm_P0.65mm | U6 |
| 1 | x68000_expansion | x68000_expansion | J1 |
| 5 | SolderJumper_3_Bridged12 | SolderJumper-3_P1.3mm_Bridged12_RoundedPad1.0x1.5mm | JP1, JP2, JP3, JP4, JP5 |
| 6 | 0.1uF | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C1, C2, C3, C4, C5, C6 |
| 1 | 220uF | CP_Radial_D6.3mm_P2.50mm | C7 |
Galspanic design files
The KiCad project lives in the stas2k/galspanic repository on GitHub; these links point at the commit this page was built from.
- Layoutgalspanic.kicad_pcb
- Schematicgalspanic.kicad_sch
Galspanic: common questions
How big is the Galspanic PCB?
The Galspanic measures 50 × 150 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Galspanic?
19 components, from 6 distinct parts. The full bill of materials is listed on this page.
Where can I download the Galspanic design files?
From the stas2k/galspanic repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Galspanic design in my own project?
Yes, under the terms of its MIT license, which stas2k chose for the repository.
