PCIe-Aux-Signal-Breakout
Supercookiegaming·PCIe-Aux-Signal-Breakout·KiCad/PCIe-Aux-Signal-Breakout/PCIe-Aux-Signal-Breakout.kicad_pcb
About the PCIe-Aux-Signal-Breakout
PCIe-Aux-Signal-Breakout is an open source PCB design by Supercookiegaming, published on GitHub. It is a 2-layer board measuring 65.3 × 68.9 mm, with 8 components from 8 distinct parts.
Other key parts include the MIC2876-5.0YMT. By type, the board carries 3 connectors, 3 capacitors, 1 IC and 1 inductor.
It belongs with the dev boards & breakouts and usb & debug tools designs in this gallery.
From the project

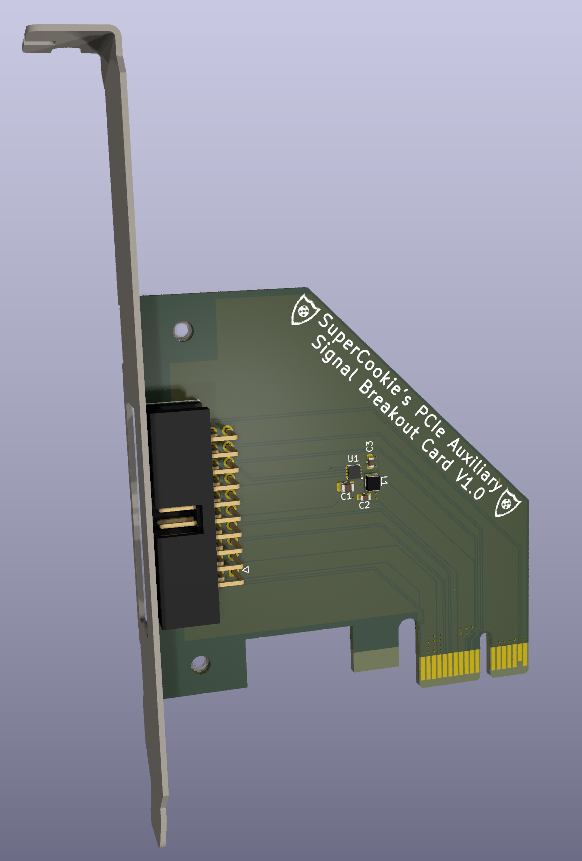

A PCIe 1x card that breaks out the SMBus and JTAG signals to an external header.
10W Total Power Output Up to 3.0A on 3.3V Up to 1.0A on 5V (optional) Up to 0.5A on 12V Up to 0.375A on 3.3V Aux Open-Drain SMBus 3.3V Signal Levels IEEE Standard 1149.1 JTAG 3.3V Signal Levels Always on 3.3V Aux rail * Standard and Low Profile Brackets included
Ordering Instructions KiCad Instructions Soldering Instructions 3D Printing Instructions
Main components on the PCIe-Aux-Signal-Breakout
PCIe-Aux-Signal-Breakout bill of materials (BOM)
8 components, 8 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MIC2876-5.0YMT MIC2876-5.0 | 8-Lead UDFN | U1 |
| 1 | PCIexpress_x1 | PCIexpress_x1 | J1 |
| 1 | PCIexpress_bracket | PCIexpress_bracket_low | J2 |
| 1 | BHR-20-HUA Conn_02x10_Odd_Even | IDC-Header_2x10_P2.54mm_Horizontal | J3 |
| 1 | WIP252012S-1R0MLDG 1uH | L_2520_INPAQ | L1 |
| 1 | CL21A226MQQNNNE 22uF | C_0805_2012Metric | C1 |
| 1 | CL10A475KP8NNNC 4.7uF | C_0603_1608Metric | C2 |
| 1 | CL10B105KP8NNNC 1uF | C_0603_1608Metric | C3 |
PCIe-Aux-Signal-Breakout design files
The KiCad project lives in the Supercookiegaming/PCIe-Aux-Signal-Breakout repository on GitHub; these links point at the commit this page was built from.
PCIe-Aux-Signal-Breakout: common questions
How big is the PCIe-Aux-Signal-Breakout?
The PCIe-Aux-Signal-Breakout measures 65.3 × 68.9 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the PCIe-Aux-Signal-Breakout?
8 components, from 8 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the PCIe-Aux-Signal-Breakout design files?
From the Supercookiegaming/PCIe-Aux-Signal-Breakout repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the PCIe-Aux-Signal-Breakout design in my own project?
The repository has no license, so all rights stay with Supercookiegaming. Use it as a reference, and ask the author before reusing the design.
