Kicad dali usb lpc

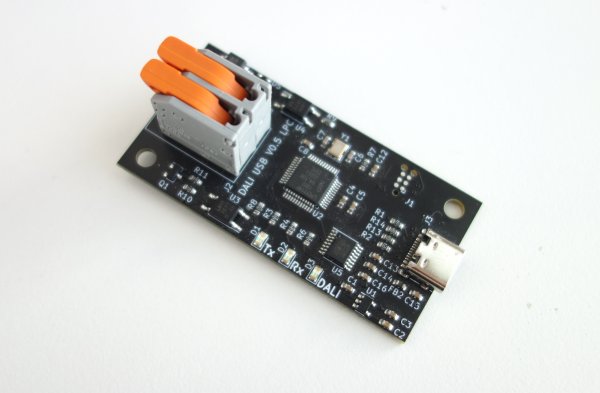

About the Kicad dali usb lpc PCB
Kicad dali usb lpc is an open source NXP PCB design by SvenHaedrich, published on GitHub under the MIT license. It is a 4-layer board measuring 60 × 30 mm, with 45 components from 27 distinct parts.
Its main chip is the LPC1114FBD48-333, from the NXP family. Other key parts include the LD3985, LTV-357T and FT230XS. By type, the board carries 13 capacitors, 13 resistors, 6 diodes, 5 ICs, 3 connectors and 2 transistors.
From the project
KiCad Project for DALI to USB interface based on NXP LPC 1114 µController.
Main components on the Kicad dali usb lpc
Kicad dali usb lpc bill of materials (BOM)
45 components, 27 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LD3985 | SOT-23-5 | U1 |
| 1 | LPC1114FBD48-333 | LQFP-48_7x7mm_P0.5mm | U2 |
| 2 | LTV-357T | SO-4_4.4x3.6mm_P2.54mm | U3, U4 |
| 1 | FT230XS | SSOP-16_3.9x4.9mm_P0.635mm | U5 |
| 1 | MMBT2222A | SOT-23 | Q1 |
| 1 | MMBF4391 | SOT-23 | Q2 |
| 1 | 12MHZ 12MHz | Crystal_SMD_TXC_7M-4Pin_3.2x2.5mm | Y1 |
| 1 | Tag_Connect | Tag-Connect_TC2030-IDC-NL_2x03_P1.27mm_Vertical | J1 |
| 1 | 2604-1102 | 2604-1102 | J2 |
| 1 | USB_C_RECEPTACLE_USB2.0 USB_C_Receptacle_USB2.0 | USB_C_Receptacle_XKB_U262-16XN-4BVC11 | J3 |
| 1 | 300MA 300mA | Fuse_1210_3225Metric | F1 |
| 3 | C98221 LED green | LED_0805_2012Metric | D1, D2, D3 |
| 1 | BZX84C6V8 | D_SOT-23_ANK | D4 |
| 1 | BZX84C30 | D_SOT-23_ANK | D5 |
| 1 | MB10S | TO-269AA | D6 |
| 1 | C96698 300R @ 100 MHz | R_0603_1608Metric | FB2 |
| 7 | 100N 100n | C_0603_1608Metric | C1, C3, C5, C8, C12, C13, C16 |
| 2 | 10N 10n | C_0603_1608Metric | C2, C15 |
| 2 | 4.7U 4.7u | C_0603_1608Metric | C4, C14 |
| 2 | 18P 18p | C_0603_1608Metric | C6, C7 |
Show 7 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 3 | 5K1 5k1 | R_0603_1608Metric | R1, R2, R9 |
| 3 | 120R | R_0603_1608Metric | R3, R4, R6 |
| 1 | 10K 10k | R_0603_1608Metric | R7 |
| 1 | 220R | R_0603_1608Metric | R8 |
| 2 | 1k | R_0603_1608Metric | R10, R12 |
| 1 | 10R | R_0603_1608Metric | R11 |
| 2 | 27R | R_0603_1608Metric | R13, R14 |
Kicad dali usb lpc design files
The KiCad project lives in the SvenHaedrich/kicad_dali_usb_lpc repository on GitHub; these links point at the commit this page was built from.
Kicad dali usb lpc: common questions
What microcontroller does the Kicad dali usb lpc use?
The Kicad dali usb lpc is built around the LPC1114FBD48-333, from the NXP family.
How big is the Kicad dali usb lpc PCB?
The Kicad dali usb lpc measures 60 × 30 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Kicad dali usb lpc?
45 components, from 27 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Kicad dali usb lpc design files?
From the SvenHaedrich/kicad_dali_usb_lpc repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Kicad dali usb lpc design in my own project?
Yes, under the terms of its MIT license, which SvenHaedrich chose for the repository.
Can I test firmware for the Kicad dali usb lpc without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug NXP firmware against it before you order a PCB.
