About the MPU-test PCB
MPU-test is an open source NXP PCB design by svgeesus, published on GitHub under the MIT license. It is a 2-layer board measuring 39.9 × 75.4 mm, with 13 components from 13 distinct parts.
Its main chip is the Teensy4.1-NE, from the NXP family. By type, the board carries 11 connectors, 1 IC and 1 capacitor.
It belongs with the audio designs in this gallery.
From the project

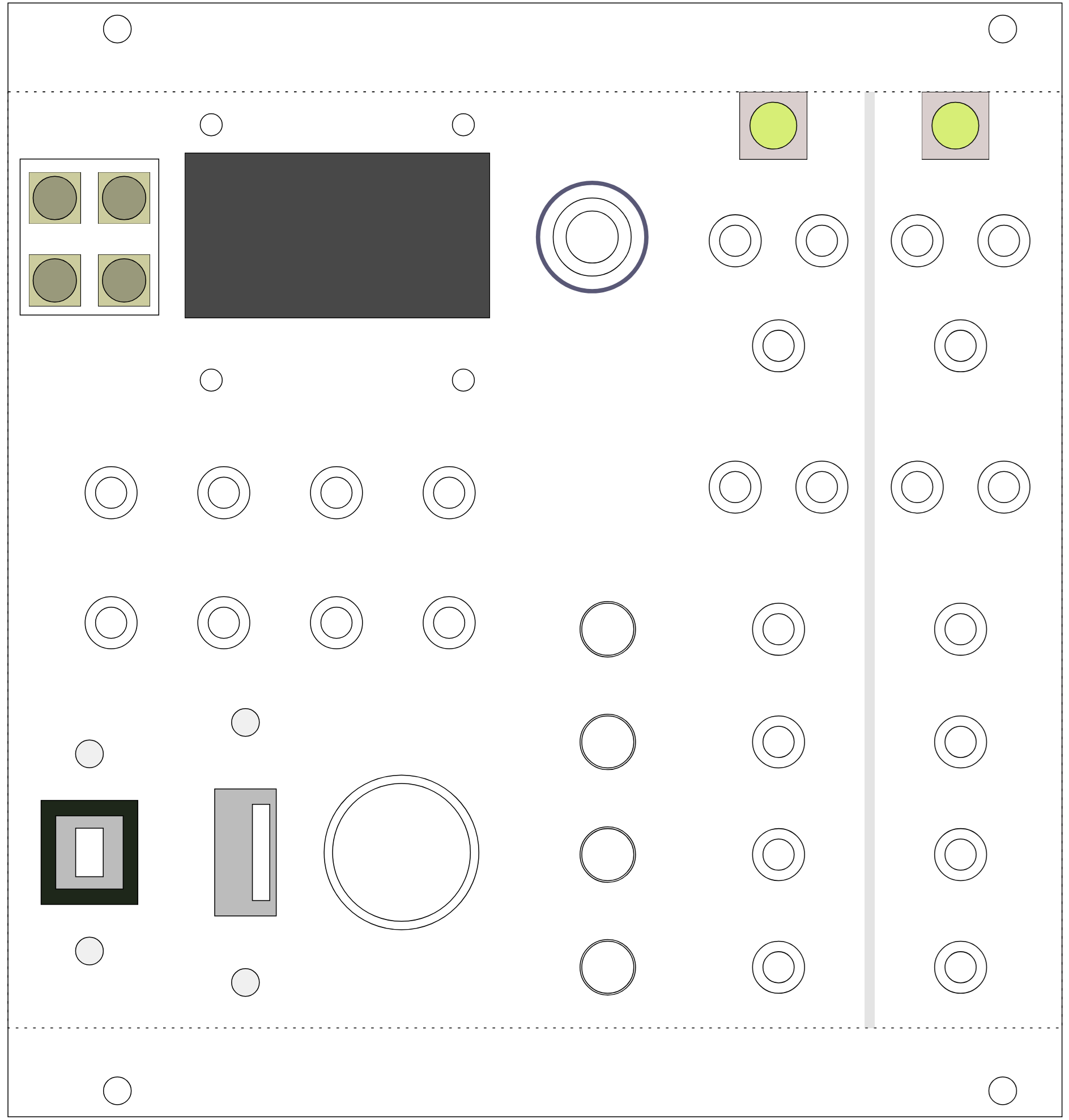

Eurorack MPE implementation, 2 to 8 voices
Inspired by the use of duophony on the ARP 2600 and Odyssey, this is a MIDI to CV Eurorack module with twin outputs: low-note priority and high-note priority.
Re-utilising designs from the polyphonic Euro-MPE project, this aims to be a high-precison, flexible, and performance oriented duophonic MIDI to Eurorack CV module. It's MPE compatible, so there is independent expression on each of the two notes.
Main components on the MPU-test
MPU-test bill of materials (BOM)
13 components, 13 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Teensy4.1-NE | Teensy41-NE | U1 |
| 1 | Pots | PinHeader_1x06_P2.54mm_Vertical | J1 |
| 1 | Encoder | PinHeader_1x05_P2.54mm_Vertical | J2 |
| 1 | Buttons | PinHeader_1x05_P2.54mm_Vertical | J3 |
| 1 | Power | PinHeader_1x04_P2.54mm_Vertical | J4 |
| 1 | PitchDAC1 | PinHeader_1x06_P2.54mm_Vertical | J5 |
| 1 | PitchDAC2 | PinHeader_1x06_P2.54mm_Vertical | J6 |
| 1 | Display | PinHeader_1x08_P2.54mm_Vertical | J7 |
| 1 | PerfDAC1 | PinHeader_1x08_P2.54mm_Vertical | J8 |
| 1 | PerfDAC2 | PinHeader_1x08_P2.54mm_Vertical | J9 |
| 1 | G-T-Tune | PinHeader_1x08_P2.54mm_Vertical | J10 |
| 1 | I2C | JST_SH_SM04B-SRSS-TB_1x04-1MP_P1.00mm_Horizontal | J11 |
| 1 | C_Polarized | CP_Radial_D5.0mm_P2.00mm | C2 |
MPU-test design files
The KiCad project lives in the svgeesus/EuroMPE repository on GitHub; these links point at the commit this page was built from.
MPU-test: common questions
What microcontroller does the MPU-test use?
The MPU-test is built around the Teensy4.1-NE, from the NXP family.
How big is the MPU-test PCB?
The MPU-test measures 39.9 × 75.4 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the MPU-test?
13 components, from 13 distinct parts. The full bill of materials is listed on this page.
Where can I download the MPU-test design files?
From the svgeesus/EuroMPE repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the MPU-test design in my own project?
Yes, under the terms of its MIT license, which svgeesus chose for the repository.
Can I test firmware for the MPU-test without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug NXP firmware against it before you order a PCB.
