About the MegaDriveIGR PCB

MegaDriveIGR is an open source PIC PCB design by svirant, published on GitHub under the GPL-2.0 license. It is a 2-layer board measuring 15.6 × 20.3 mm, with 5 components from 5 distinct parts.

Its main chip is the C8226, from the PIC family. By type, the board carries 3 connectors, 1 IC and 1 capacitor.

From the project

QSB for using Borti4938's MD IGR (MegaDrive In Game Reset)

Original Repository: https://github.com/borti4938/SwitchlessSEGAMasterSystemMegaDrive/tree/master/MDIGR

Files provided to make your own via JLCPCB's PCBA service.

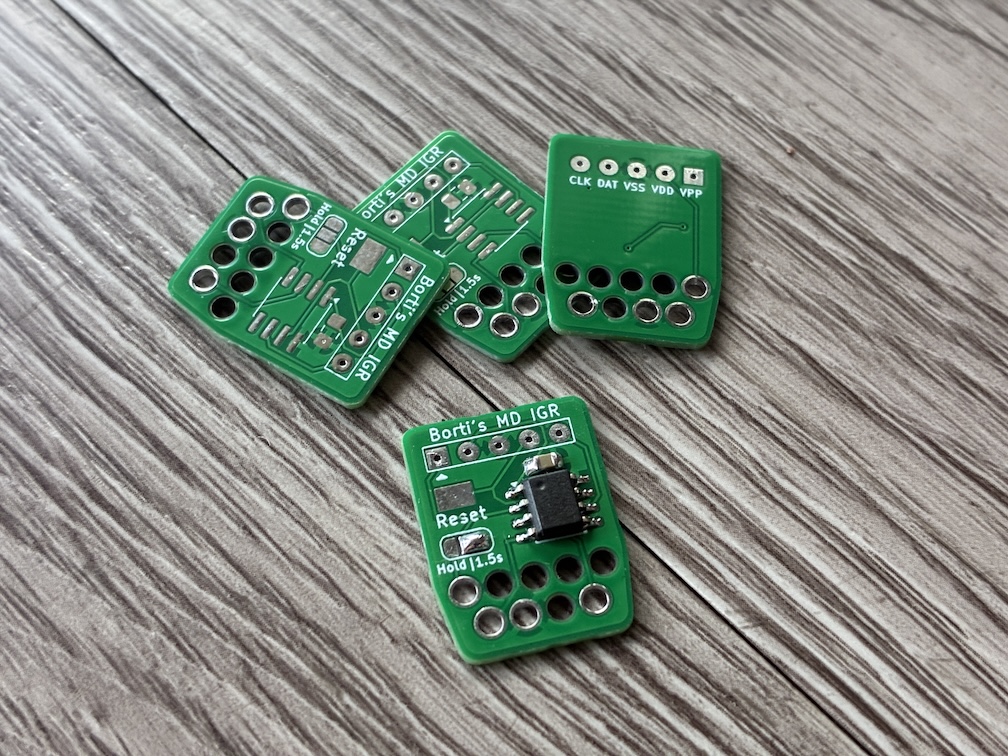

MegaDriveIGR, from the project README
From the project README

Main components on the MegaDriveIGR

C8226

MegaDriveIGR bill of materials (BOM)

5 components, 5 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
C8226
PIC12F629-xSN
U1
1
DE9_Pins
J1
1
Conn_01x05
J2
1
Conn_01x01
J3
1
C49678
C
C1

MegaDriveIGR design files

The KiCad project lives in the svirant/MegaDriveIGR repository on GitHub; these links point at the commit this page was built from.

MegaDriveIGR: common questions

What microcontroller does the MegaDriveIGR use?

The MegaDriveIGR is built around the C8226, from the PIC family.

How big is the MegaDriveIGR PCB?

The MegaDriveIGR measures 15.6 × 20.3 mm, has 2 copper layers and is 1 mm thick.

How many components are on the MegaDriveIGR?

5 components, from 5 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the MegaDriveIGR design files?

From the svirant/MegaDriveIGR repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the MegaDriveIGR design in my own project?

Yes, under the terms of its GPL-2.0 license, which svirant chose for the repository.

Can I test firmware for the MegaDriveIGR without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug PIC firmware against it before you order a PCB.
