Split mini top plate

tamago324·split-mini·rev0.01/split-mini/split-mini-top-plate.kicad_pcb

Split mini top plate PCB layout, top view — open source board by tamago324
Simulate this board

About the Split mini top plate PCB

Split mini top plate is an open source PCB design by tamago324, published on GitHub. It is a 2-layer board measuring 97.3 × 78.7 mm, with 18 components from 1 distinct parts.

It belongs with the keyboards designs in this gallery.

From the project

36 key split keyboard

XIAO RP2040 を使用 KLE https://kbplate.ai03.com/ でプレートデータを作成 width: 16.5 * height: 16.5

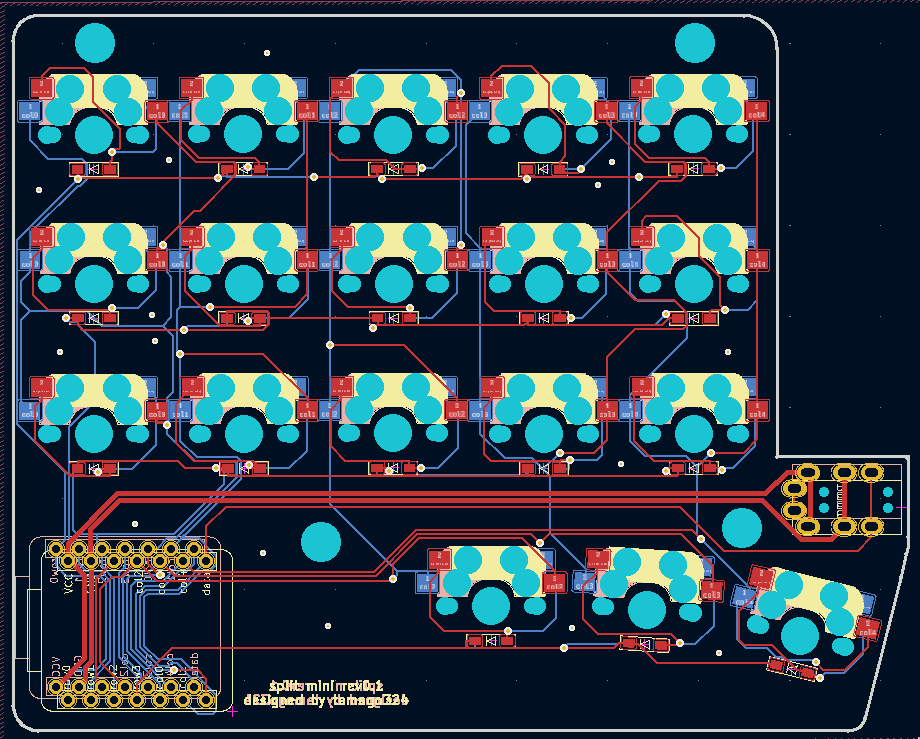

Split mini top plate, from the project README
From the project README

Split mini top plate bill of materials (BOM)

18 components, 1 distinct parts.

QtyPartRefs
18
SW_PUSH
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +10

Split mini top plate design files

The KiCad project lives in the tamago324/split-mini repository on GitHub; these links point at the commit this page was built from.

Split mini top plate: common questions

How big is the Split mini top plate PCB?

The Split mini top plate measures 97.3 × 78.7 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Split mini top plate?

18 components, from 1 distinct parts. The full bill of materials is listed on this page.

Where can I download the Split mini top plate design files?

From the tamago324/split-mini repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Split mini top plate design in my own project?

The repository has no license, so all rights stay with tamago324. Use it as a reference, and ask the author before reusing the design.
