Controller

Taran-the-Idiot·taranium-rover·Controller/Controller.kicad_pcb

Controller PCB layout, top view — open source board by Taran-the-Idiot
Simulate this board

About the Controller PCB

Controller is an open source PCB design by Taran-the-Idiot, published on GitHub. It is a 2-layer board measuring 79.8 × 60.6 mm, with 14 components from 10 distinct parts.

By type, the board carries 5 switches, 4 connectors, 3 battery holders, 1 diode and 1 resistor.

It belongs with the robotics & motion designs in this gallery.

From the project

This thing is really big so you need like a lot of plates if you want to build it. Roughly about 6 plates and 40 hours of non stop printing.

This thing is really big so you need like a lot of plates if you want to build it. Roughly about 6 plates and 40 hours of non stop printing.

It uses a crap ton of M3 screws and heatsets, so make sure you stock up on those

The bottom piece is there for stability and to make sure the wheel mount doesnt collapse.\ The suspensions are a bunch of high strendth springs that help distribute the weight of the whole car evenly through the wheels and absorb large bumps.\ \

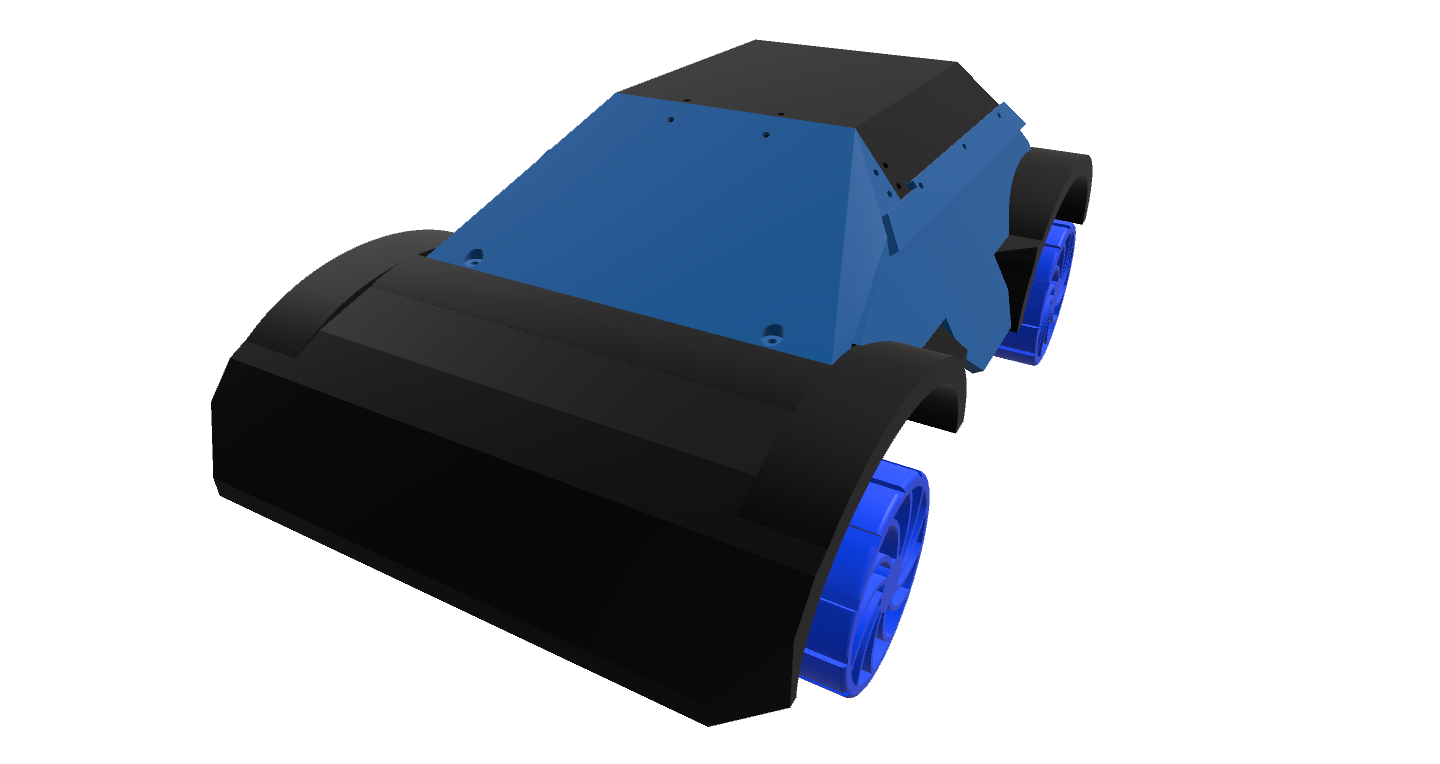

Controller, from the project README
From the project README

Controller bill of materials (BOM)

14 components, 10 distinct parts — part numbers from the project's BOM.

QtyPartRefs
2
Conn_01x19_Pin
J1, J2
1
Conn_01x04_Pin
J3
1
Conn_02x15_Odd_Even
J4
1
Battery
BT1
2
Battery
BT2, BT3
2
RotaryEncoder
SW1, SW2
2
SW_Push
SW3, SW4
1
SW_Slide_DPDT
SW5
1
LED
D1
1
R_Small
R1

Controller design files

The KiCad project lives in the Taran-the-Idiot/taranium-rover repository on GitHub; these links point at the commit this page was built from.

Controller: common questions

How big is the Controller PCB?

The Controller measures 79.8 × 60.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Controller?

14 components, from 10 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Controller design files?

From the Taran-the-Idiot/taranium-rover repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Controller design in my own project?

The repository has no license, so all rights stay with Taran-the-Idiot. Use it as a reference, and ask the author before reusing the design.
