Taranium-USB-Hub

Taran-the-Idiot·Taranium-USB-Hub·PCB/Untitled.kicad_pcb

Taranium-USB-Hub PCB layout, top view — open source board by Taran-the-Idiot

About the Taranium-USB-Hub PCB

Taranium-USB-Hub is an open source PCB design by Taran-the-Idiot, published on GitHub under the MIT license. It is a 2-layer board measuring 61.2 × 32.4 mm, with 14 components from 6 distinct parts.

By type, the board carries 7 capacitors, 5 connectors, 1 IC and 1 diode.

It belongs with the usb & debug tools designs in this gallery.

From the project

A USBa Hub designed by @Overlord-Runt // Taran The Idiot

A USBa Hub designed by @Overlord-Runt // Taran The Idiot

This is a 4 port usb hub with 2 USBa ports and 2 USBc ports. It has a pair of A and C on each side of the board, allowing it to be reversable.

The schematic uses a custom made symbol for the ic and is wired up to normal datasheet requirements. It boasts the ability to have 2 USBa and 2 USBc ports.

Here you can see the pcb design files for this project.

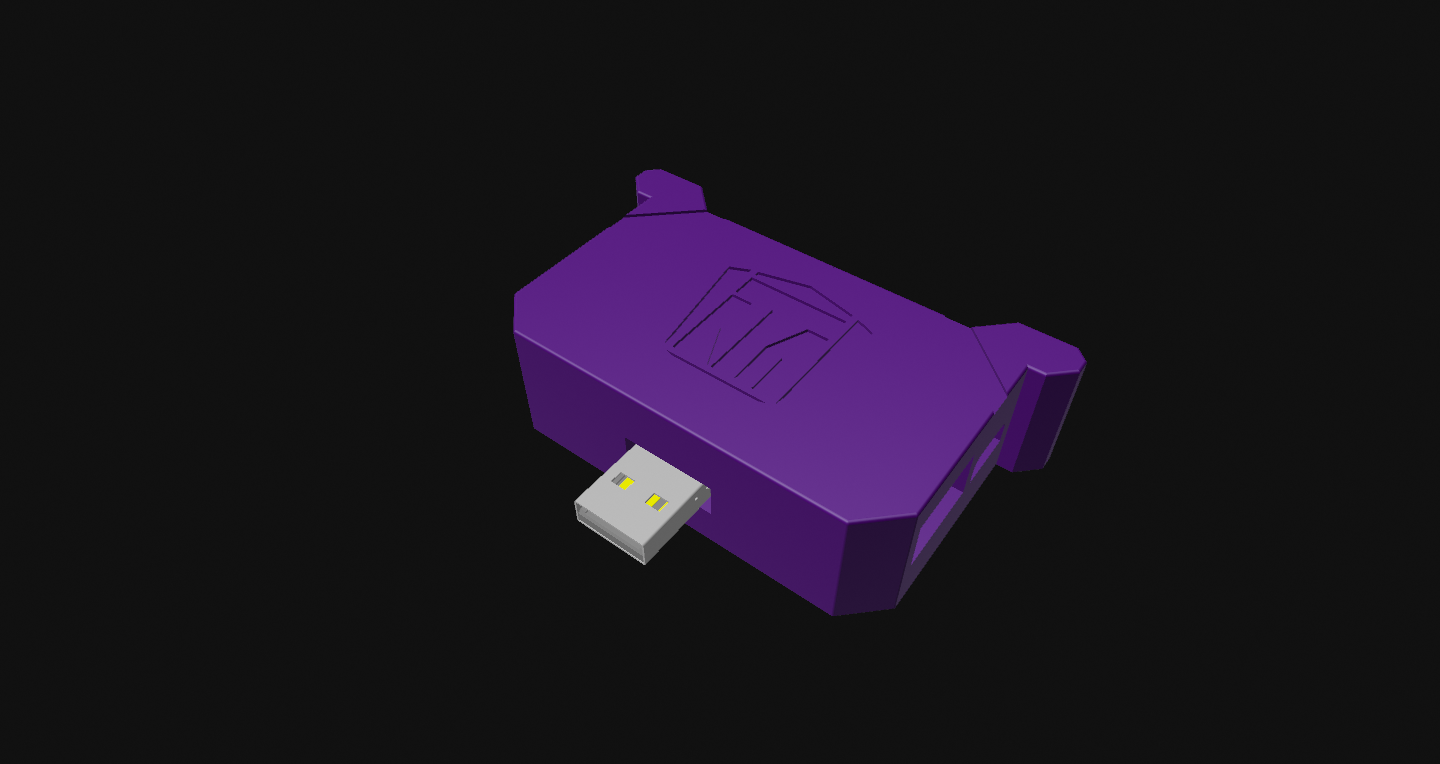

Taranium-USB-Hub, from the project README
From the project README

Taranium-USB-Hub bill of materials (BOM)

14 components, 6 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
~
U1
1
USB_A
J1
2
USB_A
J2, J3
2
USB_C_RECEPTACLE_USB2.0_16P
USB_C_Receptacle_USB2.0_16P
J4, J5
1
D_Small
D1
7
C_Small
C1, C2, C3, C4, C5, C6, C7

Taranium-USB-Hub design files

The KiCad project lives in the Taran-the-Idiot/Taranium-USB-Hub repository on GitHub; these links point at the commit this page was built from.

Taranium-USB-Hub: common questions

How big is the Taranium-USB-Hub PCB?

The Taranium-USB-Hub measures 61.2 × 32.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Taranium-USB-Hub?

14 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Taranium-USB-Hub design files?

From the Taran-the-Idiot/Taranium-USB-Hub repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Taranium-USB-Hub design in my own project?

Yes, under the terms of its MIT license, which Taran-the-Idiot chose for the repository.
