74hc595c 7-segment displays

taunoe·74hc595c_7-segment_displays·KiCad/KYX-5361AG_7-SEG-LED_v3/KYX-5361AG_7-SEG-LED_v3.kicad_pcb

74hc595c 7-segment displays PCB layout, top view — open source board by taunoe

About the 74hc595c 7-segment displays PCB

74hc595c 7-segment displays is an open source PCB design by taunoe, published on GitHub. It is a 4-layer board measuring 102.2 × 39.6 mm, with 76 components from 5 distinct parts.

Other key parts include the 74HC595. By type, the board carries 48 resistors, 16 transistors, 6 ICs and 4 inductors.

It belongs with the displays & leds designs in this gallery, and the repository also holds 2 earlier revisions of it.

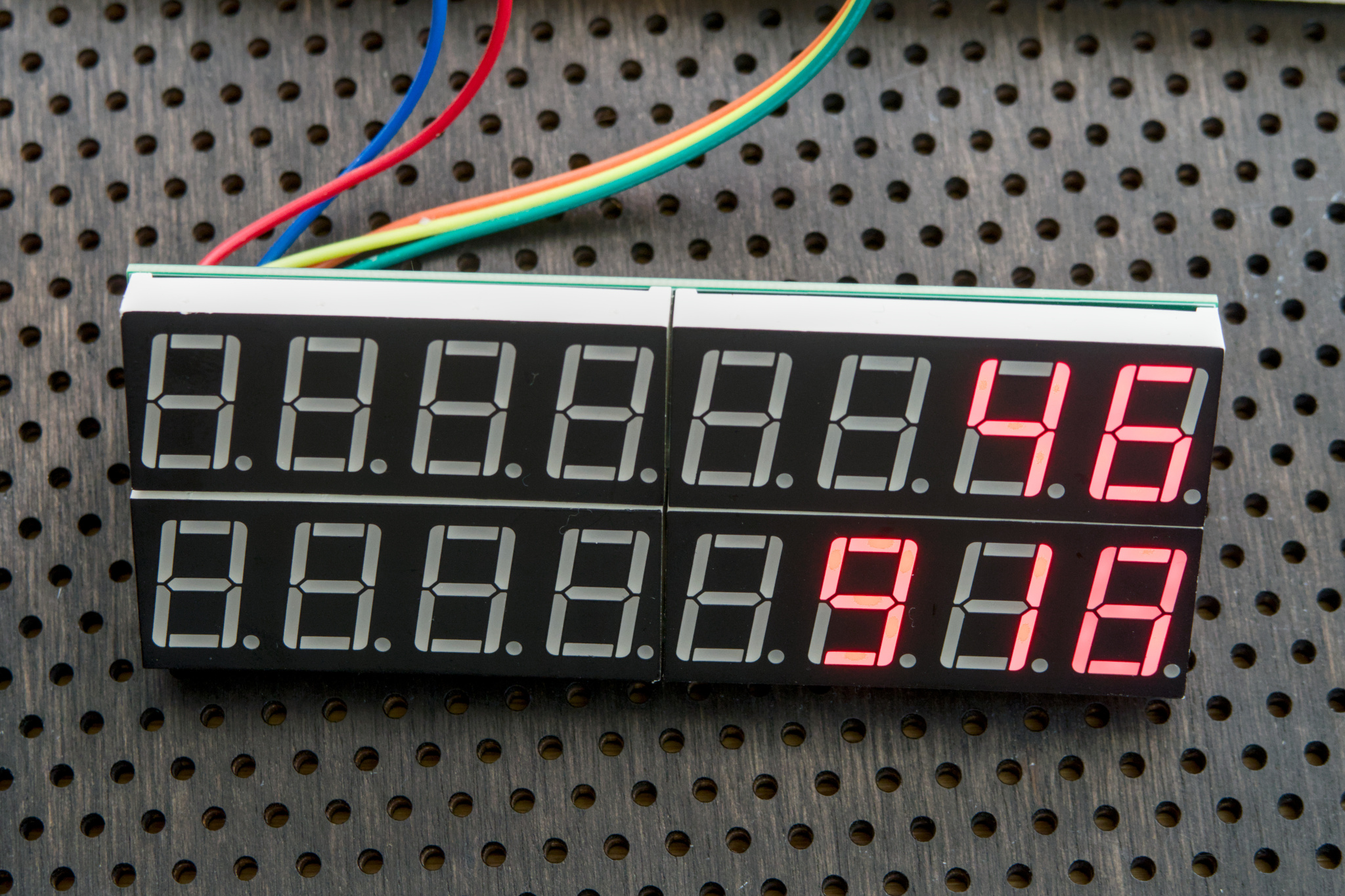

74hc595c 7-segment displays, from the project README
From the project README

Main components on the 74hc595c 7-segment displays

74HC595

74hc595c 7-segment displays bill of materials (BOM)

76 components, 5 distinct parts — part numbers from the project's BOM.

QtyPartRefs
6
74HC595
GR
U1, U2, U3, U4, U5, U6
16
SS8050
JSMSEMI
Q1, Q2, Q3, Q4, Q5, Q6, Q7, Q8 +8
2
Conn_01x05_Pin
-
IN1, OUT1
4
CC56-12CGKWA
-
L1, L2, L3, L4
48
RC0805FR-07300RL
300
YAGEO
R1, R2, R3, R4, R5, R6, R7, R8 +40

74hc595c 7-segment displays design files

The KiCad project lives in the taunoe/74hc595c_7-segment_displays repository on GitHub; these links point at the commit this page was built from.

74hc595c 7-segment displays: common questions

How big is the 74hc595c 7-segment displays PCB?

The 74hc595c 7-segment displays measures 102.2 × 39.6 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the 74hc595c 7-segment displays?

76 components, from 5 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the 74hc595c 7-segment displays design files?

From the taunoe/74hc595c_7-segment_displays repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the 74hc595c 7-segment displays design in my own project?

The repository has no license, so all rights stay with taunoe. Use it as a reference, and ask the author before reusing the design.

Earlier revisions in the repo: KYX-5361AG_7-SEG-LED_v2, KYX-5361AG_7-SEG-LED
