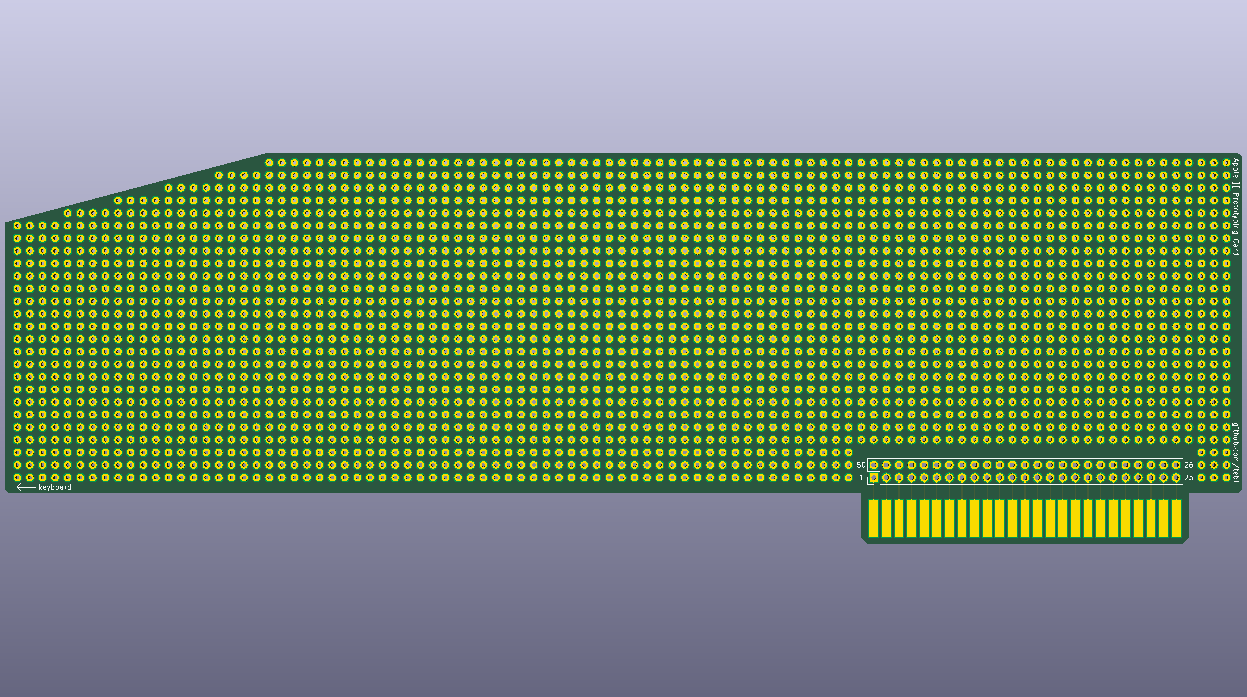

Apple2-Prototyping-Card
tebl·Apple2-Prototyping-Card·fullsize/Apple II Prototype.kicad_pcb
About the Apple2-Prototyping-Card PCB
Apple2-Prototyping-Card is an open source PCB design by tebl, published on GitHub. It is a 2-layer board measuring 249.6 × 78.7 mm, with 99 components from 8 distinct parts.
It belongs with the retro computing designs in this gallery.
From the project
Prototyping card for developing new hardware for legacy Apple ][, //e and //gs computers.
Several versions of the prototyping boards are available that can be used with the Apple ], //e and //gs, with size and cost being the main difference between them at this point in time. The smaller one should fit within the cheapest option for most Chinese PCB fabrication services, and so would be the perfect place to start when experimenting with the easier stuff. The fullsize version should give all the space you need for most projects. For more general information, see the [main project page.

Apple2-Prototyping-Card bill of materials (BOM)
99 components, 8 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Breakout | Breakout | J1 |
| 50 | Prototype_26 | prototype_26 | P1, P2, P3, P4, P5, P6, P7, P8 +42 |
| 31 | Prototype_23 | prototype_23 | P9, P10, P11, P12, P13, P14, P15, P16 +23 |
| 4 | Prototype_24 | prototype_24 | P61, P62, P83, P85 |
| 4 | Prototype_25 | prototype_25 | P63, P64, P65, P84 |
| 4 | Prototype_22 | prototype_22 | P90, P91, P92, P93 |
| 4 | Prototype_21 | prototype_21 | P94, P95, P96, P97 |
| 1 | A2_BUS | BUS_A2 | BUS1 |
Apple2-Prototyping-Card design files
The KiCad project lives in the tebl/Apple2-Prototyping-Card repository on GitHub; these links point at the commit this page was built from.
Apple2-Prototyping-Card: common questions
How big is the Apple2-Prototyping-Card PCB?
The Apple2-Prototyping-Card measures 249.6 × 78.7 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Apple2-Prototyping-Card?
99 components, from 8 distinct parts. The full bill of materials is listed on this page.
Where can I download the Apple2-Prototyping-Card design files?
From the tebl/Apple2-Prototyping-Card repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Apple2-Prototyping-Card design in my own project?
The repository has no license, so all rights stay with tebl. Use it as a reference, and ask the author before reusing the design.
