Stm32c5-bluepill PCB layout, top view — open source STM32 board by thomashamain

About the Stm32c5-bluepill PCB

Stm32c5-bluepill is an open source STM32 PCB design by thomashamain, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 53.3 × 22.9 mm, with 63 components from 34 distinct parts.

Its main chip is the STM32C5xxCx, from the STM32 family. Other key parts include the 3.3V LDO, AP63205WU, TCAN334 and USBLC6-2SC6. By type, the board carries 27 capacitors, 10 resistors, 9 connectors, 6 ICs, 5 diodes and 3 switches.

From the project

Open-source STM32C5 Blue Pill-style board exploring practical compatibility with the classic STM32F103 Blue Pill.

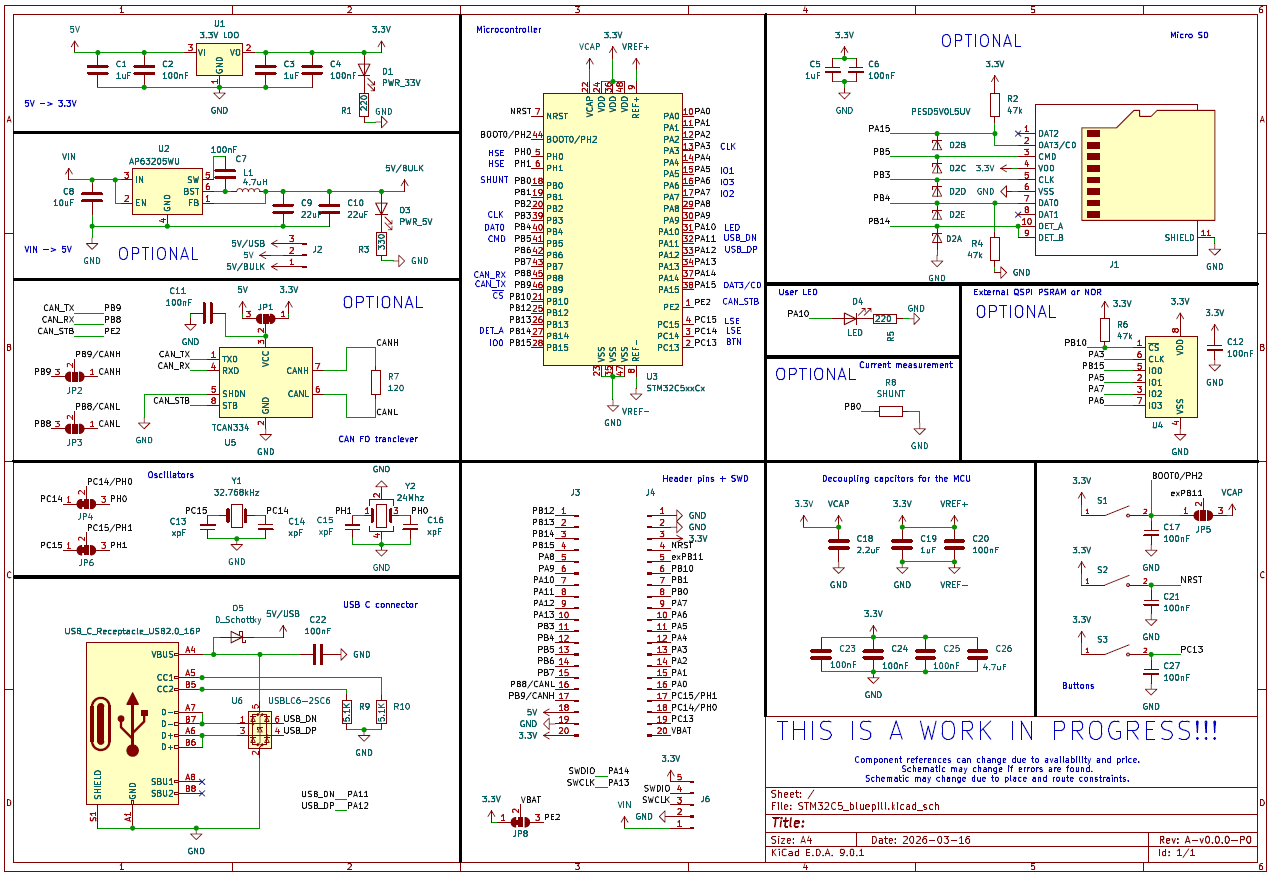

ST released the STM32C5 family, a cost-sensitive Cortex-M33 series with modern peripherals, more memory, and much better headroom than the classic STM32F103 used in the Blue Pill designs. Since the spirit of a bluepill is to be affordable/cheap, compact, have good performances, and be versatile for a large part of diy projects, the C5 could be a perfect evolution for the bluepill.

Stm32c5-bluepill, from the project README
From the project README

Main components on the Stm32c5-bluepill

3.3V LDOAP63205WUSTM32C5xxCxTCAN334USBLC6-2SC6

Stm32c5-bluepill bill of materials (BOM)

63 components, 34 distinct parts.

QtyPartRefs
1
3.3V LDO
U1
1
AP63205WU
U2
1
STM32C5xxCx
U3
1
~
U4
1
TCAN334
U5
1
USBLC6-2SC6
U6
1
32.768kHz
Y1
1
24Mhz
Y2
1
Micro_SD_Card_Det2
J1
1
Conn_01x03_Pin
J2
4
Conn_01x20_Pin
J3, J4, J1000, J2000
1
USB_C_Receptacle_USB2.0_16P
J5
1
Conn_01x05_Pin
J6
1
Conn_01x05_Pin
J3000
3
TS09-63-25-R-260-SMT-TR
S1, S2, S3
1
PWR_33V
D1
1
PESD5V0L5UV
D2
1
PWR_5V
D3
1
LED
D4
1
D_Schottky
D5
Show 14 more
QtyPartRefs
1
4.7uH
L1
4
1uF
C1, C3, C5, C19
14
100nF
C2, C4, C6, C7, C11, C12, C17, C20 +6
1
10uF
C8
2
22uF
C9, C10
4
xpF
C13, C14, C15, C16
1
2.2uF
C18
1
4.7uF
C26
2
220
R1, R5
3
47k
R2, R4, R6
1
330
R3
1
120
R7
1
SHUNT
R8
2
5.1K
R9, R10

Stm32c5-bluepill design files

The KiCad project lives in the thomashamain/stm32c5-bluepill repository on GitHub; these links point at the commit this page was built from.

Stm32c5-bluepill: common questions

What microcontroller does the Stm32c5-bluepill use?

The Stm32c5-bluepill is built around the STM32C5xxCx, from the STM32 family.

How big is the Stm32c5-bluepill PCB?

The Stm32c5-bluepill measures 53.3 × 22.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Stm32c5-bluepill?

63 components, from 34 distinct parts. The full bill of materials is listed on this page.

Where can I download the Stm32c5-bluepill design files?

From the thomashamain/stm32c5-bluepill repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Stm32c5-bluepill design in my own project?

Yes, under the terms of its CC-BY-SA-4.0 license, which thomashamain chose for the repository.

Can I test firmware for the Stm32c5-bluepill without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
