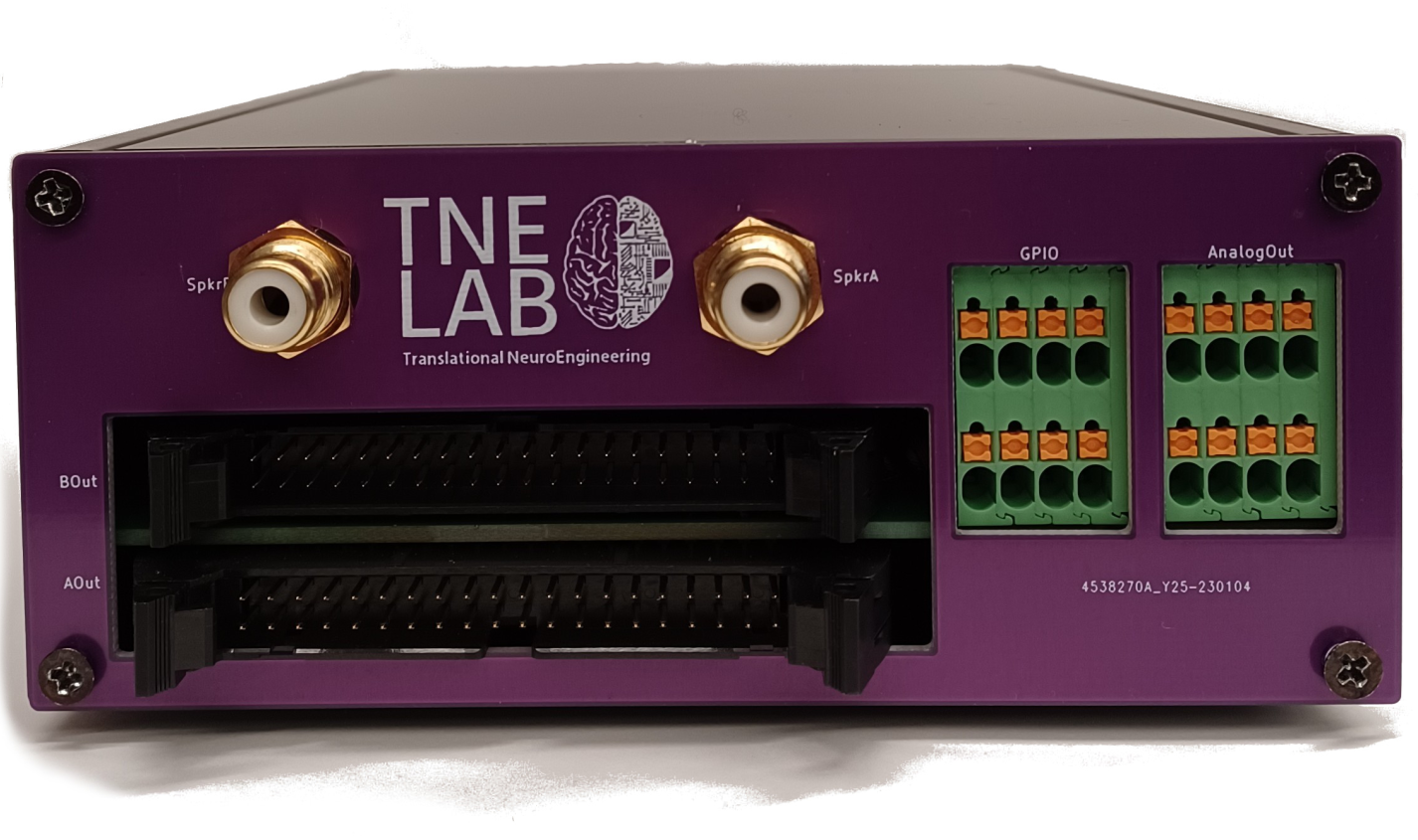

HardLabs

OSCAR

tne-lab·OSCAR·PCB/OSCAR_pcb_kicad/OSCAR.kicad_pcb

OSCAR PCB layout, top view — open source AVR/Arduino board by tne-lab

About the OSCAR PCB

OSCAR is an open source AVR/Arduino PCB design by tne-lab, published on GitHub under the MIT license. It is a 4-layer board measuring 155.6 × 120 mm, with 139 components from 15 distinct parts.

Its main chip is the A000067, from the AVR/Arduino family. Other key parts include the LTV-247, ULN2003ADRG3 and DAC8565IAPW. By type, the board carries 112 resistors, 16 ICs, 8 connectors and 2 capacitors.

From the project

OSCAR is an open-source controller for animal research that enables flexible control of a variety of industry standard hardware with platform-independent software. OSCAR offers millisecond latency with a flexible array of inputs and outputs at a fraction of the cost of commercial

OSCAR is an open-source controller for animal research that enables flexible control of a variety of industry standard hardware with platform-independent software. OSCAR offers millisecond latency with a flexible array of inputs and outputs at a fraction of the cost of commercial options. These features position OSCAR as a valuable option for improving consistency of behavioral experiments across studies.

OSCAR, from the project README
From the project README

Main components on the OSCAR

LTV-247ULN2003ADRG3DAC8565IAPW

OSCAR bill of materials (BOM)

139 components, 15 distinct parts — part numbers from the project's BOM.

QtyPartRefs
10
LTV-247
U1, U2, U3, U4, U7, U8, U9, U11 +2
5
ULN2003ADRG3
ULN2003A
U5, U6, U10, U12, U44
1
DAC8565IAPW
DAC8565
U45
2
BPJR03AUX
Speaker
J1, J2
2
XG4A-4035
40_Pin_Ribbon_Connector
J3, J4
1
54-00130
Barrel_Jack
J5
1
4435.0201
Breaker
J6
2
1841513
Conn_02x04_Top_Bottom
J7, J8
1
A000067
Arduino_Mega2560_Shield
XA1
1
C41851
0.1uF
C1
1
C387961
150nF
C2
32
RT0402FRE07383RL
383Ω
R1, R11, R12, R13, R14, R15, R26, R27 +24
64
RC0402FR-076K8L
6.7kΩ
R2, R3, R4, R5, R6, R7, R8, R9 +56
8
C25744
10kΩ
R97, R98, R99, R100, R101, R102, R103, R104
8
RC0402FR-072K67L
2670Ω
R105, R106, R107, R108, R109, R110, R111, R112

OSCAR design files

The KiCad project lives in the tne-lab/OSCAR repository on GitHub; these links point at the commit this page was built from.

OSCAR: common questions

What microcontroller does the OSCAR use?

The OSCAR is built around the A000067, from the AVR/Arduino family.

How big is the OSCAR PCB?

The OSCAR measures 155.6 × 120 mm, has 4 copper layers and is 4.69 mm thick.

How many components are on the OSCAR?

139 components, from 15 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the OSCAR design files?

From the tne-lab/OSCAR repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the OSCAR design in my own project?

Yes, under the terms of its MIT license, which tne-lab chose for the repository.

Can I test firmware for the OSCAR without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.

More boards in OSCAR

Similar boards
