Skibidi birthday is an open source PCB design by tobycm, published on GitHub under the MIT license. It is a 2-layer board measuring 90 × 50 mm, with 30 components from 10 distinct parts.
Other key parts include the USBLC6-2SC6 and CH334P. By type, the board carries 10 resistors, 6 ICs, 6 capacitors, 5 connectors, 1 fuse and 1 diode.
From the project
shhhhh
Happy birthday Kai!! I wanted to put some FPGA footprint stuff but its too advanced for me lol. Hope you enjoy this card gift.

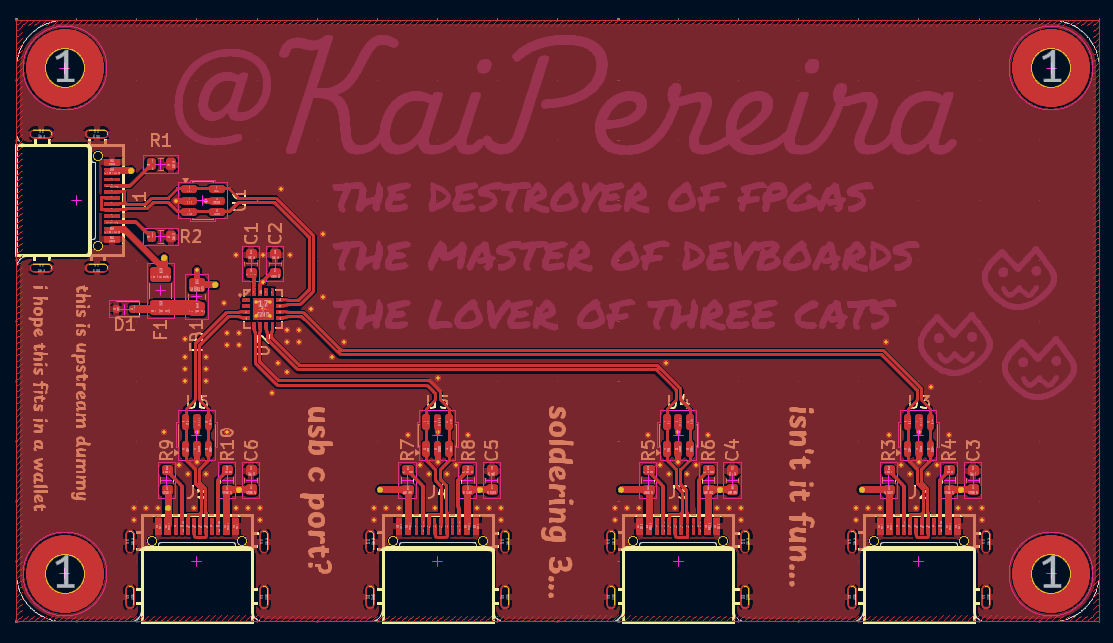

This is a USB 2.0 Hub, it doesn't need to have a case because the pcb itself is a birthday card, having a case would obviously hides the decorations and art on the pcb so it makes sense to not have a case designed.
[\[Blueprint\]](https://blueprint.hackclub.com/projects/13659) | [\[KiCanvas\]](https://kicanvas.org/?repo=https%3A%2F%2Fgithub.com%2Ftobycm%2Fskibidi-birthday%2Ftree%2Fmain%2Fpcb)
Main components on the Skibidi birthday
Skibidi birthday bill of materials (BOM)
30 components, 10 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 5 | USBLC6-2SC6 | SOT-23-6 | U1, U3, U4, U5, U6 |
| 1 | CH334P | QFN-16_L3.0-W3.0-P0.50-BL-EP1.7 | U2 |
| 5 | USB_C_RECEPTACLE_USB2.0_16P USB_C_Receptacle_USB2.0_16P | USB-C-SMD_12P-P0.50-H-F_TYPE-C-31-M-14 | J1, J2, J3, J4, J5 |
| 1 | C883135 2A | Fuse_1206_3216Metric | F1 |
| 1 | C82044 5V | D_SOD-523 | D1 |
| 1 | C85840 220Ω@100MHz | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | FB1 |
| 2 | 100N 100n | C_0603_1608Metric | C1, C2 |
| 4 | 10U 10u | C_0603_1608Metric | C3, C4, C5, C6 |
| 2 | 5.1K 5.1k | R_0603_1608Metric | R1, R2 |
| 8 | 56K 56k | R_0603_1608Metric | R3, R4, R5, R6, R7, R8, R9, R10 |
Skibidi birthday design files
The KiCad project lives in the tobycm/skibidi-birthday repository on GitHub; these links point at the commit this page was built from.
Skibidi birthday: common questions
How big is the Skibidi birthday PCB?
The Skibidi birthday measures 90 × 50 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Skibidi birthday?
30 components, from 10 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Skibidi birthday design files?
From the tobycm/skibidi-birthday repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Skibidi birthday design in my own project?
Yes, under the terms of its MIT license, which tobycm chose for the repository.
